OFNA Racing Titan Twin User Manual
Page 22
* Put the M4 nylon nut before assembly
for next step.

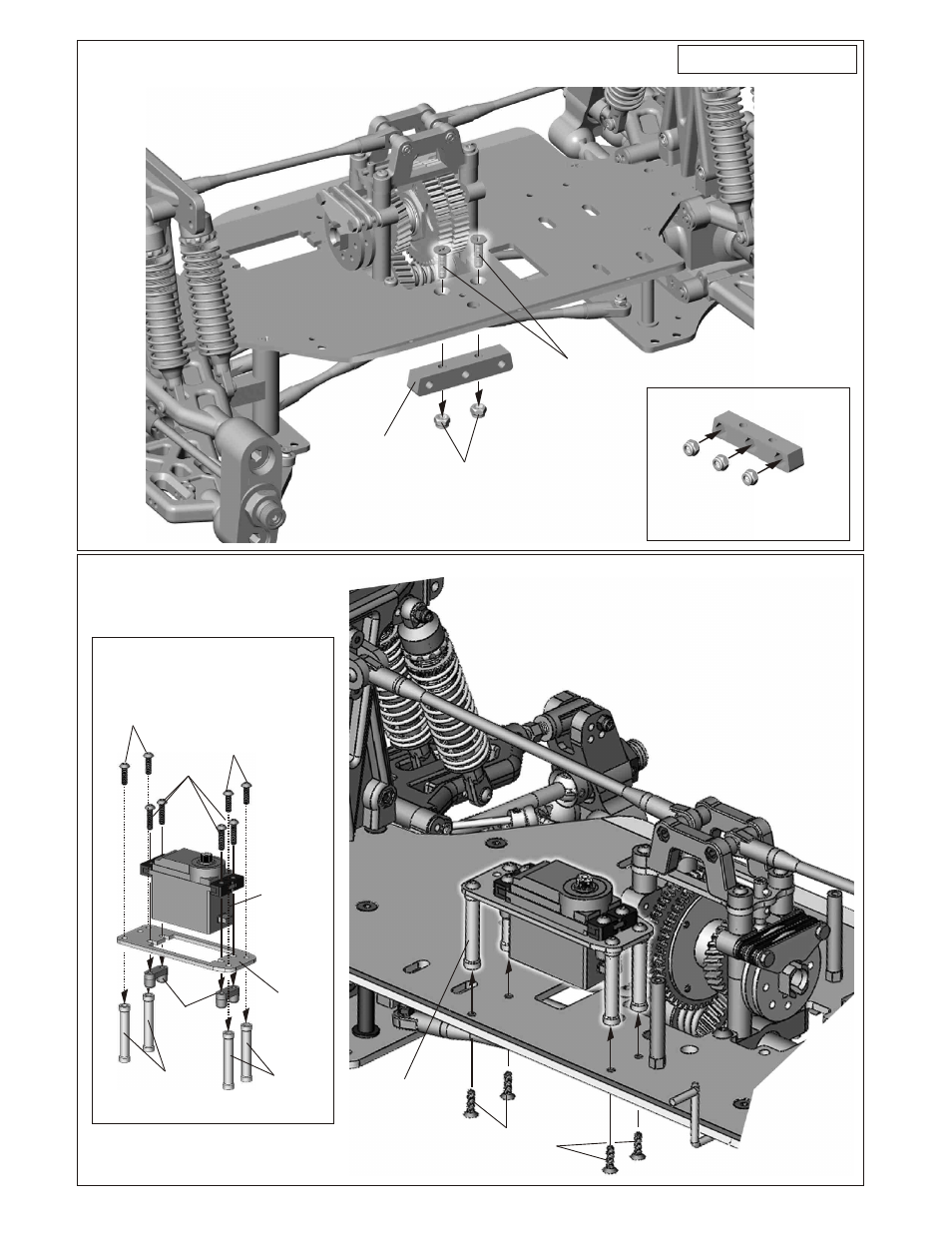

ASSEMBLY OF THE SIDE PLATE MOUNT
Side Plate
Mount ( Plastic )
M4 Nylon
Nut
M4x12
Flat Head
Hex Screw
Assembly of the right and left hand side
are the same.
J-27
Servo Post
3x10mm
Hex Screw
3x10mm
Hex Screw
3x10mm
Hex Screw
M-31
Radio Tray
ASSEMBLY OF THE FRONT
STEERING SERVO
Front Steering
Servo
3x10mm
Flat Head
Hex Screw
ASSEMBLY OF THE FRONT STEERING SERVO
ONTO CHASSIS
A-52
Radio Tray
Post
A-52
Radio Tray
Post
A-52
Radio Tray
Post
