OFNA Racing Titan Twin User Manual

Page 10

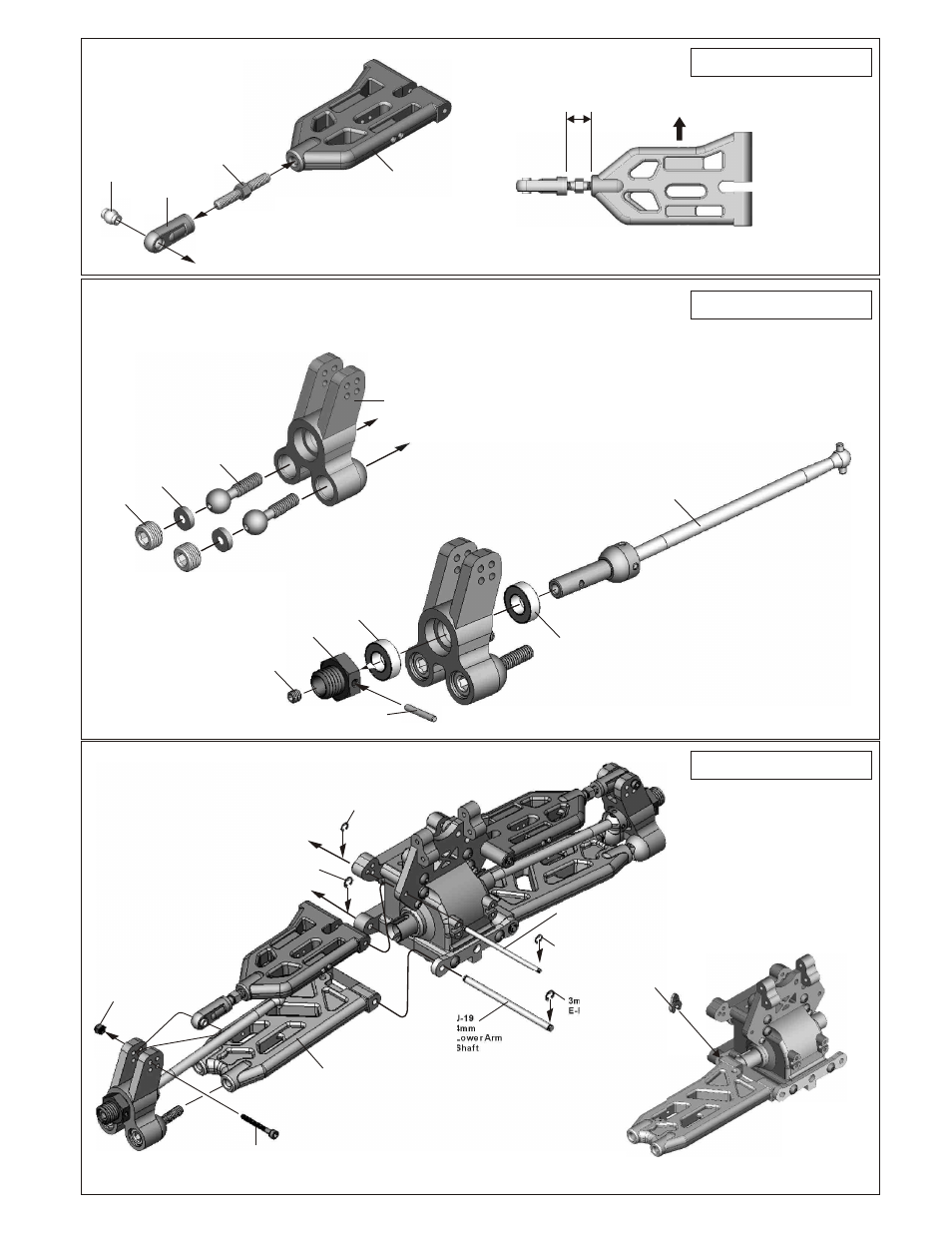

ASSEMBLY OF THE REAR UPPER ARMS

ASSEMBLY OF THE REAR WHEEL HUB

MP-01B
Rear Upper
Arm

* Leave 12.5mm.

Assembly of the left and right hand side
are the same.

Assembly of the right and lefthand side
are the same.

*Note: This direction to front.

MP-03
Font/Rear
CVD Shaft

G-25
7mm Ball

G-26
5x35mm
Tunebuckle

G-09
7mm
Plastic
Ball End

#306F
11mm
Ball & Screw

#306C
Rear Hub
( Ball Type )

#306D
Plastic Washer

# 306E
12mm
Alum.
Hex Screw

#267C-O
Wheel Hub

#267E
2.5x16.8mm
Pin

#267D
8x16mm
Ballbearing

J-19
4mm
Lower Arm
Shaft

3x25
Hex Screw

M3
Nylon Nut

2.5mm
E-Ring

3mm
E-Ring

ASSEMBLY OF THE REAR HUB
AND SUSPENSION ARMS
INTO GEAR BOX

5x5mm
Set Screw

*Builds two arms for left and right hand side.

*Builds two hubs for left and right hand side.

*Insert the rear drive shaft
into cap joint before assembly
the rear lower arm.

MP-02
Rear
Lower Arm

*Put the plastic clips
into lower arm shaft.

MP-07
3x64.4mm
Shaft

#306
Plastic Clips
