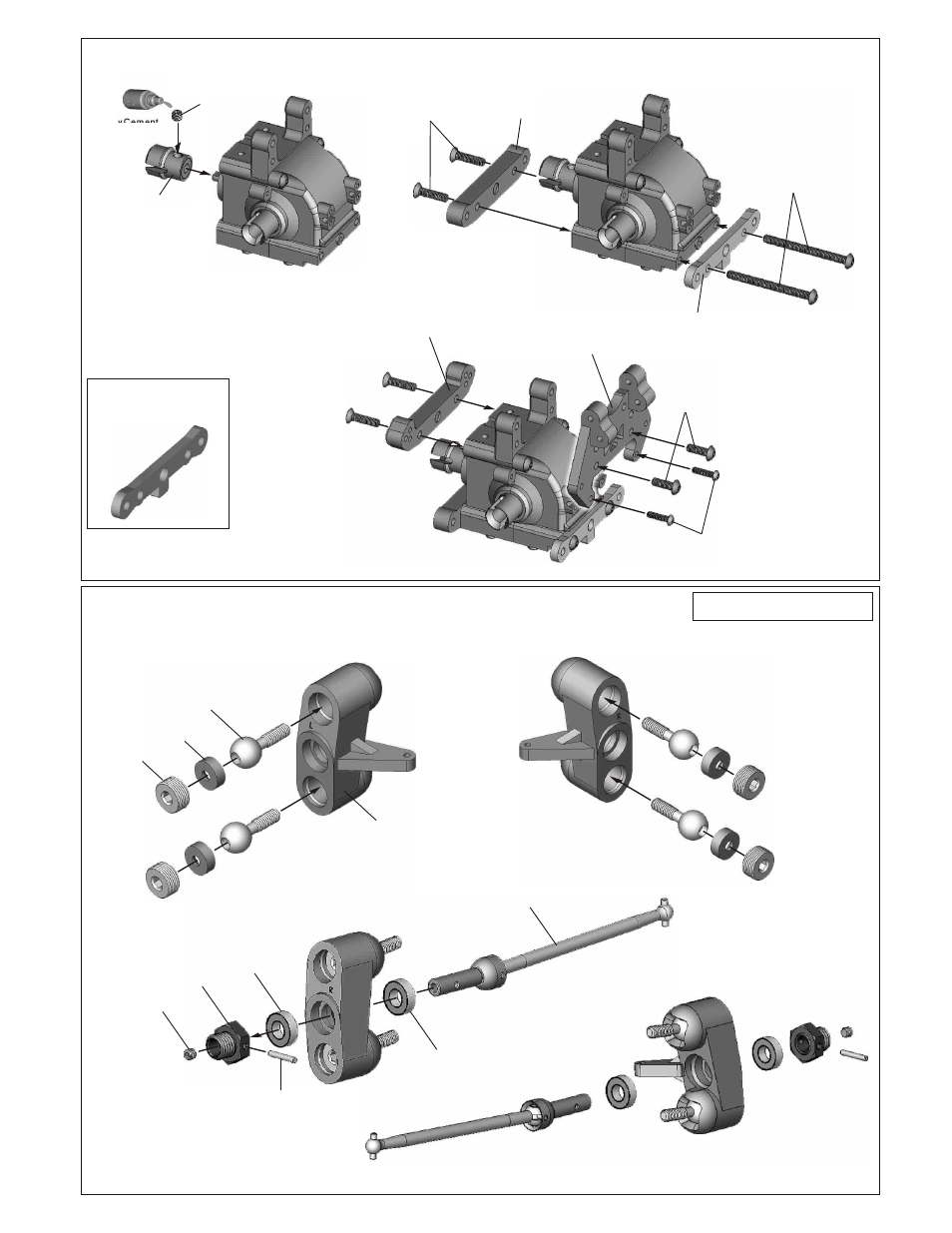

ASSEMBLY OF THE FRONT ARMS HOLDER

4X12mm
Hex Screw
( Small Head)

4X45MM
Hex Screw
( Small Head)

J-18
Front Lower Arm
Holder (Front/Alum.)

Screw Cement

5x4mm
Set Screw

MW-02
Cap Joint

4x16mm
Flat Head
Hex Screw

J-11
Front Lower Arm
Holder (Rear/Plastic)

J-11
Front Upper Arm
Holder ( Rear/ Plastic)

3x12mm
Hex Screw

M-06
Upper Arm
Holder

OPT:JS-02
CNC 7075
Front Lower Arm
Holder

ASSEMBLY OF THE FRONT KNUCKLE ARMS

G-07
Plastic Washer

GS-05
14mm
Steering Ball

GS-06
14mm
Alum. Nut

( Left-Side )

( Right- Side )

GS-03
Ball type
Knuckle Arms

Screw Cement

OPT:JS-02
CNC 7075
Front Lower Arm
Holder

MP-03
Front/Rear CVD

#267D
8x16mm
Ballbearing

#267E
2.5x17mm
Pin

#267C-O
8mm
Alum.
Wheel Hub

5x4mm
Set Screw

* Make two gear boxs for front and rear

Assembly of the right and left hand side
are the same.
