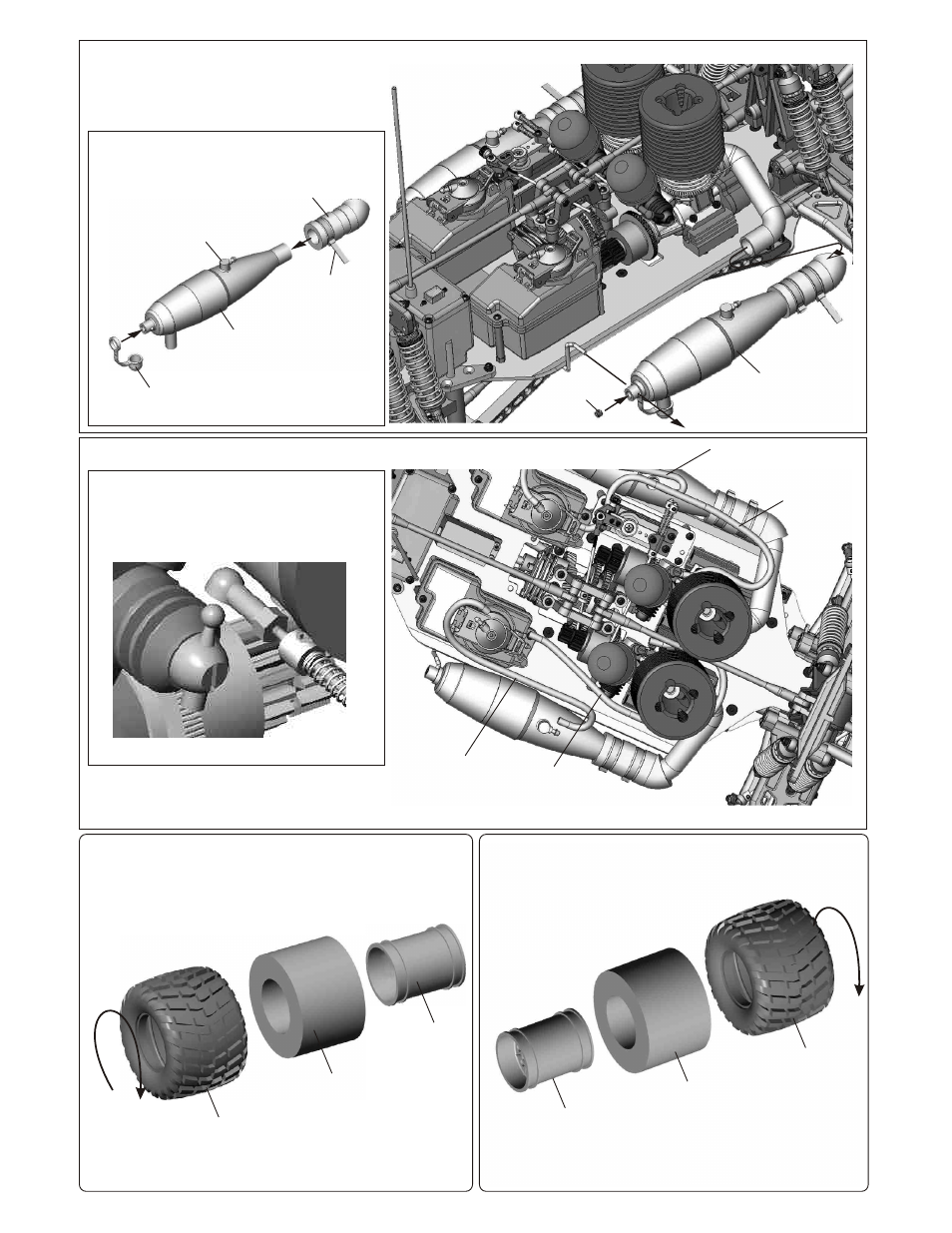

ASSEMBLY OF THE TIRES AND WHEELS OF THE
RIGHT HANDSIDE

ASSEMBLY OF THE TIRES AND WHEELS OF THE
LEFT HANDSIDE

* Made two tires for the right handside.
Made the both tires are in the same direction.

* Made two tires for the left handside.
Made the both tires are in the same direction.

B-15
Monster Tires

B-17
Monster Tire
Inner Sponge

B-16
Monster Tire
Wheel

* Snap the throttle ball end into
the valve ball of the

carburetor

ASSEMBLY OF THE MUFFLER

5x4mm Set
Screw

Muffler Assembly

HL-36
Silicone
Tube

A-82
Nylon Straps

#313B
Silicone Cap

M-01M
Tuned Pipe
(Polished)

ASSEMBLU OF THE TUNED PIPE

ASSEMBLY OF THE FUEL TUBE AND PRESSURE TUBE

*Connect to
carburetor and
Fuel Tank pressure
nipple.

#159
Fuel Tube

*Connect to fuel tank
pressure nipple and
muffler pressure nipple.

Pressure Nipple
