Page 16

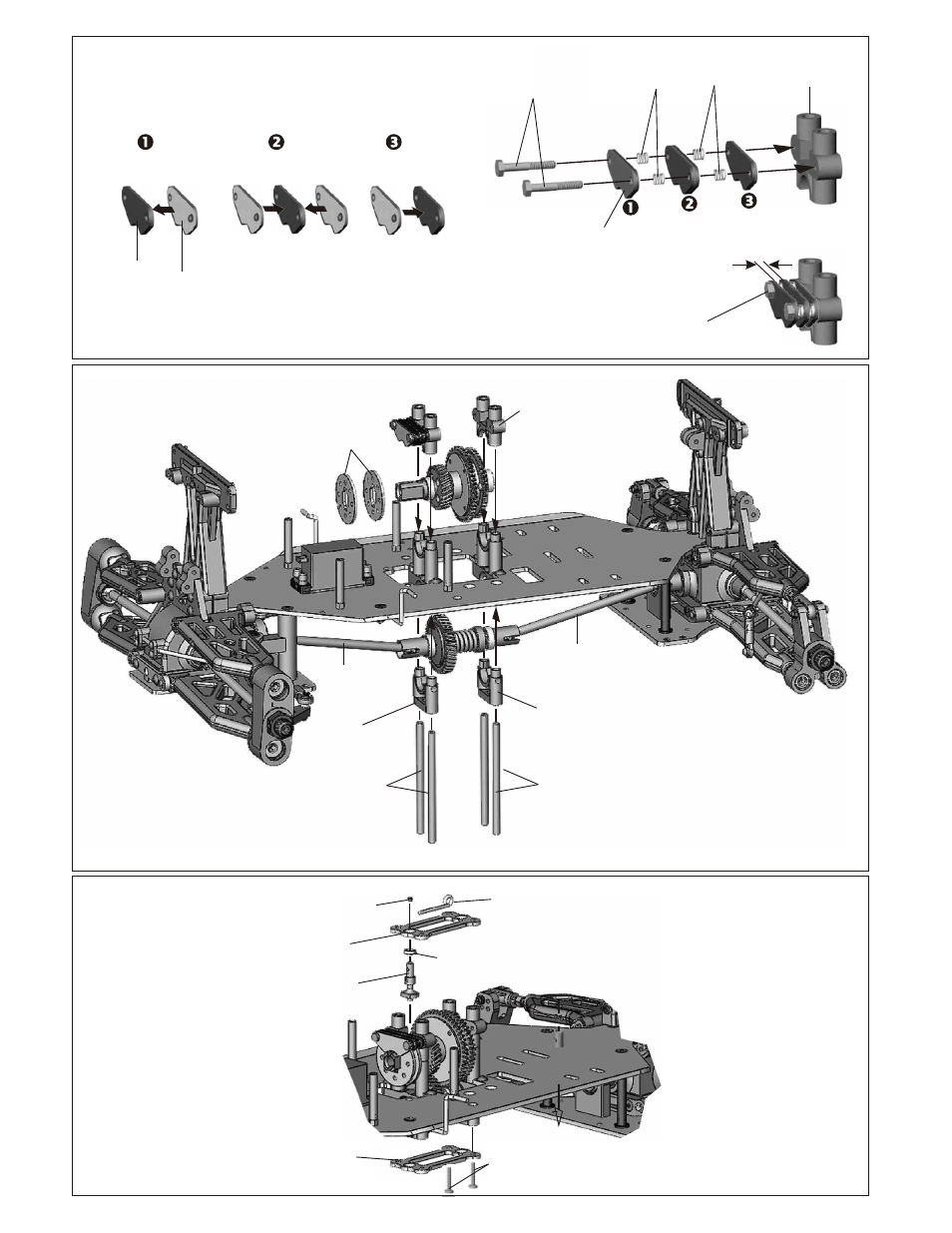

ASSEMBLY OF THE BRAKE PADS

G-06
Brake Pad

G-06A
Brake Pad
Linings

Front

Middle

Rear

* Remove the double-side tape
before assembly

J-40A
Brake Pad
Adjustment Screw

Brake Pad
Assembly

J-40
Brake Pad
Spring

Less 2.5mm

* Adjust the adjustment screw
to keep the space of the brake
pads less 2mm.

J-36
Center Diff.
Mount

ASSEMBLY OF THE 2 SPEED TRANSMISSION INTO CENTER MOUNT

G-05
Brake Disk

J-36
Center Diff.
Mount

MW-04
Center
Drive Shaft

* Put the brake disk
into the brake cap joint
before assembly the
center diff. mount.

M-24
Center
Diff. Mount
Post

* Put the center diff. mount post
through the center diff. mount.

* Put the center drive shaft befor
assembly the slipper clutch unit.

ASSEMBLY OF THE BRAKE CAM
AND CENTER DIFF. MOUNT PLATE

A-21A
Brake Cam

Plastic
Bushing

3x15mm
Screw

M-32
Alum. Center
Diff. Plate

3x3mm
Set Screw

A-17A
Brake Level

*Screw in 3x15mm screw
for temple use.
