OFNA Racing Titan Twin User Manual
Page 13

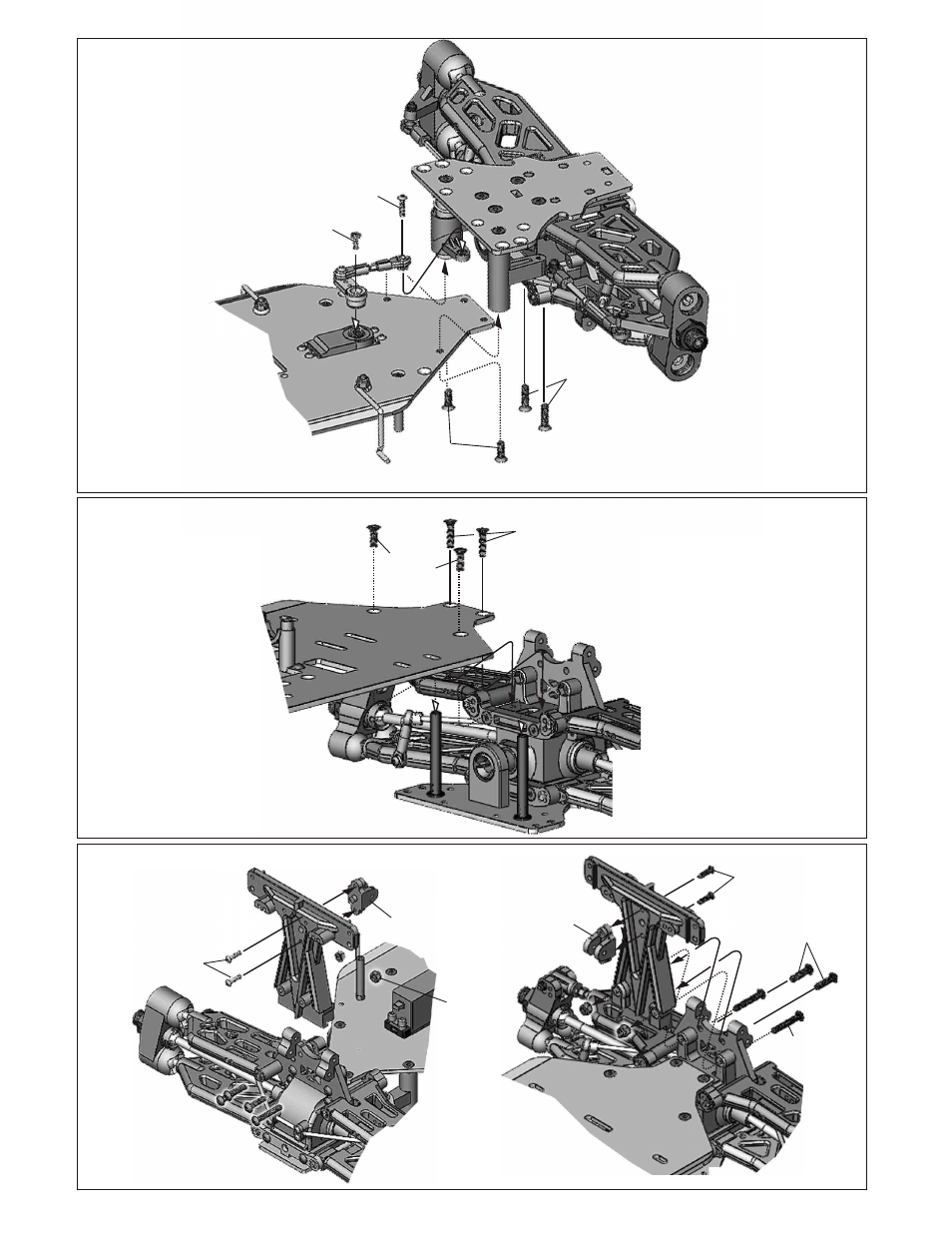

ASSEMBLY OF THE FRONT GEAR BOX
ONTO CHASSIS.
ASSEMBLY OF THE REAR GEAR BOX
ONTO CHASSIS
*The picture show are bottom view.
Screw
* Use the screw provided
from you servo.
3x10mm
Hex Screw
4x16mm
Hex Screw
4x10mm
Flat Head
Hex s
4x16mm
Flat Head
Hex Screw
4x10mm
Flat Head
Hex Screw
J-36
Center Brace
Mount (Front)
J-36
Center Brace
Mount (Rear)
3x15mm
Hex Screw
3x15mm
Hex Screw
M4
Nylon Nut
M4
Nylon Nut
4X25
Hex Screw
4x15mm
Hex Screw
ASSEMBLY OF THE FRONT AND REAR SHOCK STAY
