upgrading and servicing the pc 105
•

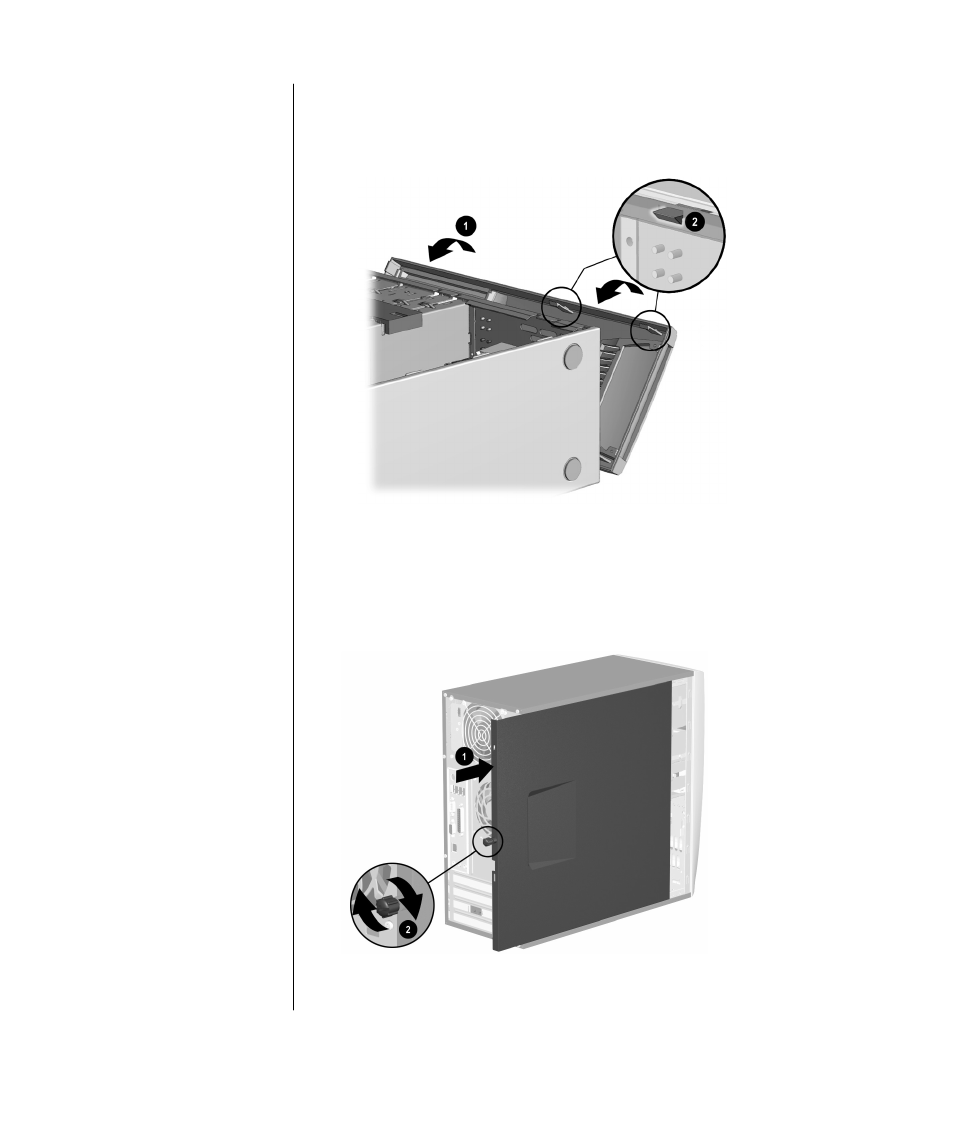

To replace the front bezel on the 8000 series, lay the chassis on the side with
the open side up. Place the front bezel in the correct position. Ensure the
slots (2) are aligned correctly, and rotate the bezel toward the chassis (1)
until it snaps into place.
replacing the front bezel on the 8000 series
2 For either the S0000 or 8000 series, place the side access panel in the proper
position on the chassis and slide it into place (1). Ensure that the hole for the
thumbscrew(s) align with the hole in the chassis (2), and replace the
thumbscrew(s).
replacing the side access panel on the S0000 series
