reconnecting the optical drive cables
NOTE: An optical drive for the 8000 series may include a sound cable.
Connect this cable also.
4 Complete the procedure described in “reassembling the pc” on page 104.
5 Turn on the PC.
reassembling the diskette adapter
To replace or add a new diskette (floppy) drive on the 8000 series, you need to
reassemble the adapter around the diskette drive. (The S0000 series does not
need an adapter.)
1 Lower the diskette drive into the adapter (1). Ensure that the holes are
aligned, and replace the screws (2) that secure the diskette drive to the
adapter.
2 Press inward on each side of the bracket brace (3), and lower the bracket until
it snaps into place over the diskette drive. Ensure that the guide screws (4) are
installed in the adapter.
3 Return to “replacing or adding a drive” on page 95, and begin with step 1.
2
2
1
3
2
4

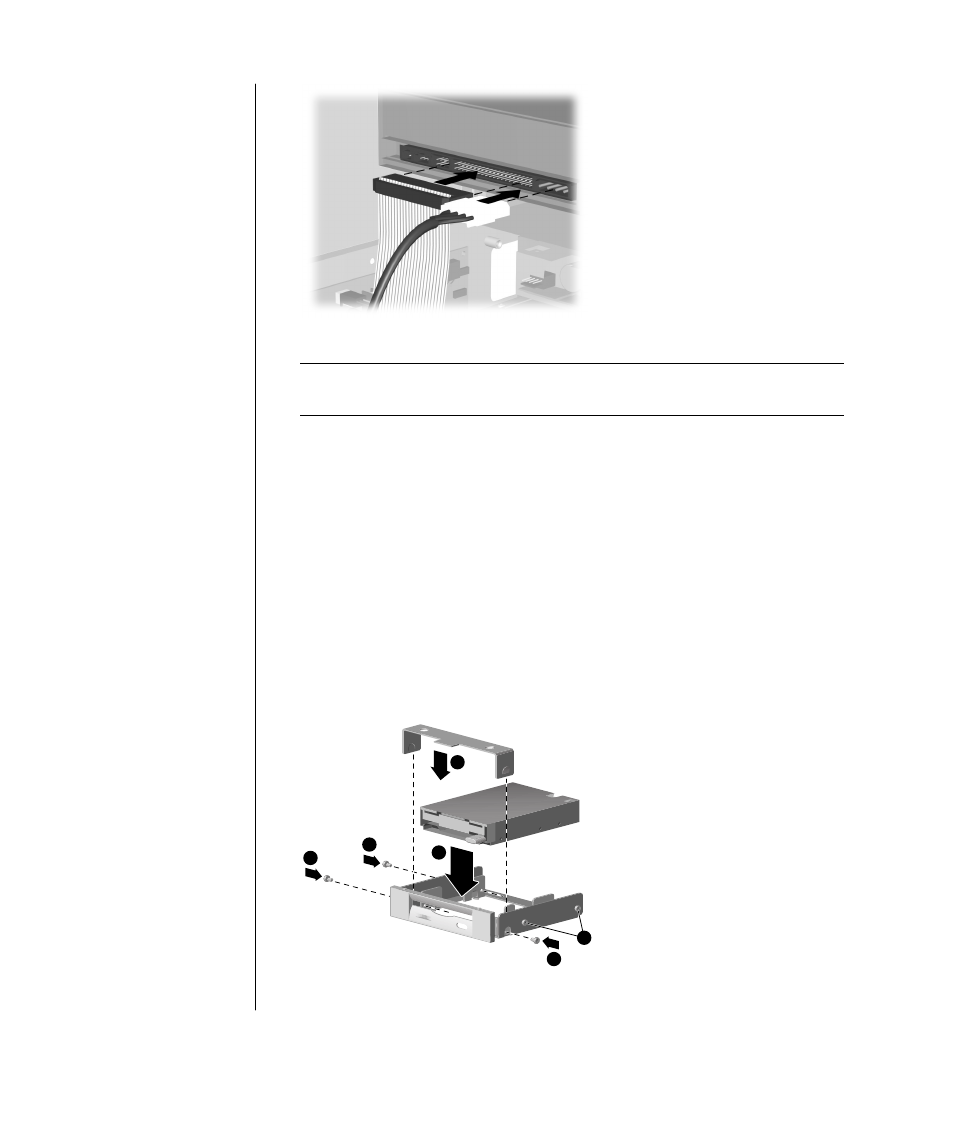

replacing the diskette drive adapter on the 8000 series
