104 user’s guide

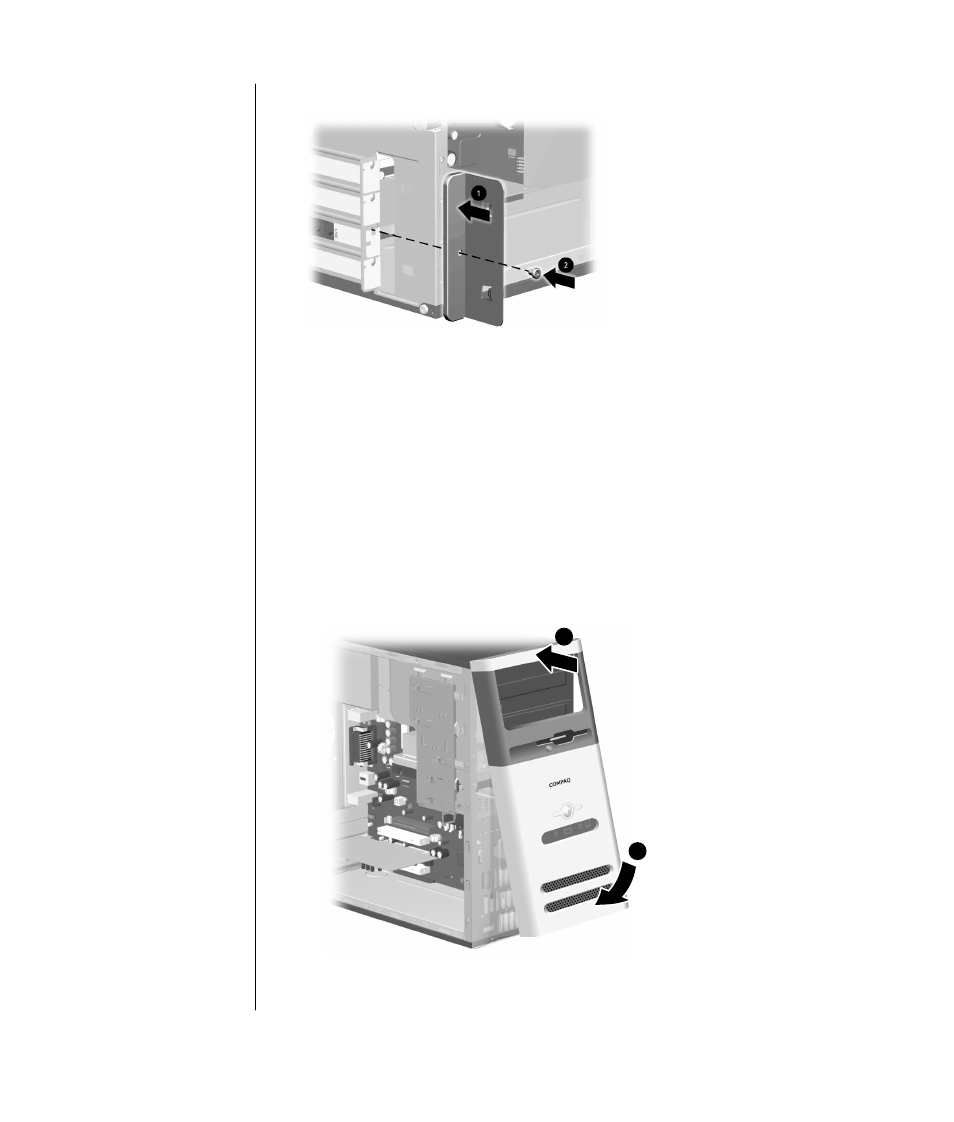

4 For the S0000 series, replace the expansion cover bracket (1) and screw (2).
replacing the expansion bracket cover on the S0000 series
5 For both the S0000 and 8000 series, complete the procedure described in
“reassembling the pc” on page 104.
reassembling the pc
1 Replace the front bezel by following the method appropriate for your PC
model.
•
To replace the front bezel on the S0000 series, position the chassis in the
upright position. At an angle, align the top of the front bezel with the top
slots of the chassis (1) so that the front bezel hooks onto the chassis, and
then press the bottom end of the bezel to the chassis until it snaps into
place (2).
1
2
replacing the front bezel on the S0000 series
