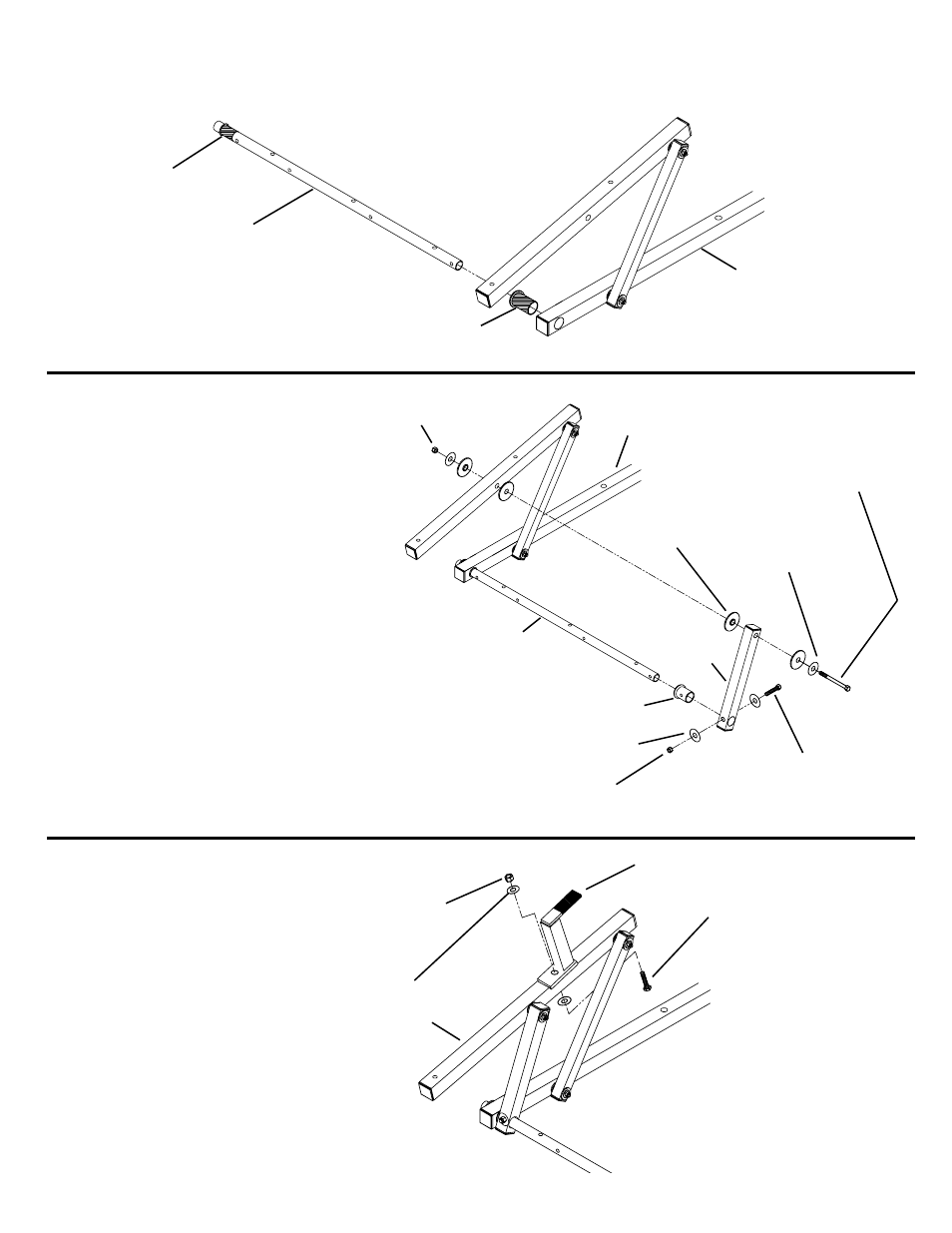

STEP 7
Use the supplied Lubricant and coat the pre-assembled Black Plastic Bushing (A). Insert Front Drive Tube (B) into the larger
Black Plastic Bushing (C) in the Front Rotation Assembly (D) so that the Black Bushings are fully seated.
(A)
(B)
(C)
(D)
STEPS 8 & 9
Slide a White Plastic Bushing (A) onto the
Front Drive Tube (B) until it is butted up to
the Lower Rotation Tube (C). Align holes
in the tube and bushing. Slide the Pivot
Arm (D) over the tube and bushing, align
holes, and install the 3/8-16 x 2-1/4"
Fastener. Next install the 5/16-18 x 4-1/2"
Fastener with four Flat Plastic bushings
(E) as shown.
(A)
(B)
(D)
* 3/8-16 x 2-1/4"
Hex Hd. Bolt
(2) 3/8" Flat Washer
3/8-16 Nylon Lock Nut
5/16-18 x 4-1/ 2"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
5/16-18 Nylon
Lock Nut
(E)
(C)
NOTE: Tighten all Marked (*)
fasteners to 200 in. lbs.
STEP 10
Place the Ladder Support (A) on top of
the Connecting Tube (B) and install the
5/16-18 x 2-3/4" Fastener. (A)
(B)
5/16-18 x 2-3/4"
Hex Hd. Bolt
(2) 5/16" Flat
Washer
5/16-18 Nylon
Lock Nut
7
