WEATHER GUARD Model 255 EZ-GLIDE® Drop Down Kit, Full, Driver Side User Manual
Page 4

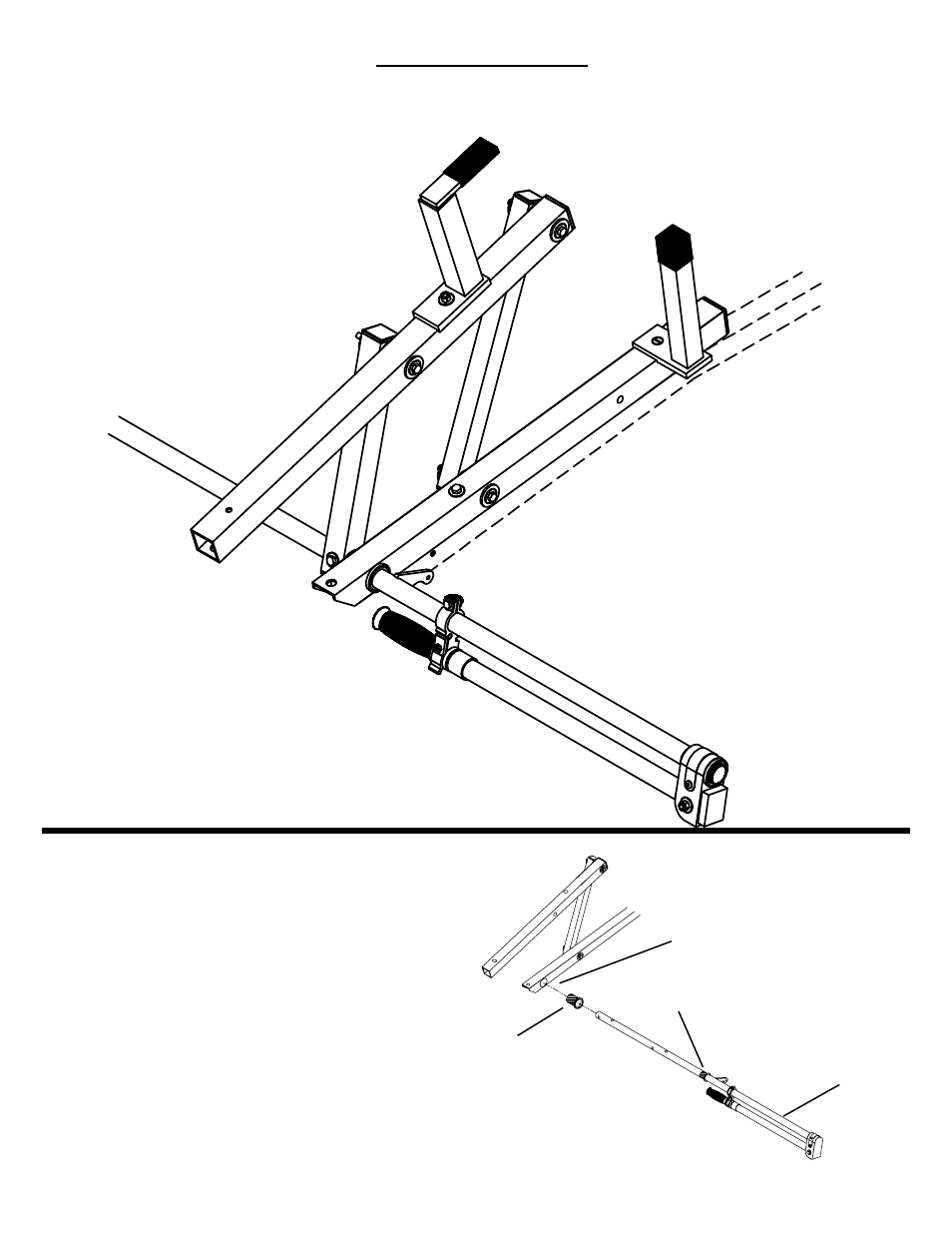

REAR ROTATION ASSEMBLY
4
STEP 1
Use the supplied lubricant and coat the pre-assembled Black Plastic
Bushing (A). Insert Rear Drive Tube/Handle Assembly (B) into the
Larger Black Plastic Bushing (C) in the Rear Rotation
Assembly (D) so that the Black Bushings are fully seated.
(A)
(B)
(C)
(D)
S
NOTE: Large Black Plastic Bushings
are keyed to fit the Cross-Members
N
