3

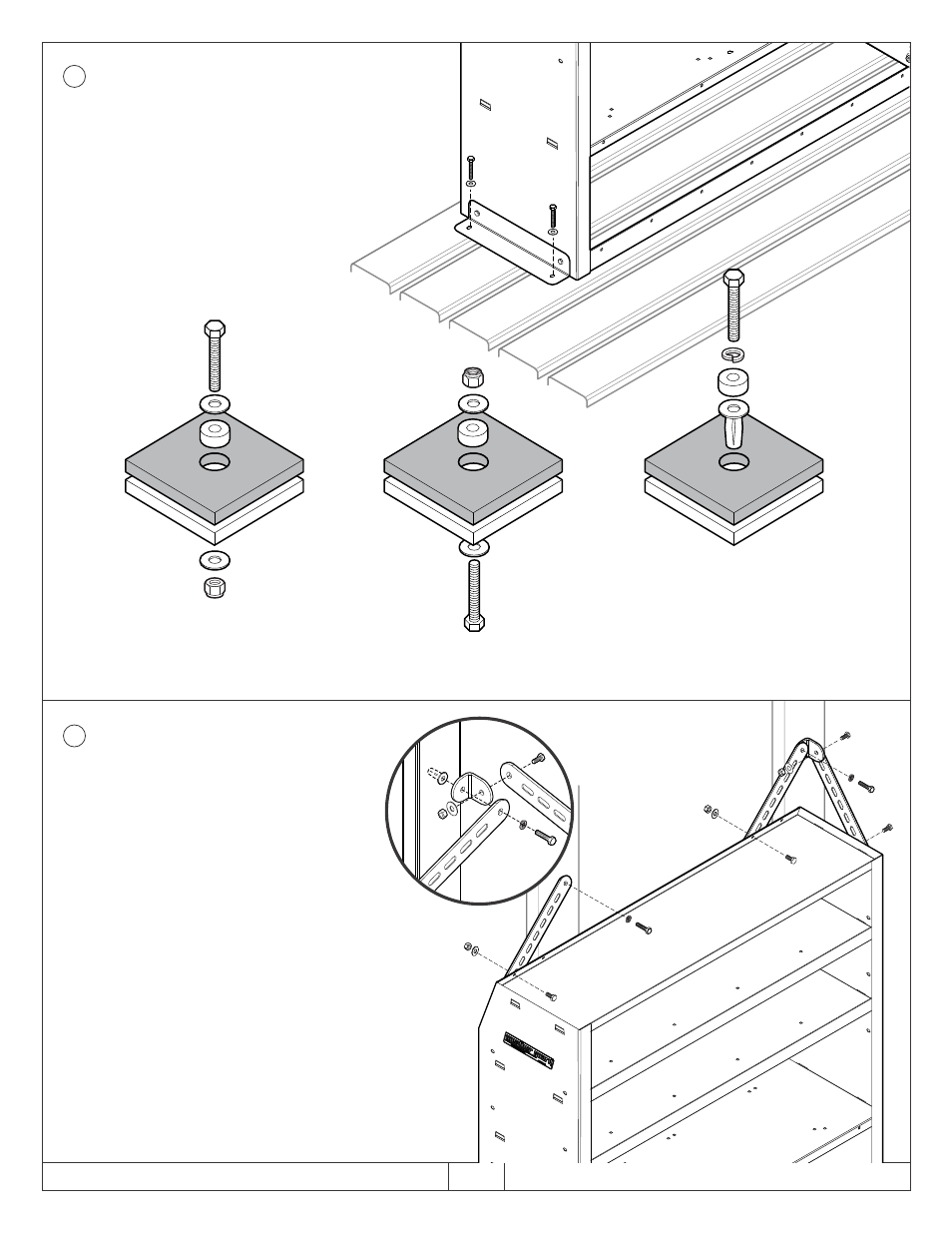

Move the Shelf back into position. Fasten Shelf
to van floor using four (4) 1/4-20 x 1-1/4" Hex
Head Bolts, 1/4" Flat Washers, Floor Mounting
Spacers (if applicable), second set of 1/4" Flat
Washers and 1/4-20 Nylon Lock Nuts. (See
example bolting solutions below).
NOTE: One (1) Blind Fastener and Lock Washer
have been provided in case through-bolting is
impossible due to heat shields, floor channels,
fuel lines, etc. If Blind Fastener installation is
necessary, redrill the 5/16" mounting holes
with 13/32" drill bit. See INSTALLATION
INSTRUCTIONS FOR BLIND FASTENERS
on page 5.
4
Three (3) Mounting Straps and Mounting Strap
Angles are provided. The Mounting Straps
can be bent to any shape and/or used with the
Mounting Angles. The Mounting Straps should be
attached to the upper portion of the Welded Shelf
in a manner that would minimize movement of
the unit both front to rear and side to side. Attach
the Mounting Straps to the Welded Shelf through
existing holes (or drill new holes using a 5/16"
drill bit) and fasten with three (3) 1/4-20 x 5/8"
Hex Head Bolts and 1/4-20 Nylon Lock Nuts.
Fasten the other end of the Mounting Straps
by installing two to three (2-3) Blind Fasteners
in the wall or wall ribs at the Mounting Strap
locations by pre-drilling 1/8" holes and then re-
drill the holes with a 13/32" drill bit. Set the Blind
Fasteners in the holes per the INSTALLATION
INSTRUCTIONS FOR BLIND FASTENERS on
page 5.
Realign the Mounting Straps/Mounting Strap
Angles on top of the Blind Fasteners and secure
them to the wall or wall rib using two to three
(2-3) 1/4-20 x 3/4" Hex Head Bolts and 1/4"
Lock Washers.
INSTALLATION IS COMPLETE.
TOP DOWN INSTALLATION THROUGH
FLOOR MAT AND VAN FLOOR
NOTE: The floor bolting
solution could be a variation
on any of these three examples
with or without the floor mat.
BOTTOM UP INSTALLATION THROUGH
FLOOR MAT AND VAN FLOOR
BLIND FASTENER INSTALLATION THROUGH
FLOOR MAT AND VAN FLOOR (SEE PAGE 5)
