WEATHER GUARD Model 96142-3-01 Screen Bulkhead, Steel, Standard/High-Roof, RAM ProMaster - Manual (Page 6)

INSTALLATION INSTRUCTIONS

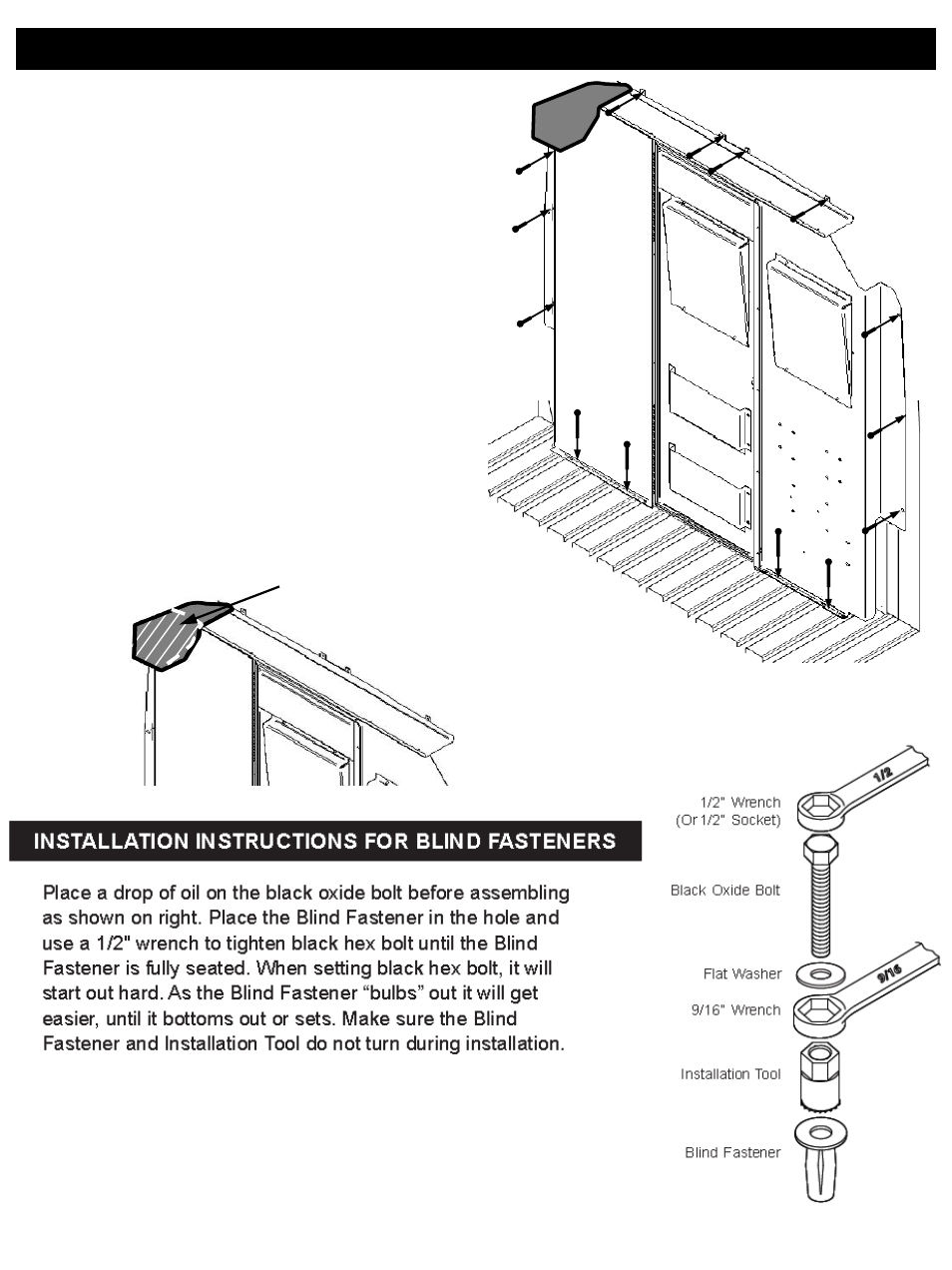

STEP 9. Fasten Bulkhead to van floor using four
(4) 5/16-18 x 2" Hex Head Bolts, 5/16" Flat
Washers, and four (4) Floor Mounting Spacers.
STEP 11. Bend the tabs on the header panel to
sit flush against the roof panel. install using four
(4) 1/4-14 x 3/4
” hex head thread-cutting bolts
into the roof panel.
STEP 11. Re-check all fasteners and tighten
them.
STEP 12. If mounting shelf units next to the
bulkhead, the foam block on the driver’s side will
need to be trimmed flush to the bulkhead.
Discard the trimmed section.
Do not remove the entire foam block.
The side airbag is located behind it.
Part No. 24-0315 08/13
6
6
Trim and Discard
STEP 9
STEP 10
STEP 8
STEP 8
STEP 9
Part No. 24-0315 Rev 1 09/13
