WEATHER GUARD Model 96142-3-01 Screen Bulkhead, Steel, Standard/High-Roof, RAM ProMaster - Manual (Page 3)

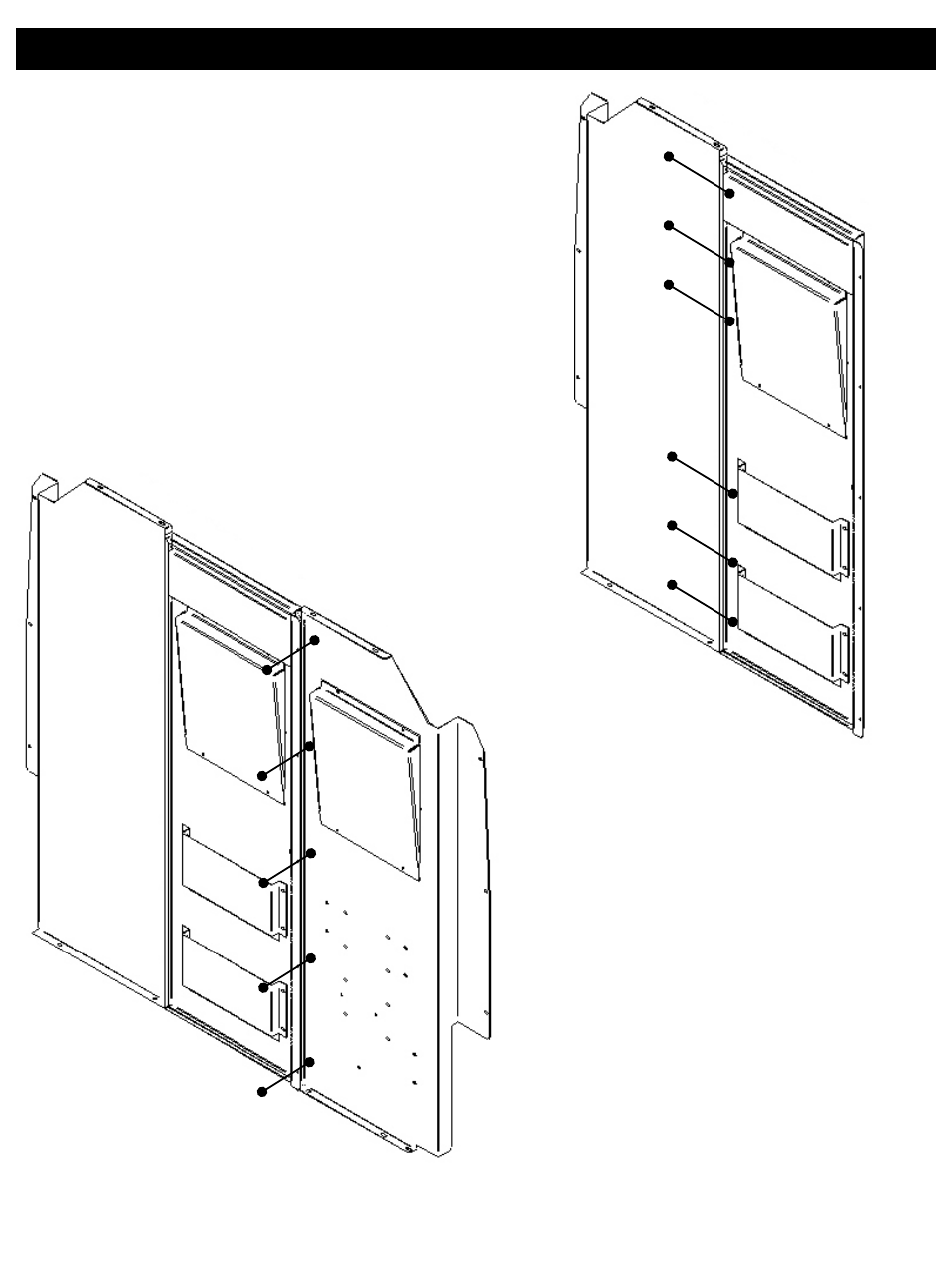

STEP 2. Attach Driver Side Panel to Center
Panel with both panels flush to the bottom using
six (6) ¼-
20 x 5/8" hex head bolts, ¼” flat
washers, and ¼-20 lock nuts.
ASSEMBLY INSTRUCTIONS
STEP 3. Attach Passenger Side Panel
to Center Panel with both panels flush to
the bottom using five (5) ¼-20 x 5/8" hex
head bolts, ¼” flat washers, and ¼-20
lock nuts.
NOTE: Not all mounting holes will be
used on either of the vertical sides
of the Center Panel. Extra mounting
holes are for the swing door option
available for this Bulkhead.
DO NOT FULLY TIGHTEN
FASTENERS AT THIS TIME, PARTS
MUST STILL MOVE IN SLOTS.
3
Part No. 24-0315 Rev 1 09/13
