INSTALLATION INSTRUCTIONS

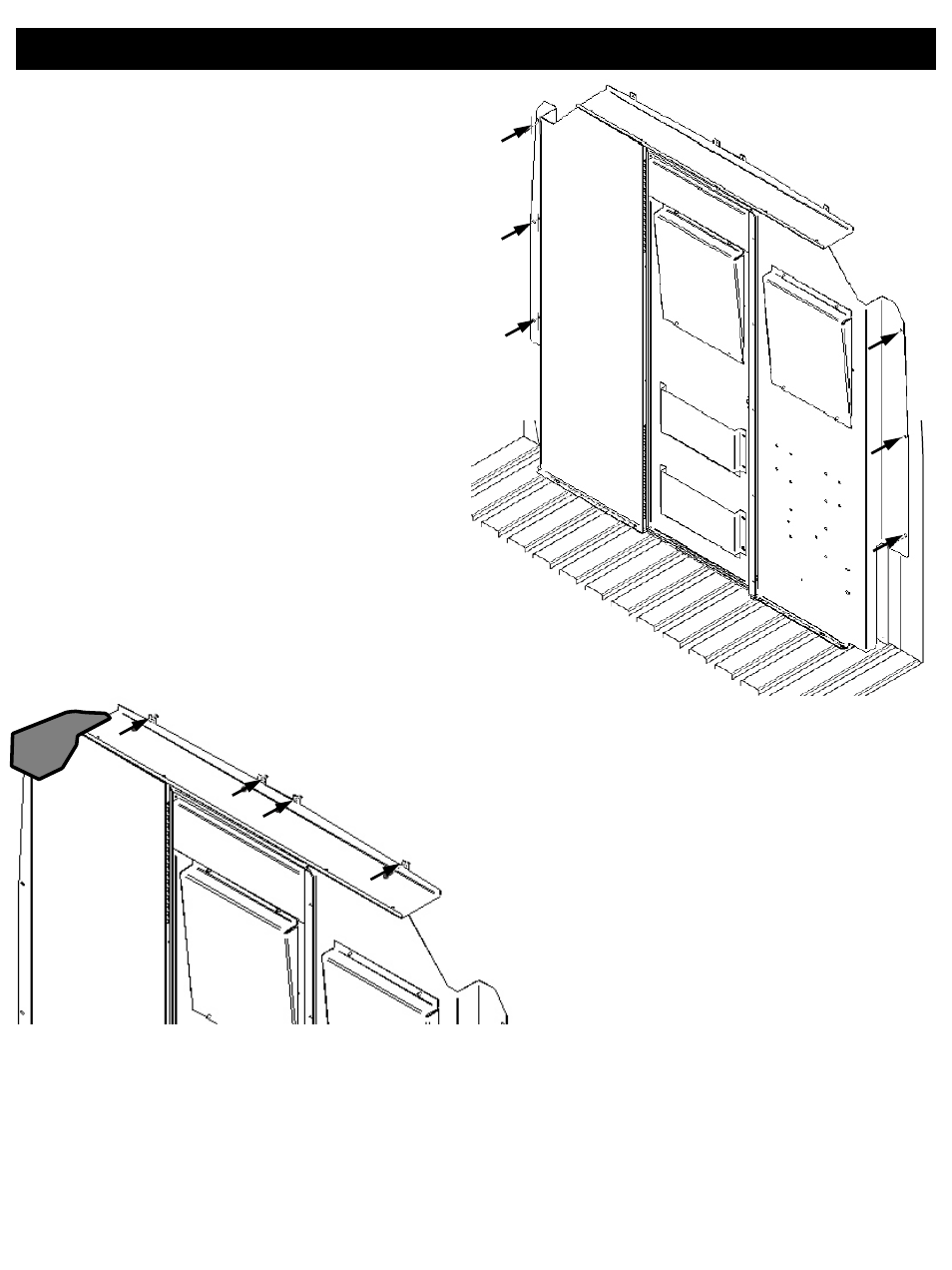

STEP 6. With the Bulkhead against the
B-Pillar trim, use a marker or pencil and mark the
six Bulkhead side holes on the B-pillar trim. Move
the Bulkhead out of the way. Drill a pilot hole with
an 1/8" drill bit. Re-
drill the hole with a 3/8” bit for
the blind fasteners.
The
½” thick Mounting Spacers are required.
Cut the B-pillar trim with a 1" hole saw, allowing
½” Mounting Spacers to rest against the metal of
the B-pillar. Install six (6) ¼-20 blind fasteners.
See INSTALLATION INSTRUCTIONS FOR
BLIND FASTENERS on page 6.
STEP 8. Re-position the bulkhead and install using six (6) 1/4-20 x 1-
1/4” hex head bolts
and the six (6) ½” Mounting Spacers into the B-pillar blind fasteners.
STEP 7. With the Bulkhead against the
B-Pillar trim, use a marker or pencil and mark
the four Bulkhead header holes on the roof
panel. Move the Bulkhead out of the way. Drill a
pilot hole with an 1/8" drill bit. Cut the roof trim
with a knife or 1" hole saw if necessary.
5
Part No. 24-0315 Rev 1 09/13
