Page 4

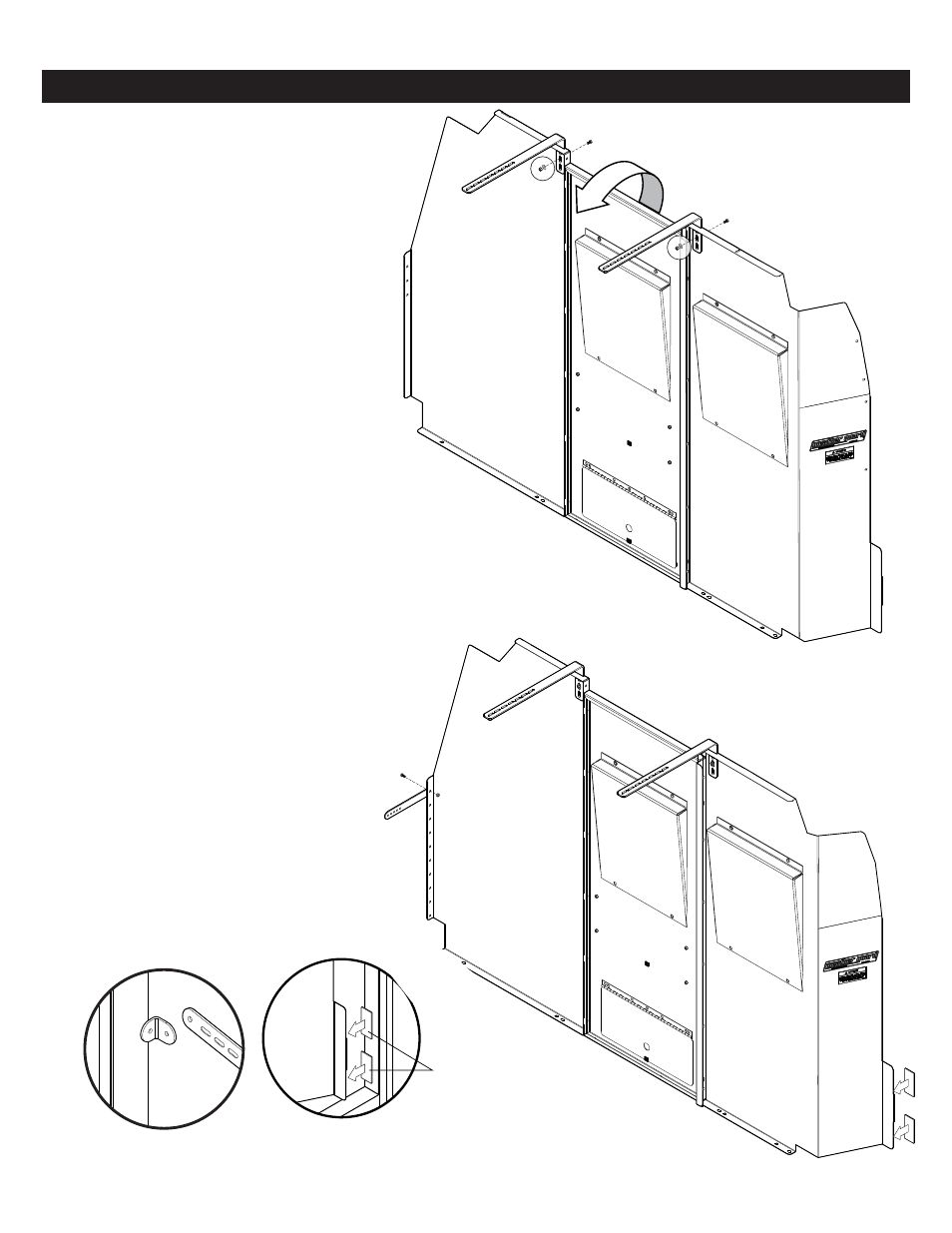

STEP 5: Attach the Driver Side Attachment

Brackets to Driver Side Panel using 1/4-

20 x 5/8" Hex Head Bolt and 1/4-20 Nylon

Lock Nut.

NOTE: Use holes that best align with wall

or wall rib for your van model.

Attach the 1x4 Foam Pads to the Bulkhead

where they come in contact with the lower

B-Pillar.

Assemble two mounting steps by attaching

a mounting strap to a mounting angle with

a 1/4-20x 3/4" washer head bolt and a lock

nut. Mount one strap to the driver's side

and passenger's side panels.

INSTALLATION INSTRUCTIONS

1x4 Foam Pads

STEP 4: Tilt assembled Bulkhead away

from van roof and slide in two (2) Roof
Mount Brackets to Bulkhead. Using two
(2) 1/4-20 x 5/8" Hex Head Bolts, 1/4-20
Nylon Lock Nuts and 1/4" Flat Washers,
attach brackets to panels. Leave fasteners
loose for easier adjustment during final
installation.

Part No. 24-0306 REV. D ECN 5282 03/13)

1x4" FOAM PADS

This manual is related to the following products:

Model 96101-3-01 Window Bulkhead, Full-Size, Ford, GM
