Satellite Slide Tank - Manual (Page 12)

your slide-in unit into service. In addition,
check the 15 amp system fuse to make
sure it has not been damaged during
shipment (Figure 2.5).
SETUP
Figure 2.5 System
Vacuum / Pressure Gauge Setup
The vacuum / pressure gauge on your
slide-in unit comes disassembled to
prevent damage during shipping. Simply
thread the gauge into the threaded hole
in the primary shut-off cover. Seal the
gauge threads by using Teflon tape,
Teflon thread sealant, or any other good
quality thread sealant.

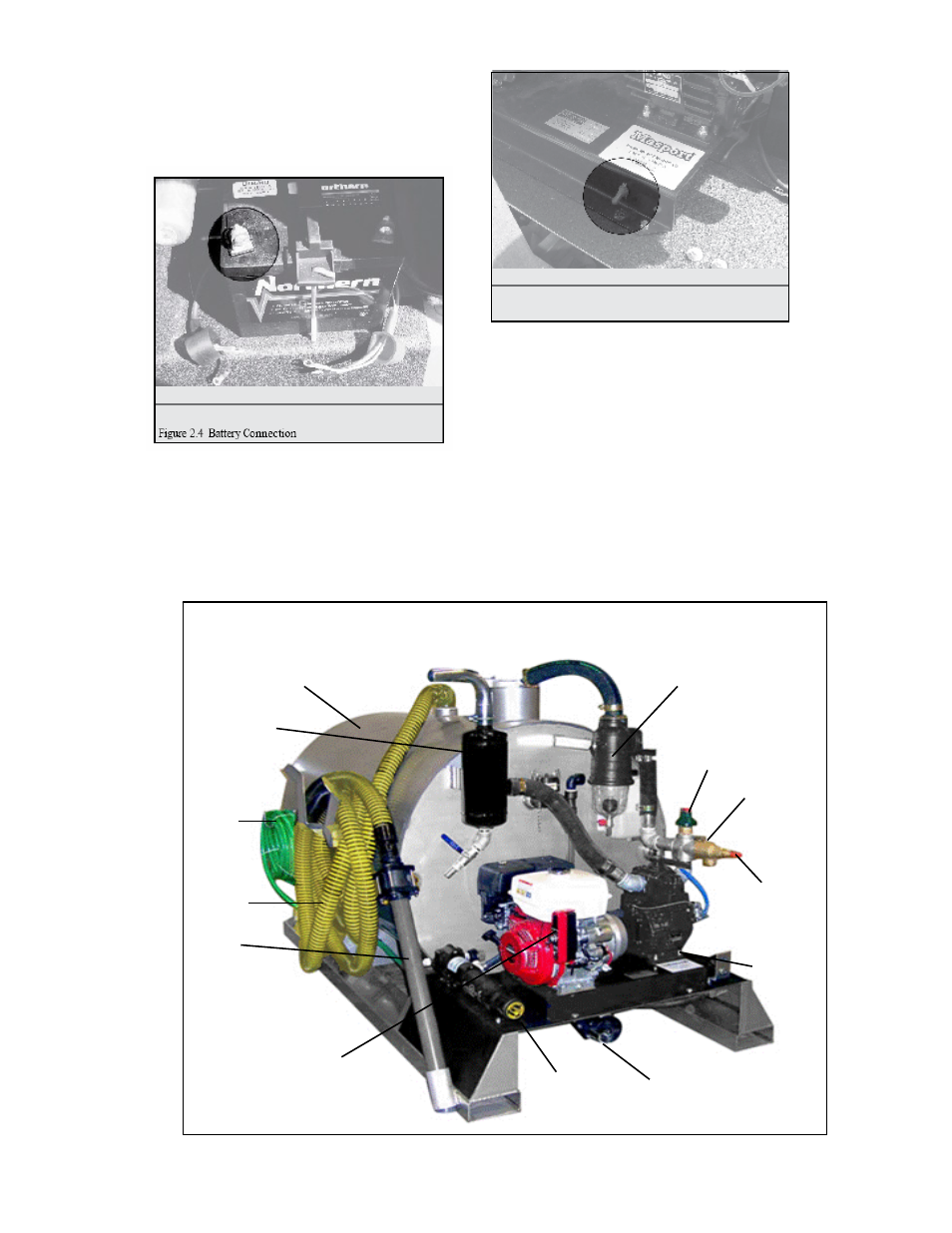

Figure 3.1 Main Components of the Portable Slide-in Unit
Vacuum Tank
Moisture Trap
12
Oil Catch
Muffler
Vacuum Relief
Valve
Vacuum
Pressure
Gauge
Pressure
Relief
Valve
Vacuum
Pump
/
Mediu
m
Pressur
e
Hose
Waste
Hose
Medium
Discharge Valve
Pressure Wash
Honda
Engine
