Satellite Western Flush 2 - Manual

PN 15644 REV L 11-23-11
INSTRUCTIONS
WESTERN HAND FLUSH KIT ASSEMBLY
INTRODUCTION
Portable restrooms and accessory kits must be assembled according to approved assembly procedures.
Avoid variations in assembly procedures could adversely affect product life and warranty.
HARDWARE
TOOLS
*Drill Elec/Cordless *5/16 Drill Bit *3-1/2 Hole saw *Flat blade Screwdriver *Utility Knife *Pencil

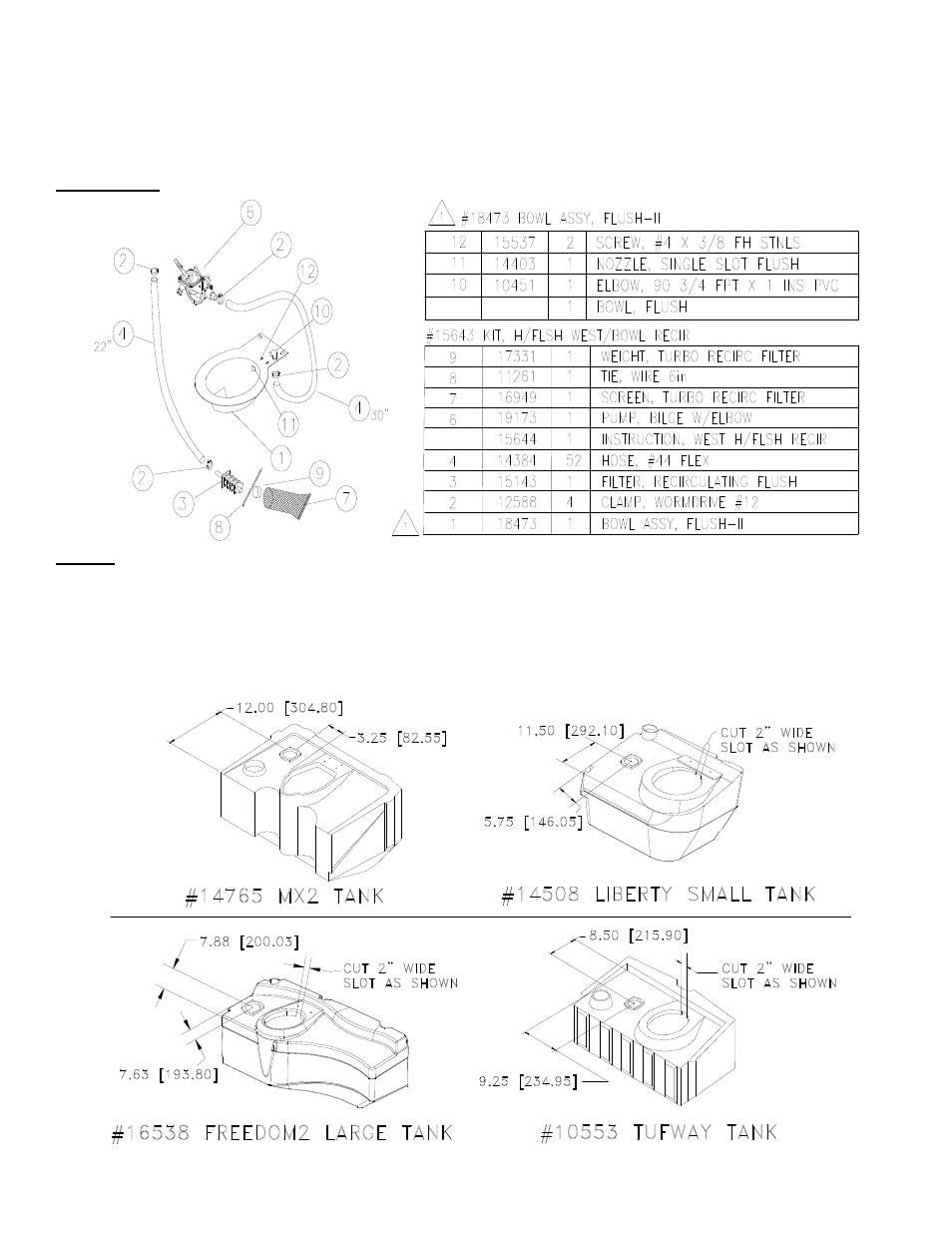

1. Drill Pump Mounting Holes: Find the tank that you will be mounting the Hand Flush kit too. Measure to center as
shown and mark with pencil. With 3-1/2 hole saw, drill through tank wall. Center top plate (this will be with #19173
pump) over 3-1/2 hole. Mark the (4) holes with pencil. Remove plate and drill (4) with 5/16 drill bit. On some tanks
you may have to cut a slot in the opening for the hose and elbow clearance. Do that at this time as shown.
