Satellite MX3 Turbo SS Bowl - Manual

19628 REV C 1 2-1-12
Instructions Maxim 3000
® Turbo Stainless Bowl/Fill Port
INTRODUCTION
:
Satellite portable restrooms and accessories must be assembled according to approved assembly
procedures. Avoid variations in assembly procedures, which could adversely affect product life and warranty.

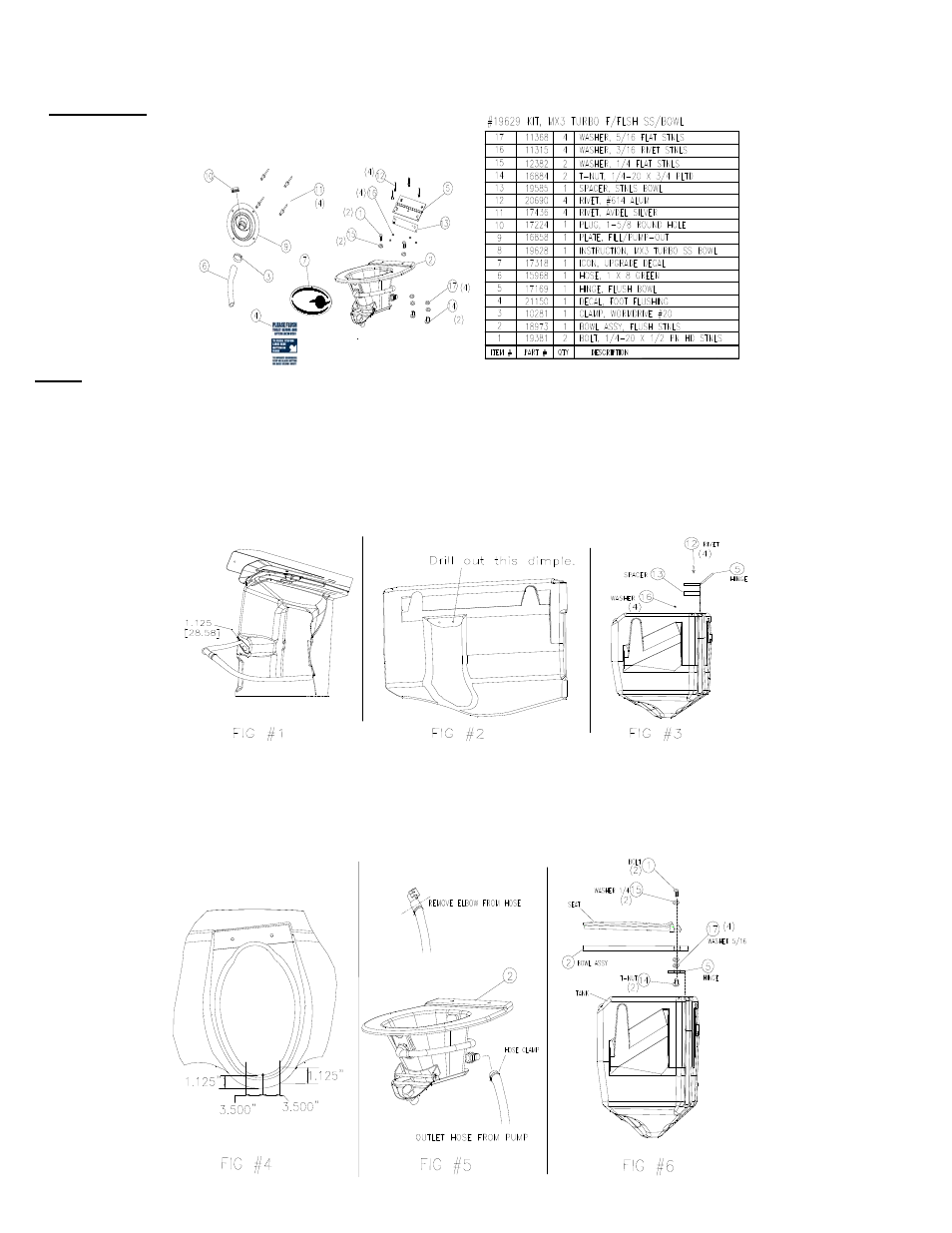

HARDWARE:
Flush & Wash
Luxury
Tools:
• DRILL
ELEC/CORDLESS
• 5/16"[8MM] NUT DRIVER BIT • RECIPROCATING
SAW
• STANDARD
SCREWDRIVER
• RIVET
GUN
• #10 DRILL BIT
• PHILLIPS SCREWDRIVER BIT • HOLE SAW 2.00"[50mm] •
1. Insert end of inlet hose into 1-1/8 [29mm] hole in top of base. SEE FIG #1
2. Drill 2” [50mm] hole on dimple, located on the right side of the tank. Insert the outlet hose into hole. SEE FIG #2
3. Using the plastic screws supplied with toilet seat and the hinge as a fixture. Insert screws through holes in hinge
and in tank holes for the toilet seat. Drill (4) #10 [5mm] holes through hinge, spacer and tank. Fasten with rivets
and washers. Washers on the inside of tank. SEE FIG #3
4. Measure from dimple on front rim of tank over to the right 3.50” and repeat on the left side. Measure from outside
edge on front rim of tank approx. 1.125” should see a visible line on rim of tank, cut on that line starting at dimple.
Place bowl in tank opening and if needed cut out area to create clearance for bowl flapper. SEE FIG #4
5. Loosen hose clamp and cut elbow off hose as close to elbow end as possible. Attach hose to bowl. SEE FIG #5
6. With hinge open, place T-nuts in the (2) large holes in hinge. Place washers on bolts. Insert bolts and washers
through seat lid hinge and just start in T-nut. Center seat lid on bowl and tighten bolts. SEE FIG #6
