19050 REV E

1

2-1-12

Instructions Maxim 3000

® Turbo Plastic Bowl/Fill Port

INTRODUCTION

:

Satellite portable restrooms and accessories must be assembled according to approved assembly

procedures. Avoid variations in assembly procedures, which could adversely affect product life and warranty.

HARDWARE:

Flush & Wash

Luxury

Tools:

• DRILL

ELEC/CORDLESS

• 5/16"[8MM] NUT DRIVER BIT

• RECIPROCATING

SAW

• STANDARD

SCREWDRIVER

• RIVET

GUN

• #10 DRILL BIT

• PHILLIPS SCREWDRIVER BIT

• HOLE SAW 2.00"[50mm]

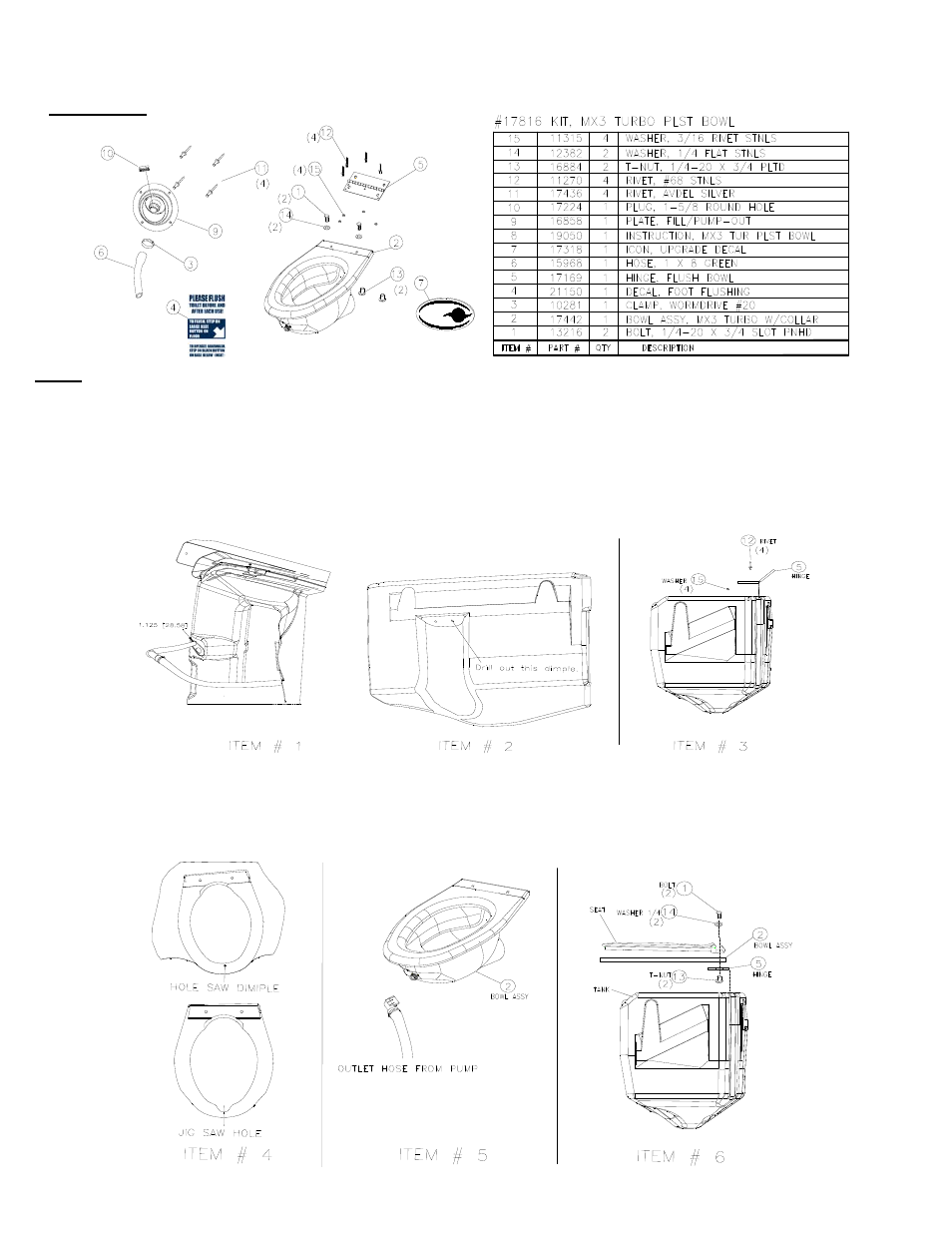

1. Insert end of inlet hose into 1-1/8 [29mm] hole in top of base. (SEE ITEM # 1)
2.
Drill 2” [50mm] hole on dimple, located on the right side of the tank. Insert the outlet hose into hole. (SEE ITEM # 2)
3. Using the plastic screws supplied with toilet seat and the hinge as a fixture. Insert screws through holes in hinge and in tank

holes for the toilet seat. Drill (4) #10 [5mm] holes through hinge and tank. Fasten with rivets and washers. Washers on the
inside of tank. (SEE ITEM # 3)

4. Remove lip: If using a jig saw, cut out pattern (on page 3) and place on rim and align with center line, mark and cut out. If

using a hole saw, drill out dimple on inside of tank rim with a 2” hole saw. (SEE ITEM # 4)

5. Attach hose to bowl. Use Teflon tape on nozzle. (SEE ITEM # 5)
6.
With hinge open, place T-nuts in the (2) large holes in hinge. Place washers on bolts. Insert bolts and washers through seat

lid hinge and just start in T-nut. Center seat lid on bowl and tighten bolts. (SEE ITEM #6)
