PNOZ s8
Operating Manual PNOZ s8
21400-EN-07
4

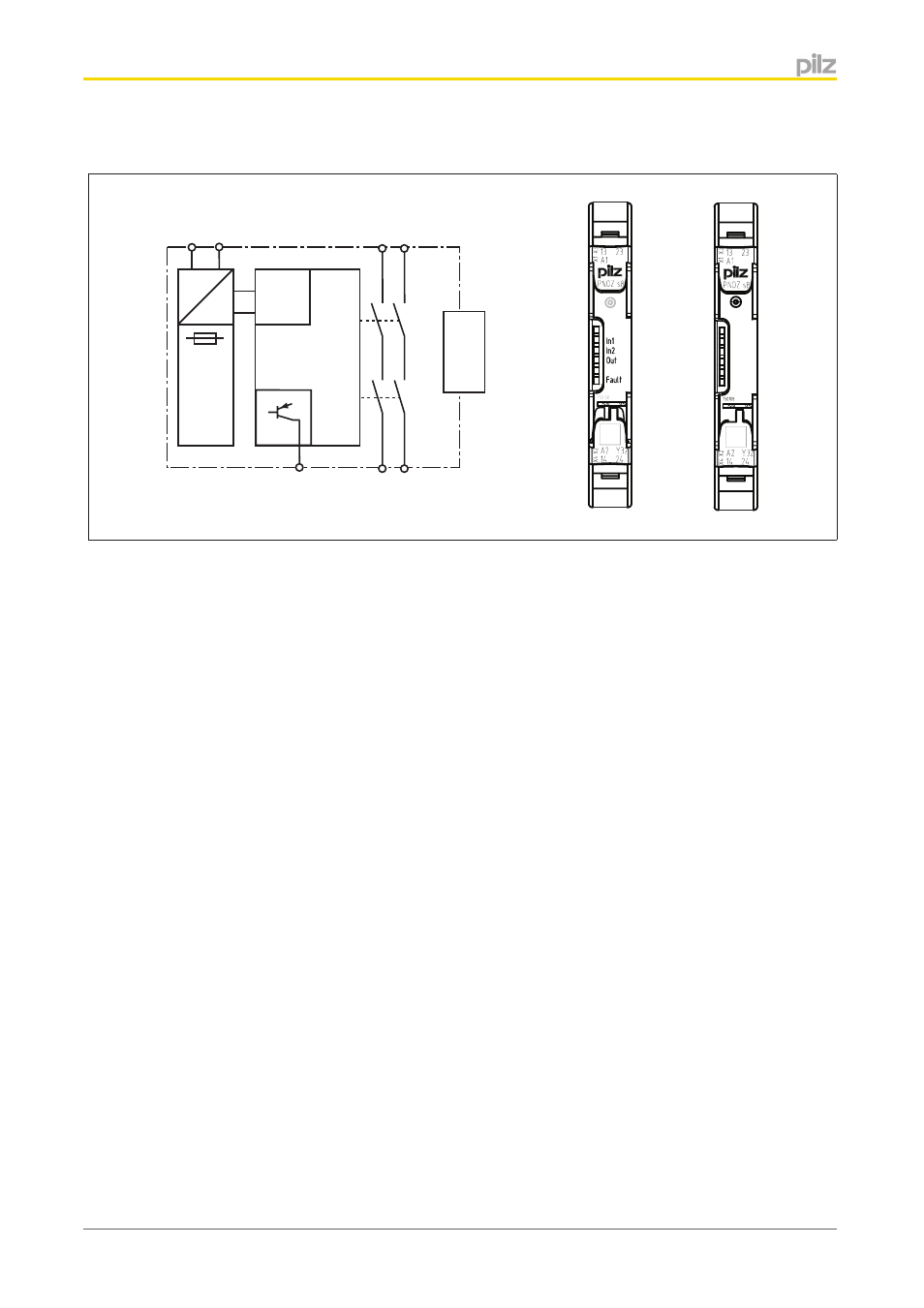

Block diagram/terminal configuration
Input
A1 A2
=
Power
=
Y32
K1
K2
13 23
24
14
Interface expansion
unit
Centre: Front view with cover, right: Front view without cover
Function description
with PNOZsigma base unit:
}
Dual-channel operation via PNOZsigma connector
without PNOZsigma base unit:
}
Single-channel operation: one input circuit affects the output relays
Installation
Install contact expansion module without base unit:
}
Ensure that the plug terminator is inserted at the side of the unit.
Connect base unit and PNOZsigma contact expander module:
}
Remove the plug terminator at the side of the base unit and at the contact expander
module
}
Connect the base unit and the contact expansion module using the connector supplied,
before mounting the units to the DIN rail.
Control cabinet installation
}
The safety relay should be installed in a control cabinet with a protection type of at least
IP54.
}
Use the notch on the rear of the unit to attach it to a DIN rail (35 mm).
}
When installed vertically: Secure the unit by using a fixing element (e.g. retaining brack-
et or end angle).
}
Push the unit upwards or downwards before lifting it from the DIN rail.
