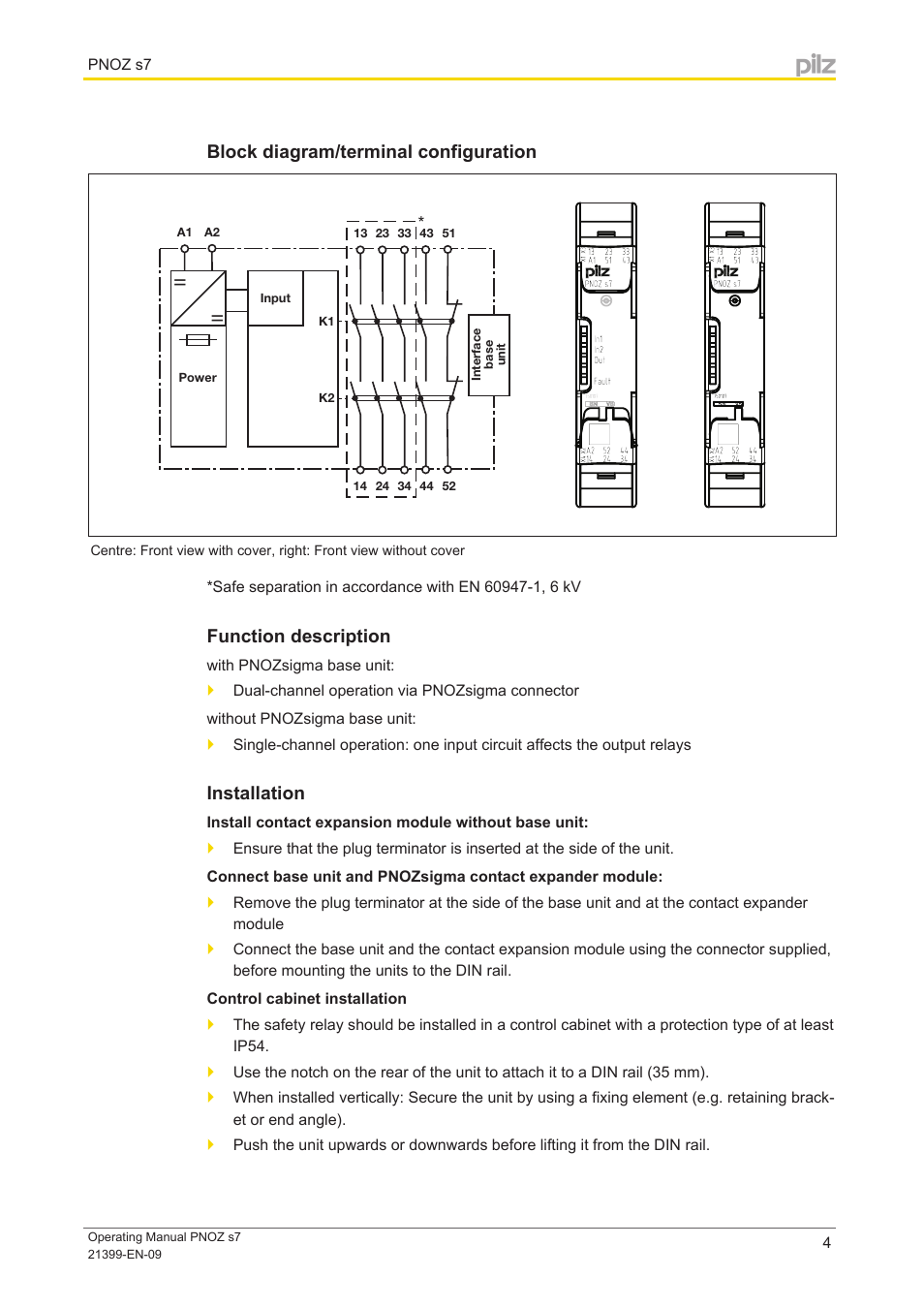

Block diagram/terminal configuration, Function description, Installation – Pilz PNOZ s7 C 4 n/o 1 n/c coated User Manual
Page 4
