PNOZ s4.1
Operating Manual PNOZ s4.1
21890-EN-05
4
Safety features
The relay meets the following safety requirements:
} The circuit is redundant with built-in self-monitoring.
} The safety function remains effective in the case of a component failure.
} The correct opening and closing of the safety function relays is tested automatically in
each on-off cycle.
} The unit has an electronic fuse.

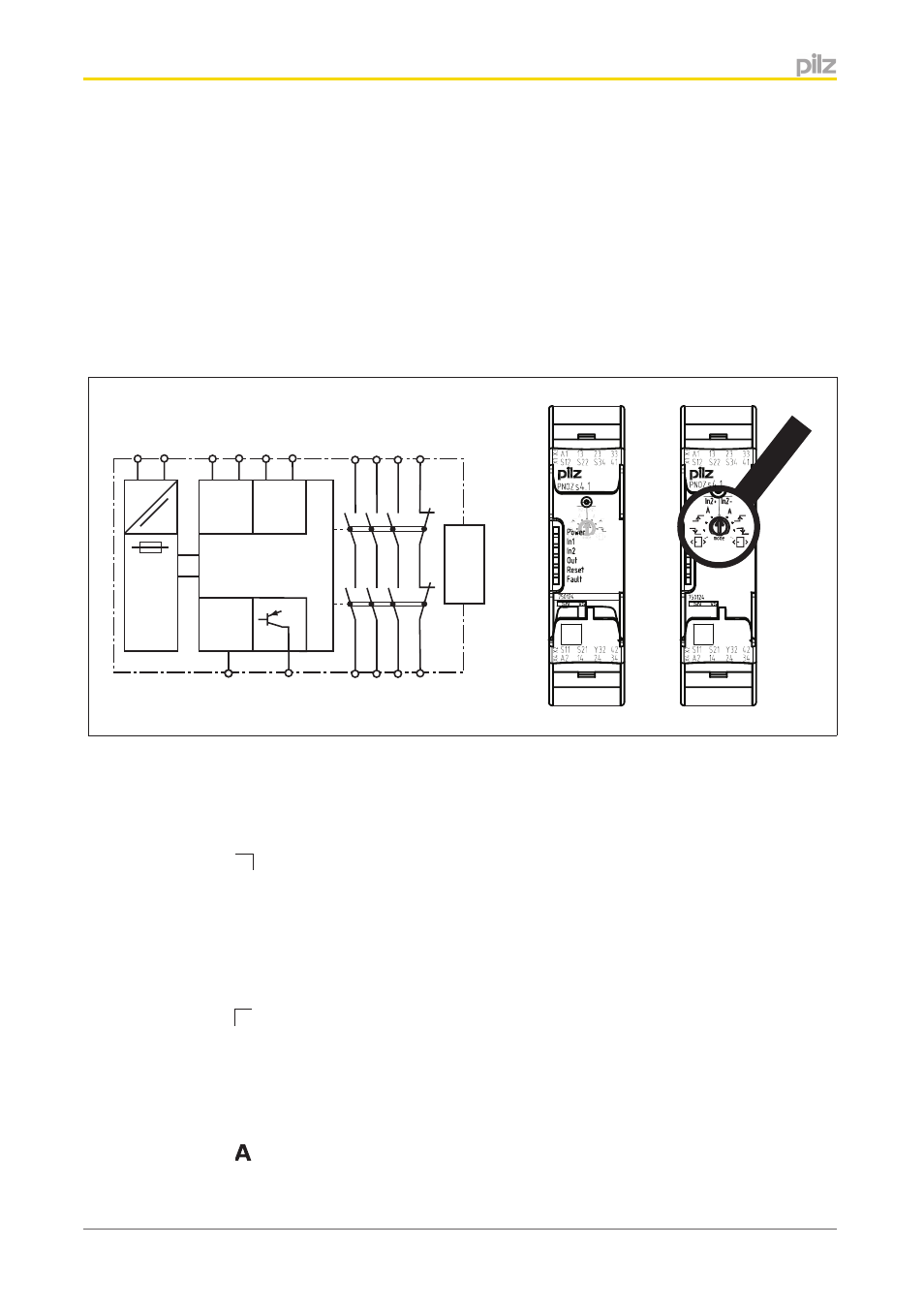

Block diagram/terminal configuration
Input Input
A1 A2 S21 S22
=
Power
Reset/
Start
S34
S11 S12
=
Y32
(~)*
K1
K2
13 23 33
24 34 14
41
42
Interface expansion
unit
( )*
Centre: Front view with cover, right: Front view without cover
*only when U
B
= 48 – 240 V AC/DC
Function description
}
In2+
Single-channel operation: no redundancy in the input circuit, earth faults in the start
circuit and input circuit are detected.
} Dual-channel operation without detection of shorts across contacts: redundant input cir-
cuit, detects
– earth faults in the start and input circuit,
– short circuits in the input circuit and, with a monitored start, in the start circuit too.
}
In2-
Dual-channel operation with detection of shorts across contacts: redundant input cir-
cuit, detects
– earth faults in the start and input circuit,
– short circuits in the input circuit and, with a monitored start, in the start circuit too,
– shorts between contacts in the input circuit.
} Automatic start: Unit is active once the input circuit has been closed.
