Xpres Cut Lite - Manual (Page 17)

Operation

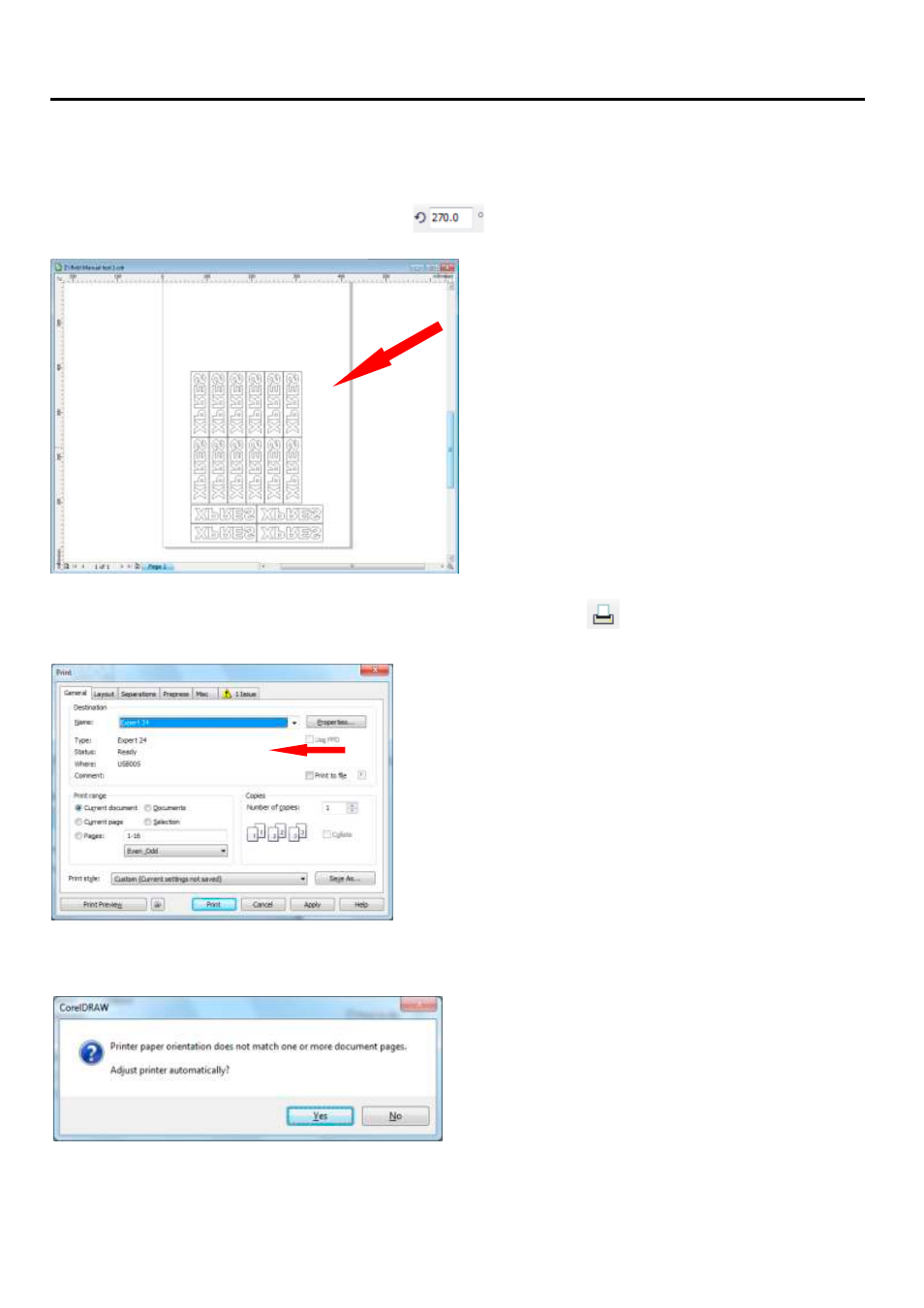

9. Click File > Print or select the Print Icon from the Property Bar ( ). From the Print Window select
the ‘Expert 24'
Important: If shown the message below, select ‘No’. This message occurs if the paper length in
CorelDRAW is not set longer than the width as explained in step 8.
Now the design is positioned correctly, you need to rotate the design so that the bottom edge of the
design faces towards the left hand side of CorelDRAW.
Rotate 90 or 270 (depending on how the design is layed out) by highlighting all objects and
entering ‘90/’270'' in the ‘Angle of Rotation’ ( ) tool on the property bar. Your design should be
rotated as the below shows.
.
° °
correctly in the print preview page in the following
steps
Note: This step allows us to position the cut
Click ‘Print Preview’
15
