Operation – Xpres Cut Lite User Manual
Page 11

Operation
Power
On/Off Line Pause
Repeat Data Clear Cut Test Origin Set
Error

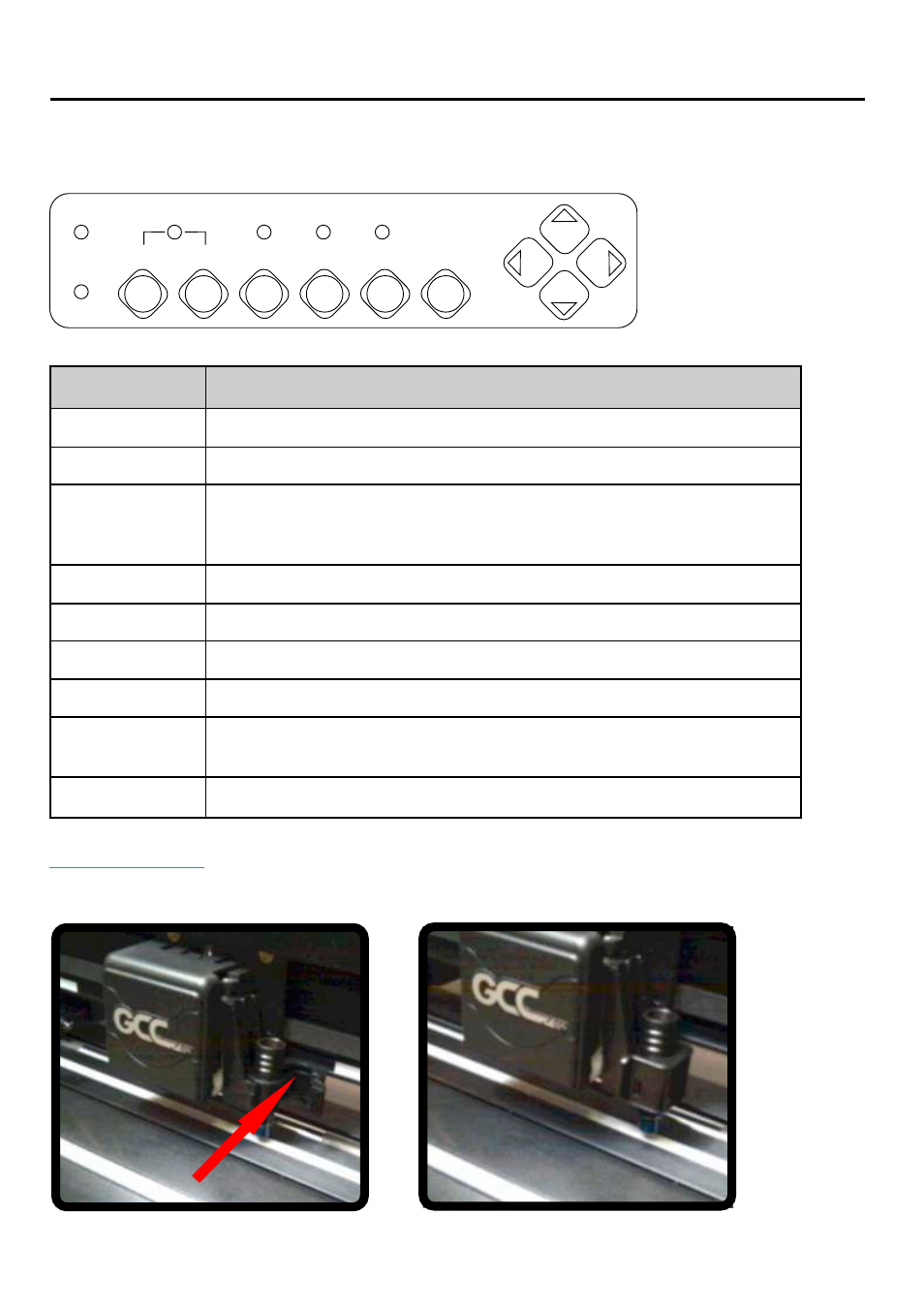

Below shows the layout of the control panel and the relevant functions:
Key
Function
POWER LED
To indicate the power status ( light up: power on; light off: power off )
ERROR LED
To indicate the error status ( light up: error; light off: normal )
ON/OFF LINE
To switch modes or stop cutting job( light up: on-line; light off: off-line )
While in on-line mode: only ON/OFF LINE and PAUSE keys activated
While in off-line mode: the settings in VLCD can be adjusted.
PAUSE
To temporarily halt cutting process or to continue
REPEAT
To repeat last job.
DATA CLEAR
To clear up buffer memory.
CUT TEST
To perform cutting tests in different ways.
ORIGIN SET
To reset origin at a new position.
*Make sure the machine is in off-line mode to enable this function.
4 Arrow Keys
To move carriage position, select function, or change setting.
Blade Installation
Install the blade as shown in diagrams below.
Open the Blade Holder Clamp and insert the blade ensuring that the outer ring of the blade will slot
in to the groove of the clamp arm (as shown above).
