CardioPerfect Workstation

DIR 80013928, Ver. F

20 / 56

9.

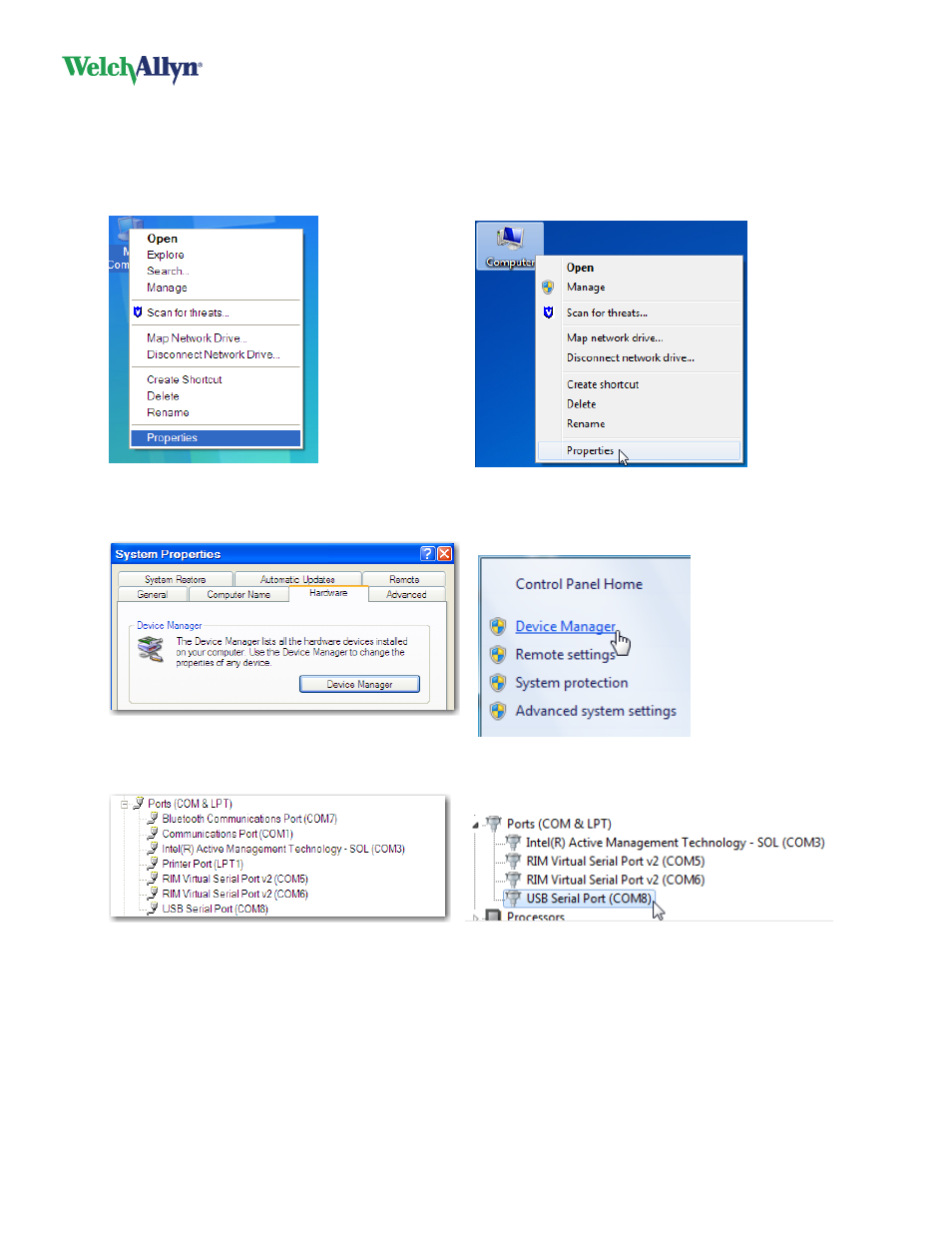

Configure the ABPM module

To set up the ABPM 6100 for communication to your PC for the first time:

Windows XP

Windows 7 and Windows 8

1. Right-click on My Computer.

1. Right-click on Computer.

2. Select Properties.

2. Select Properties.

3. Click the Hardware tab.

4. Click the Device Manager.

3. Click the Device Manager.

5. Double-click Ports (COM & LPT)

4. Double-click Ports (COM & LPT)

6. Plug the ABPM 6100 PC Interface

Cable into a USB port on your PC.

5. Plug the ABPM 6100 PC Interface Cable into
a USB port on your PC.
