42 Inbound ADT HL7 messages Welch Allyn Connectivity Server
Overview: Inbound HL7 ADT Data module
ADT information is transferred to the WACS server in this sequence:
1. WACS initiates a connection to a facility’s CIS on a preconfigured TCP port (usually in
the range of 5600-5700).
2. Once a session is established, WACS listens for and accepts particular ADT message
types from the CIS.
3. WACS updates and stores the data on a local SQL database.

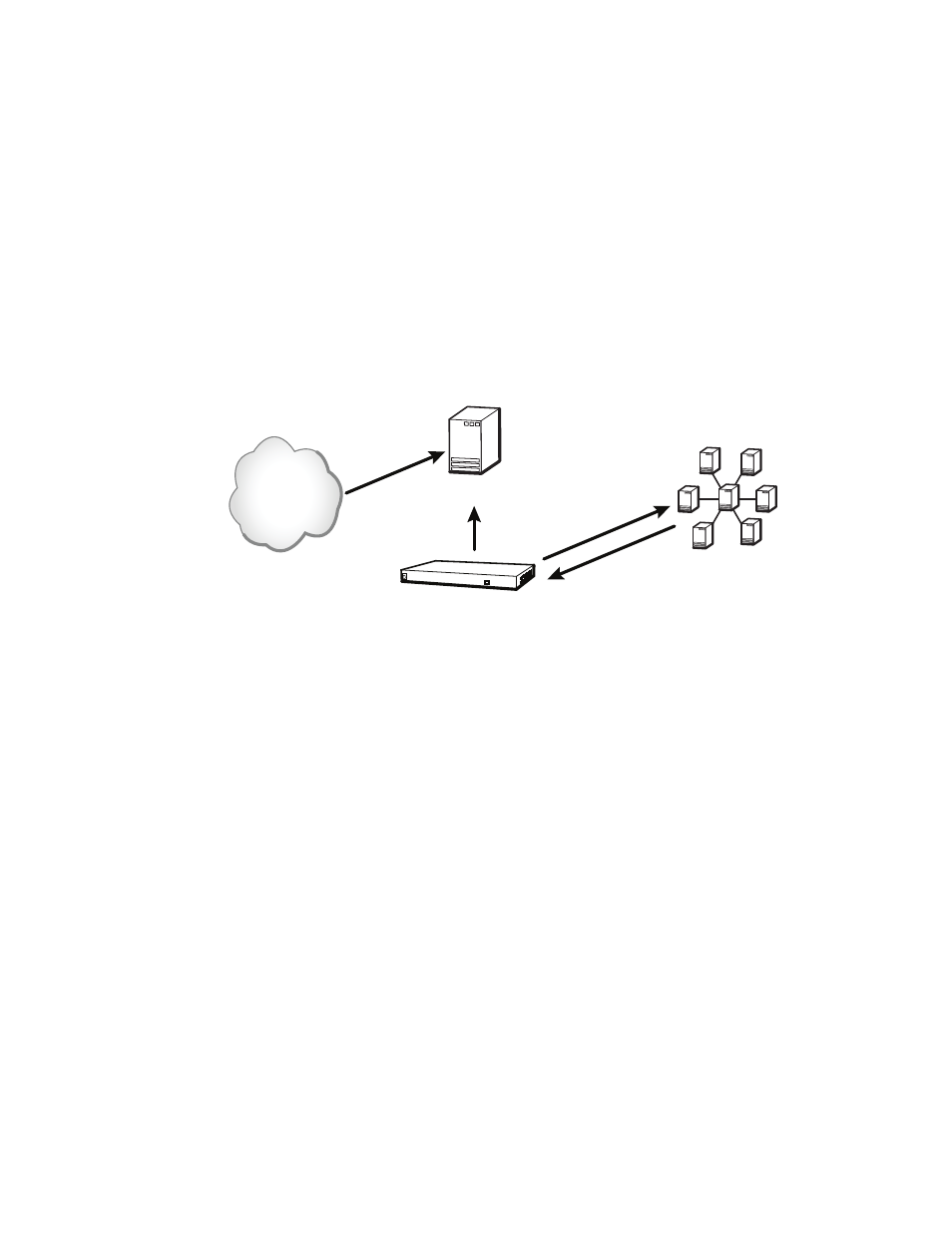

Acuity System
network
Clinical information system
(CIS)
SQL database
WACS
A01, A03, A04, A05,
A08, A11, A13 messages
Inbound HL7 ADT messaging
Patient identification process
1. At Acuity System, open Patient ID Setup
window.
2. Insert patient ID number.
3. Press Enter on keyboard.
Acuity queries Patient Name server and
then the WACS SQL database for
demographics including patient name
and patient location.
4. Respond to patient confirmation prompt.
Remaining patient fields autopopulate.
10.30.1.41, port 5601
Initiate connection to
CIS IP + port
Database schema
Patient ID number (16 characters)
Patient name
(50 characters)
Patient location (15 characters)
