Numerical results section

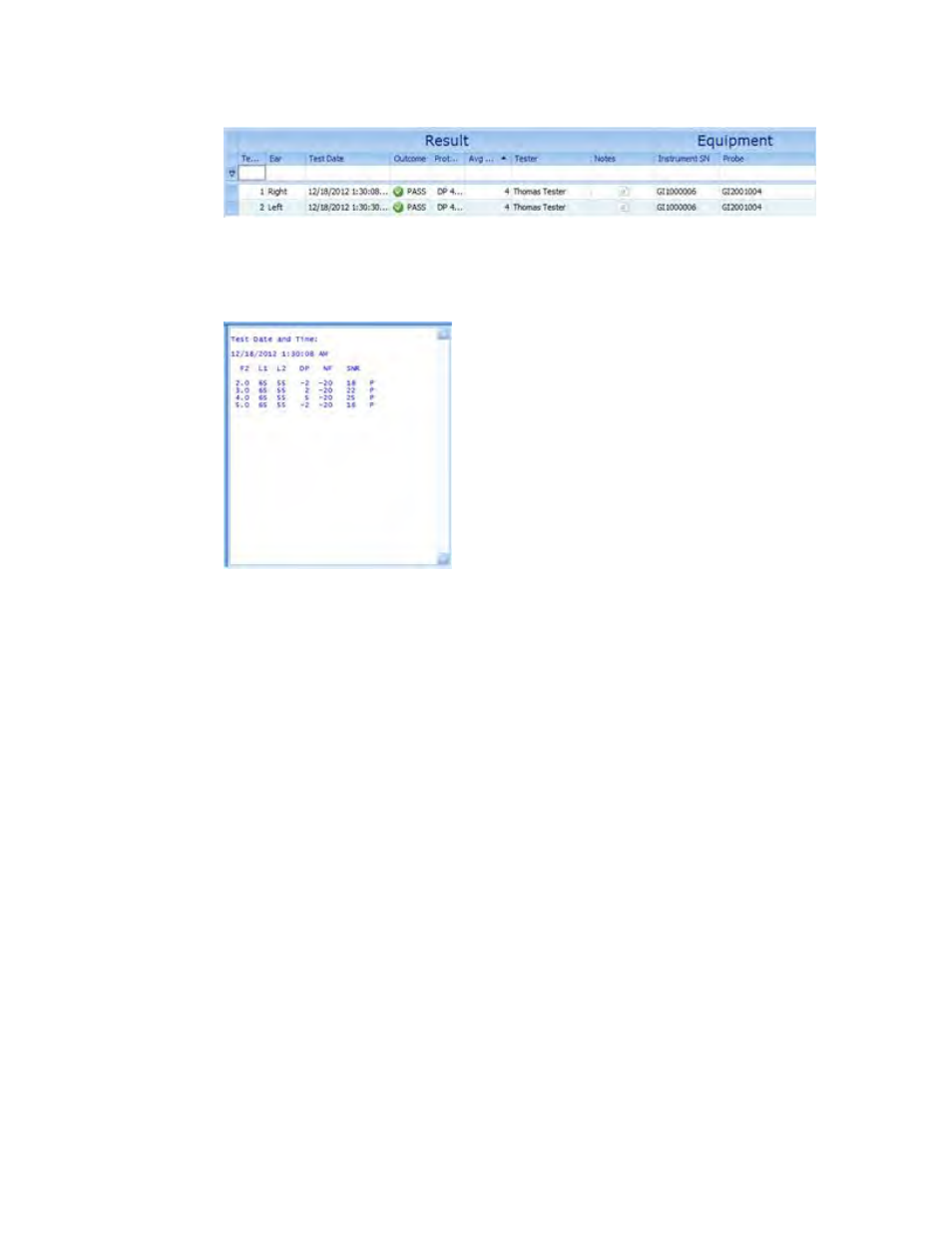

The numerical results section displays complete test information for a specific test that
includes F2 frequencies, L1 and L2, DP, NF, SNR, and outcome.
Graphic results section
The Graphic results section displays test results of selected test in graphical form.
The Graphic results section consists of two tabs:
•
Value Graph tab
• SNR tab
View Value Graph details
The Value Graph tab displays OAE test data in a line graph format showing response
amplitude in dB SPL of the emission and noise floor (NF) across the test frequency
range. Ear data is color and symbol coded: red circles represent the right ear, blue X’s
represent the left ear. For the default screening bar graphs, green bars represents PASS
and orange bars represent REFER.
Move your mouse over an individual data point to view details at a given frequency.
The enlarged circles and triangle symbols designate the selected responses.
