A. C. MODULAR GENERATOR SYSTEM
Page 16 of 49
3. Mount the tray assembly as high as possible within the structure of the vehicle. The
ideal location for the generator is at the top of the truck in the dunnage area. The
manufacturer must also take sufficient precautions to ensure that the generator is
not mounted in the path of the deck gun/water cannon.
4.

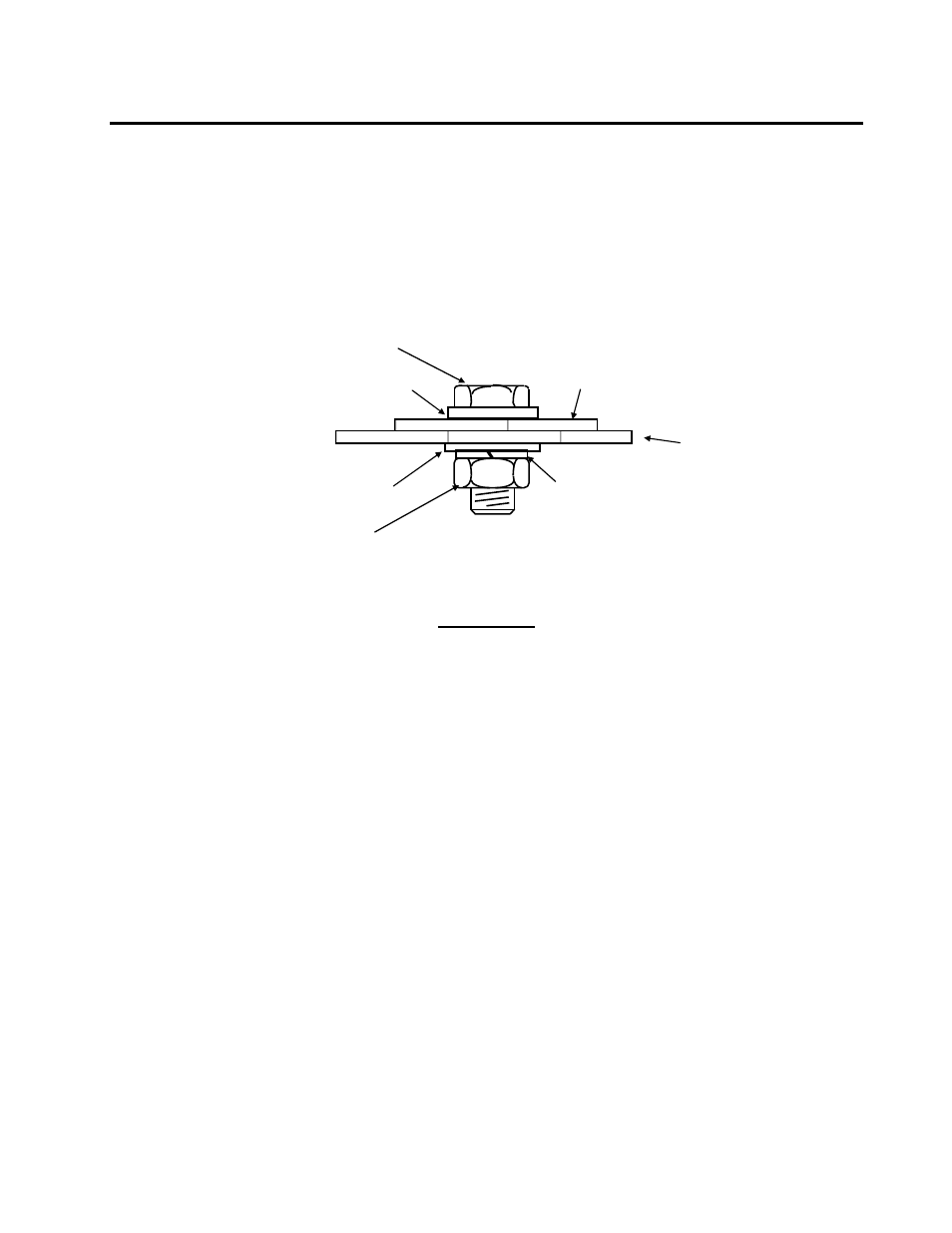

Mount the hydraulic generator tray securely to vehicle. Secure the generator to the
floor of the enclosure using mounting hardware (not included), as shown in Figure
7.
1/2-13UNC Screw
1/2” Flat Washer Generator Tray
Dunnage Area
Floor
1/2” Flat Washer 1/2” Lock Washer
1/2-13UNC Nut
Figure 7
WARNING:
Never mount the Generator on its side or upside down. Always mount the generator
upright with its base horizontal. Improper mounting will lead to poor performance
and damage to the system and will void the system’s warranty.
Never operate an AC modular generator system that is not secured in place;
damage will result.
Do not mount the hydraulic pump or tray assembly in any location that is not well
ventilated. External heat sources elevating the hydraulic fluid and/or the generator
temperature will result in premature wear and degraded system performance and
void the system’s warranty.
5.
Mount Command & Control Center:
a. Create hole pattern as shown in Figure 8.
b. Mount Command & Control Center to vehicle using #10 stainless steel
fasteners.
c. Connect Command & Control Center to system controller unit using p/n
3722004 harnesses.
