A. C. MODULAR GENERATOR SYSTEM
Page 15 of 49
Installation Guide
1.
Refer to the Chelsea PTO Installation Instructions (provided) to mount the
PTO/pump unit on Ford Torqshift Transmission.
2.
Locate and bore mounting holes for generator tray assembly as shown in Figure 6.
Maintain minimum clearances as indicated in Figure 3 and Figure 4.

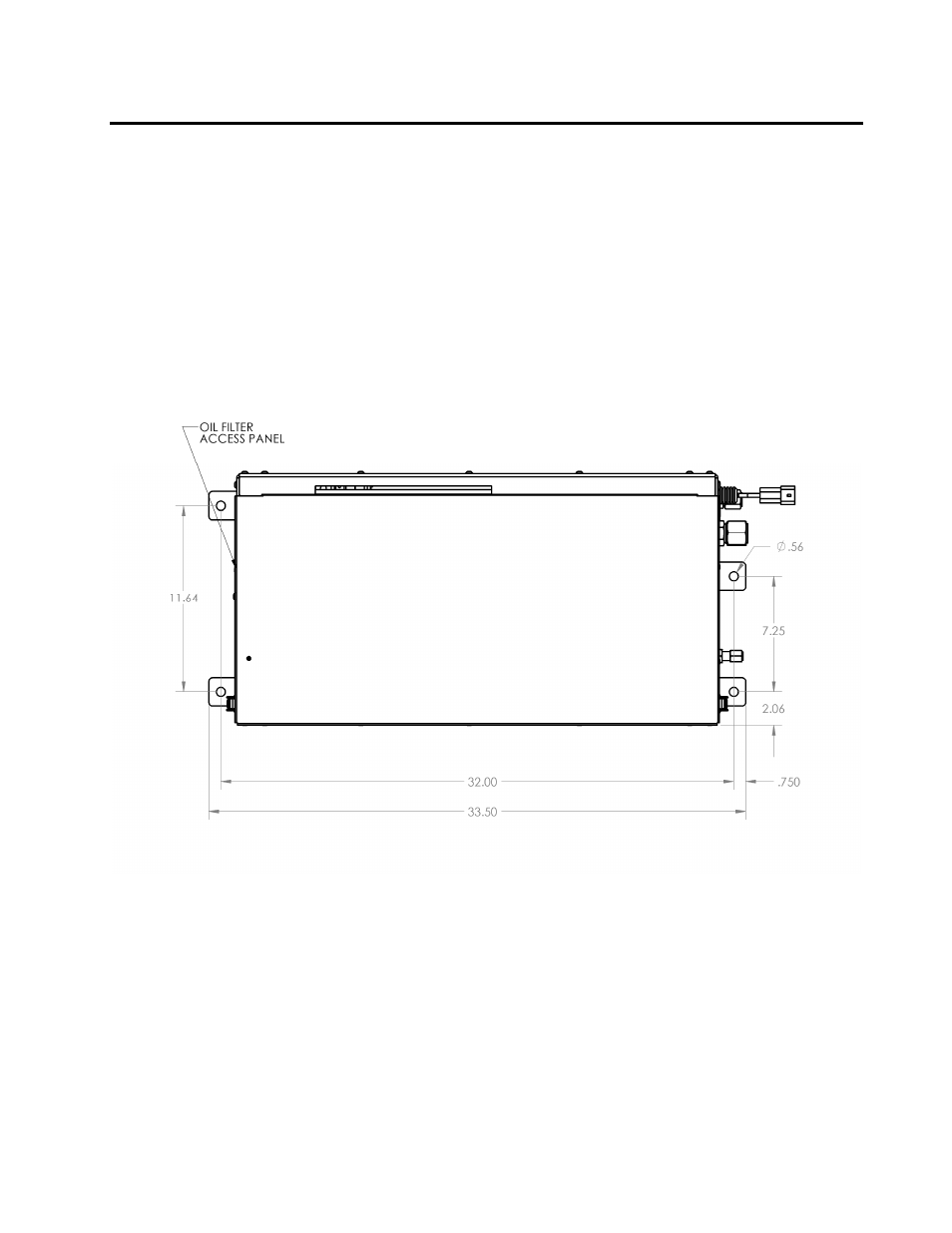

Hole pattern for mounting LR-6.2 LR-8 tray assemblies
Figure 6
