Caution
To avoid possible damage to calibrator or to
equipment under test:
• Use the proper jacks, function, and range for your measurement or
sourcing application.
2. Calibrator Interface

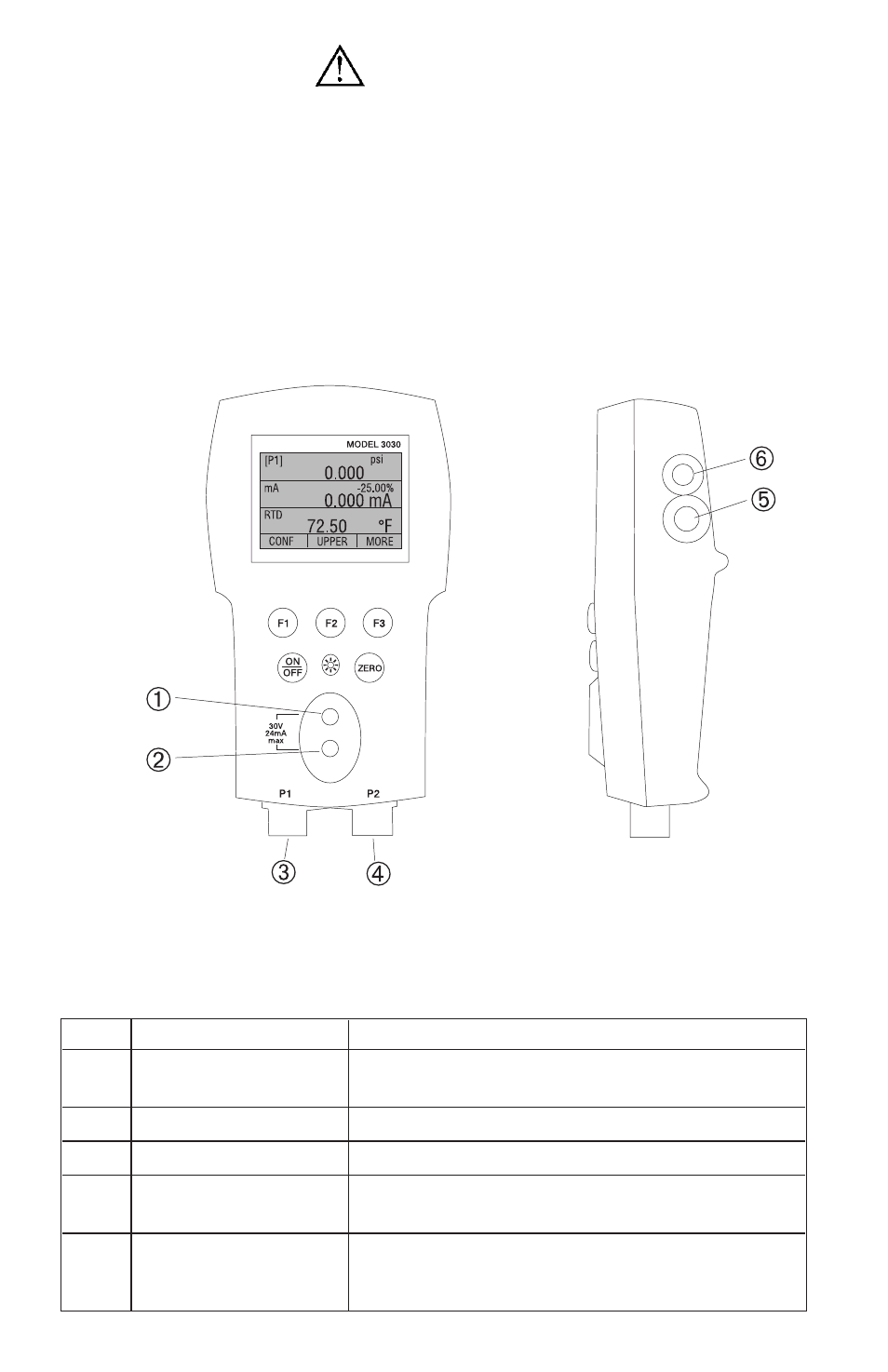

Figure 1 shows the location of the process measurement inputs,
while table 1 describes their use.
Figure 1 - Pressure Measurement Inputs
Table 1 Process Measurement Inputs
No. Name Description
1, 2 Input Terminals These terminal are used to measure current,
voltage and a contact closure for switch test.
3 P1 Pressure Port This is the connection for the internal sensor P1
4 P2 Pressure Port This is the connection for the internal sensor P2
5 RTD Probe Connector This connector is where the RTD probe is
plugged in.
6 Serial Interface This is used to interface to optional external mod-
ules as well as for RS-232 serial communications
with a PC using the LEM-232 cable(optional).
4
