Front view (round-pan type) rear view, Square-pan type – Rice Lake TP Series, Rice Lake Weighing Systems - Balance Manual User Manual
Page 7

Introduction
3
Function
Zero/Tare
Memory
On/Off
Target
Function
Zero/Tare
Memory
On/Off
Target
Windshield
Supplied only with the
round-pan balances.
Top lid is detachable.
Liquid Crystal Display (LCD)
See page 4.
Operating Keys
Measurement Pan
Level
For checking the
level of the
balance.
Turn the
adjusters until
the bubble rests
in the center of
the red circle.
RS232C
Connector
AC Adapter Connector
Adjusters
Round-pan: Total of two, one on
either side of the unit’s front.
Square-pan: Total of four, one on
either side at the front and rear.

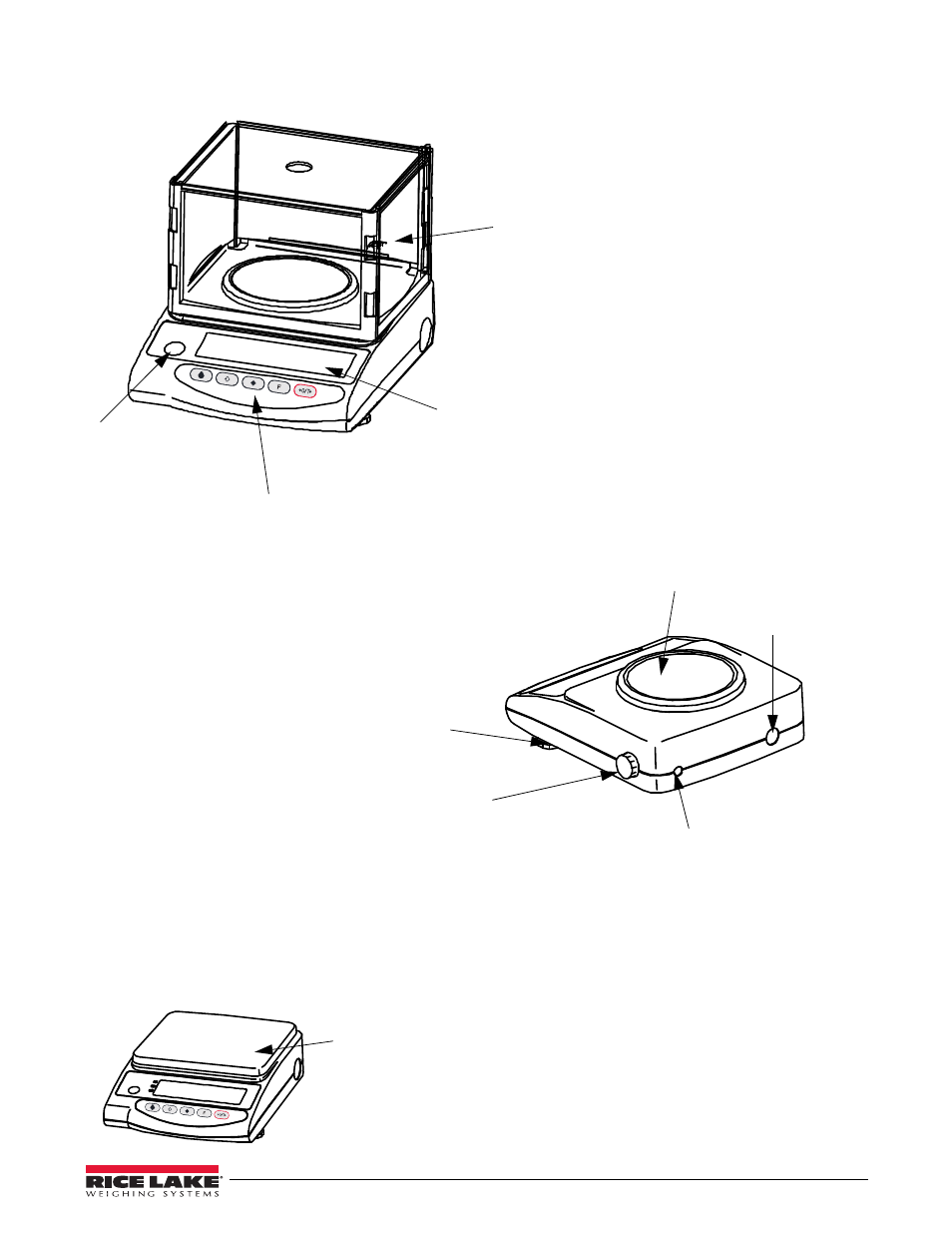

Front View (round-pan type)
Rear View
Calibration Knob
(TP-220, TP-420 and TP-620)
Used for span adjustment of the balance.
Square-pan Type
Measurement Pan
TP-820, 1200: 170 mm x 140 mm
TP-2200, TP-12K: 180 mm x 160 mm
TP-2200, TP-4200: 180 mm x 160 mm
