Oldcastle BuildingEnvelope Reliance StormMax High Performance - Manual (Page 30)

February 2014 28-Parts-List 1-866-Oldcastle (653-2278) www.oldcastlebe.com

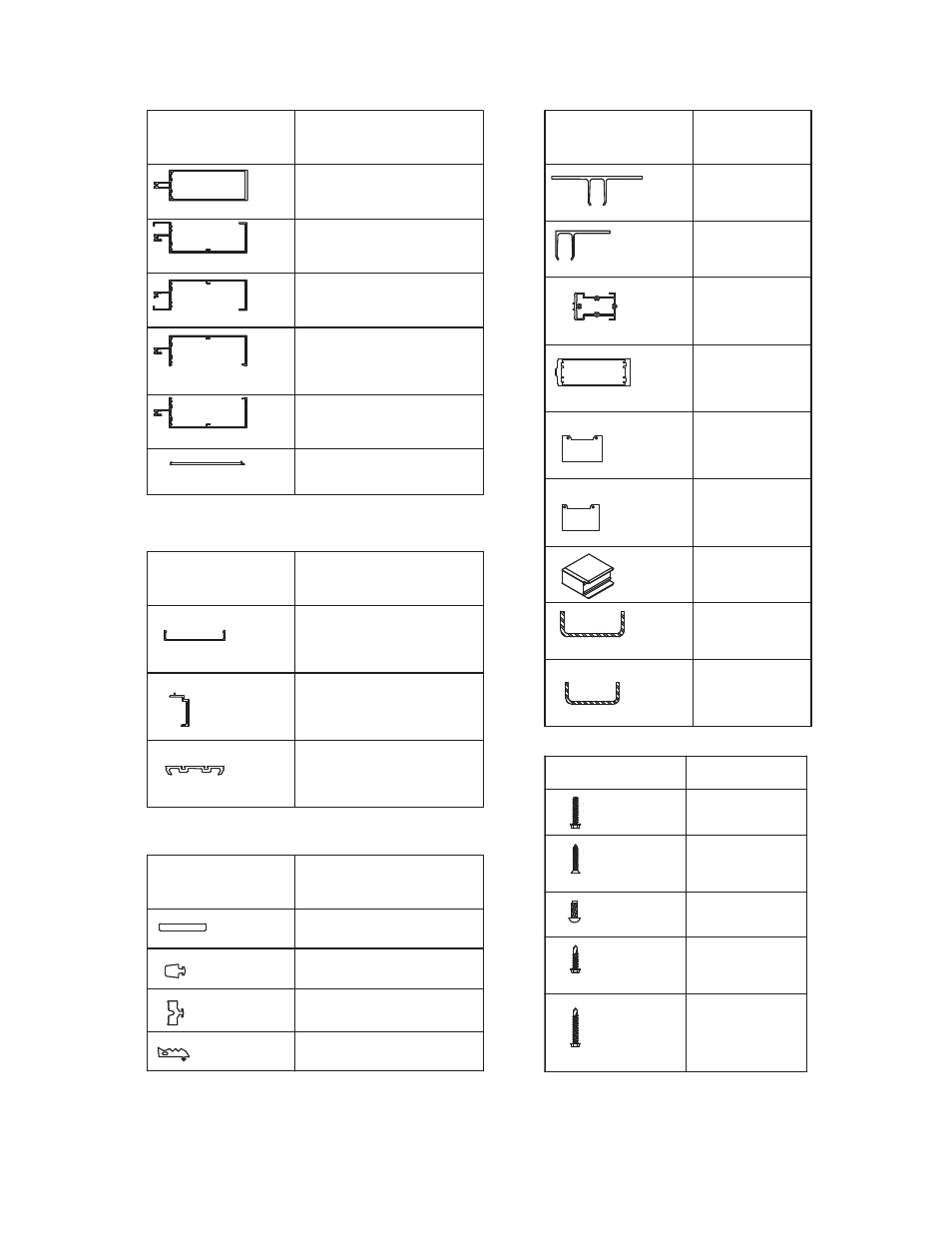

Mullions / Horizontals / Fillers
Miscellaneous Parts List
Accessories List
Fastener List
HW-737
Filler
HW-733
Roll Under Horizontal
HW-732
Roll Over Horizontal
HW-702
Sill
HW-701
Head
HW-710
Mullion
WW-1328
Typical Face Cap
HW-123
Pocket Filler (Use with
Exterior Gasket)
HW-163
Typical Pressure Plate
HW-107-01
"F" Anchor
for sleeve
HW-355
Zone Plug at
Captured Mullion
CW-2102
4" Setting Block
FG-5185
Spacer Gasket
GP-107
Thermal Isolator
HW-106-01
"T" Anchor
for sleeve
HW-185-01
Shear Block
HW-202-01
Anchor Sleeve
for HW-710
Jamb Cap
HW-348
Mullion Cap
HW-345
7 1/4" x 2 1/4 "
Steel Channel
10' RS-35
Dry Glazed Gasket
GP-165
ITEM DESCRIPTION
FS-9
#14 x 1 1/2" Hex
Shear Block Screw
FS-320
FS-322
FS-325
#10 x 1/2" U-Drive,
at End Caps
#12-14 x 1" Hex
Washer Head Dril
Flex Jamb Filler
#12-14 x 1 1/2" Hex
Washer Head Dril
Flex at Pressure
Plates
#10 x 1" Phillips Flat
Head at Horizontal
Members FS-118
6 3/8" x 2 "
Steel Channel
10' RS-36
PARTS LIST
Accessories List
RELIANCE STORMMAX HIGH PERFORMANCE INSTALLATION MANUAL
ITEM DESCRIPTION
ITEM
DESCRIPTION
ITEM DESCRIPTION
ITEM DESCRIPTION
