DRY GLAZED GASKET INSTALLATION (OPTIONAL)
3.1 a. Cut vertical GP-165 Gasket to D.L.O. plus 1 1/2".
b. Cut the horizontal GP-165 Gasket to D.L.O. plus 3/16".
c. Bed 2" at horizontal vertical intersections including the gasket reglet with sealant as shown in Figure 3.1a.
d. Install vertical GP-165 Gasket into reglet using a vinyl roller. Begin at center work towards ends.
e. Install horizontal GP-165 Gasket next. Apply silicone on ends. Begin at center of horizontal.
Use a vinyl roller to ensure proper engagement.
2"
2"
HW-500 Horizontal
GP-165 Dry Glazed Gasket
Apply Dow Corning 795
to seal gasket joint
Apply Dow Corning 795 or Tremco Proglaze
SSG sealant and push gasket in to reglet
then use roller to properly engage the gasket

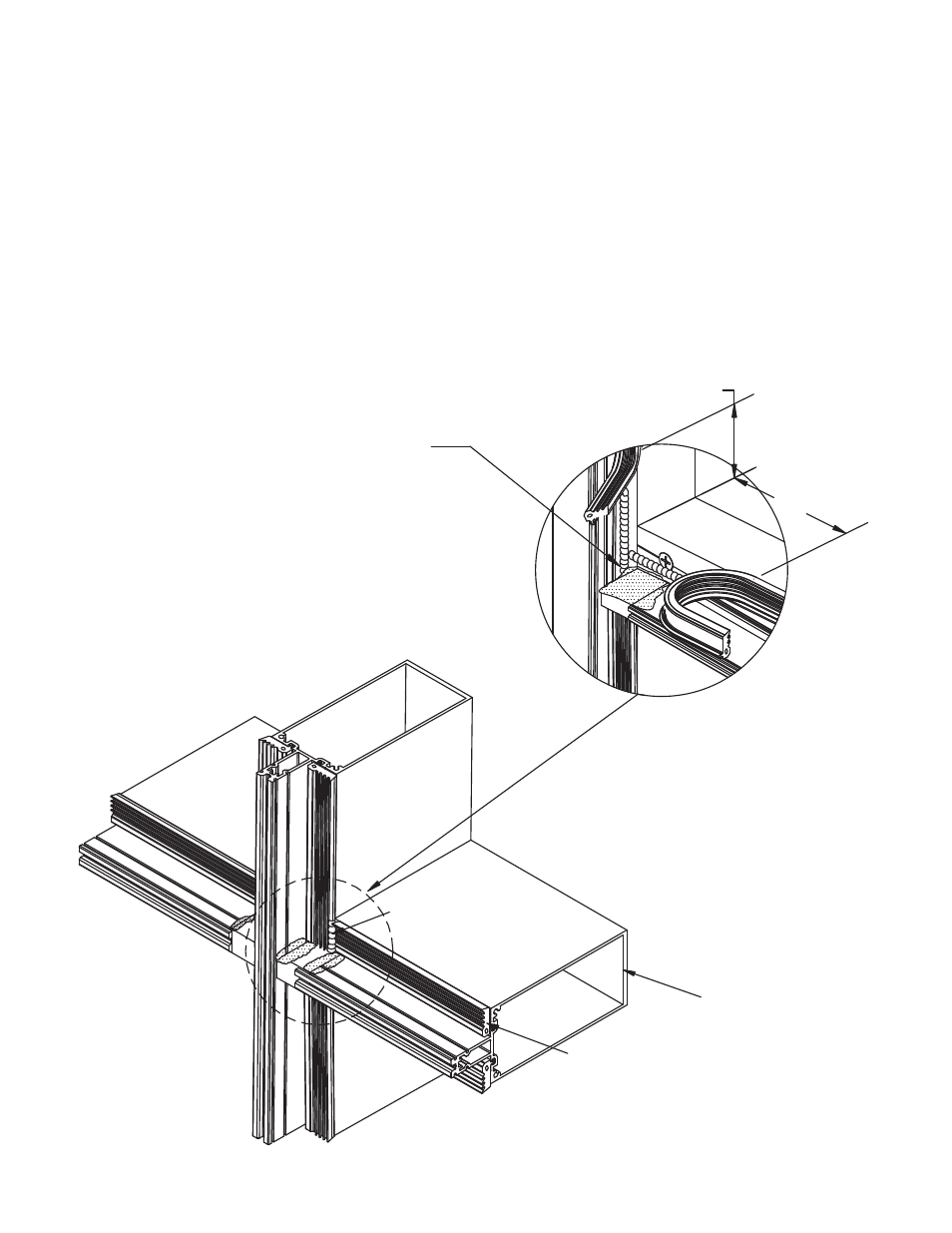

FIGURE 3.1a
FIGURE 3.1b
