Install GP-165 gasket into HW-163 pressure plate
making sure that the "V" Notch on GP-165
line up to weep holes.
Install unnotched GP-165 gasket into
opposite position in riglet on
HW-163 pressure plate.

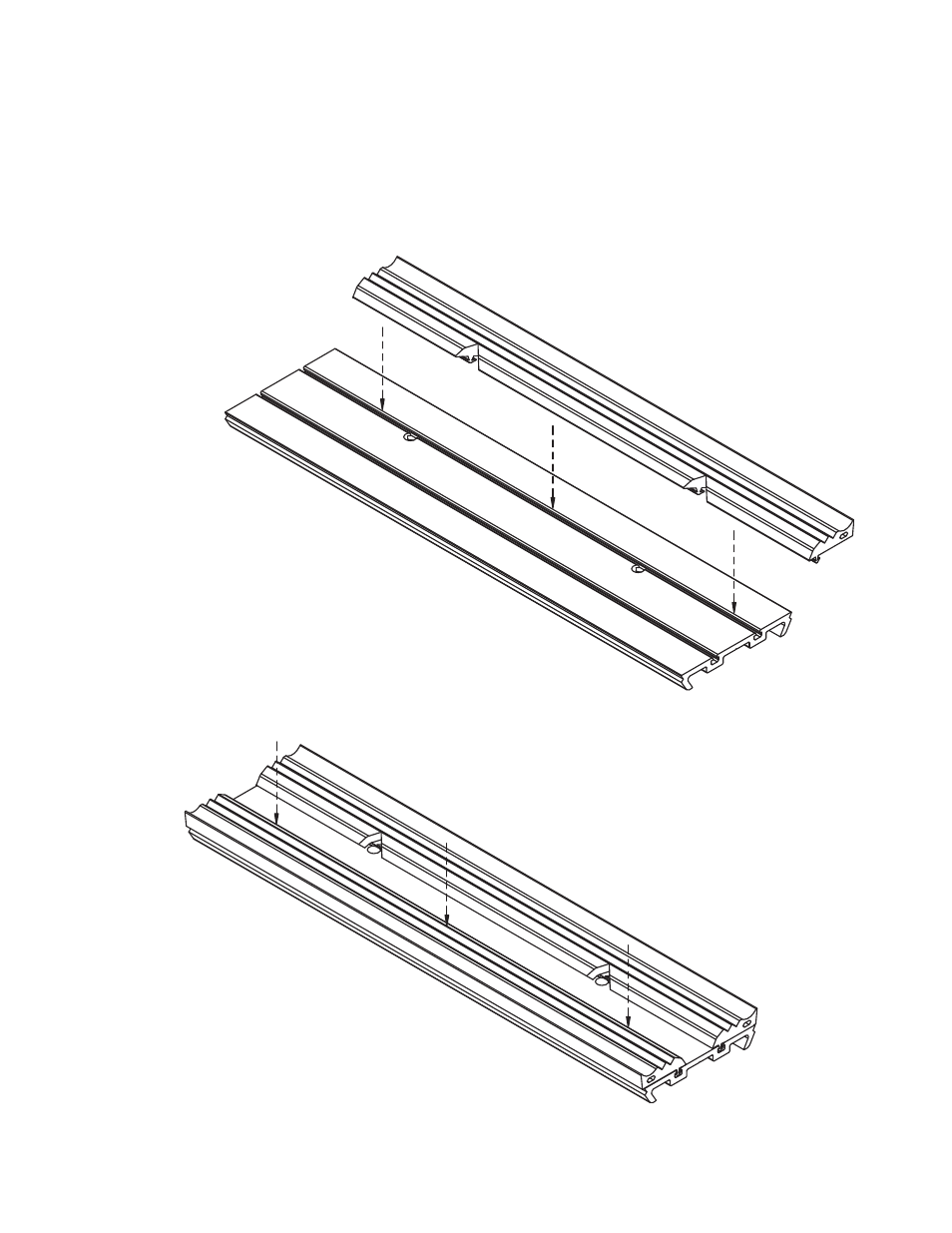

1.6 con't f. Install GP-165 Gaskets as shown in FIGURE 1.6c and 1.9d
HORIZONTAL PRESSURE PLATE FABRICATION
FIGURE 1.6c
GP-165 Gasket Installation
FIGURE 1.6d
GP-165 Gasket Installation
RELIANCE STORMMAX HIGH PERFORMANCE INSTALLATION MANUAL
