GLASS SIZING AND INSTALLATION
3.2 a. Set glass in opening. Ensure that glass bite is equal on all sides. CAUTION: Be certain that glass is
placed firmly against interior spacer gasket to ensure a proper seal and to avoid binding of the glass on
the setting block.
b. Temporarily hold glass in the opening with WW-333 temporary glazing retainers & FS-325 screw.
Torque the FS-325 screw to 90 in-lbs.
-WW-333 temporary glazing retainers must be applied at each glass edge 3" from the corner (minimum
of 8 per lite). Glass edges greater than 4' in length but less than 8' require an additional retainer at the
glass mid-span.
-Retainers are intended for short term use only. Additional retainers may be required to withstand full
design wind load pressures.
-Full length pressure plates must be installed if severe weather or high wind loads are anticipated.
See Figure 3.2a & 3.2b
HW-355 zone plug
see Figure 4.1 for
sealant notes
CW-2102 setting block
(2) per D.L.O, locate at
1/4 points
WW-333-01 temporary glazing retainer.
Locate at 3" from edge of glass. Additional
clips may be required based on field
conditions and glass size.
FS-325
(1) per retainer
3" typ.
3" typ.

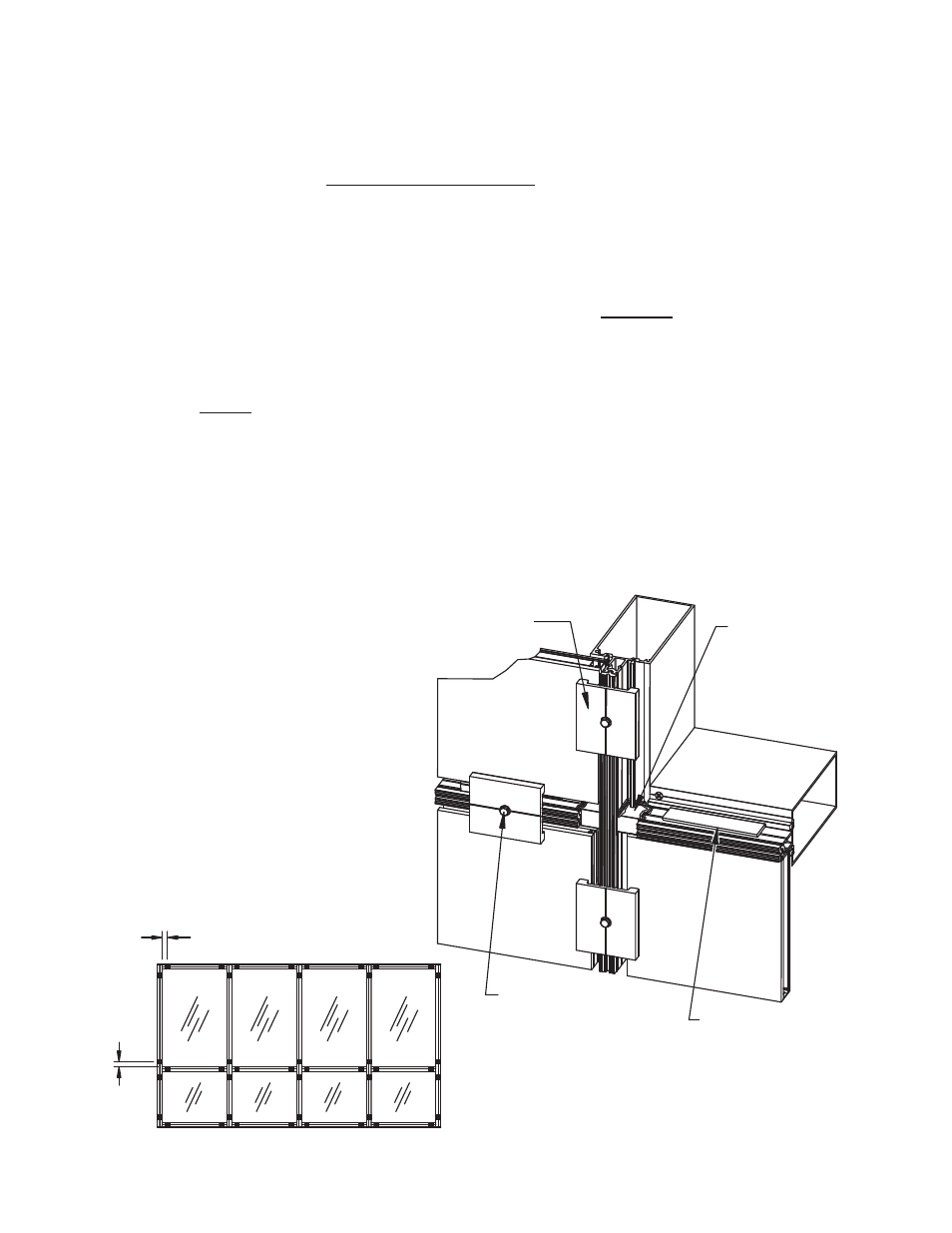

FIGURE 3.2a
Glazing Instructions
FIGURE 3.2b
Typical Location of Temporary
Glazing Retainers
GLASS SIZE CALCULATION
CAPTURED = D.L.O. PLUS 2.00" WIDTH & HEIGHT
