2.1 a. Prior to attaching horizontal members follow sealant instructions given in Detail 2.0b.
b. Cut FG-5185 Gasket to D.L.O. plus 1/4" for relaxation, then install on horizontals. (Skip step if Dry Glazed)
c. Slide Horizontal Member into opening from back to front. This will force sealant through
the attachment holes on horizontal member as shown in FIGURE 2.1a
d. Install (2) FS-118 Fasteners on each side of horizontal through the horizontal member face.
HW-701 Head
HW-710 Horizontal
HW-732
Roll Over Horizontal
HW-702 Sill
(Optional)
HW-533 Roll
Under Horizontal
(2) FS-118 Fasteners
Shear Block
Sealant

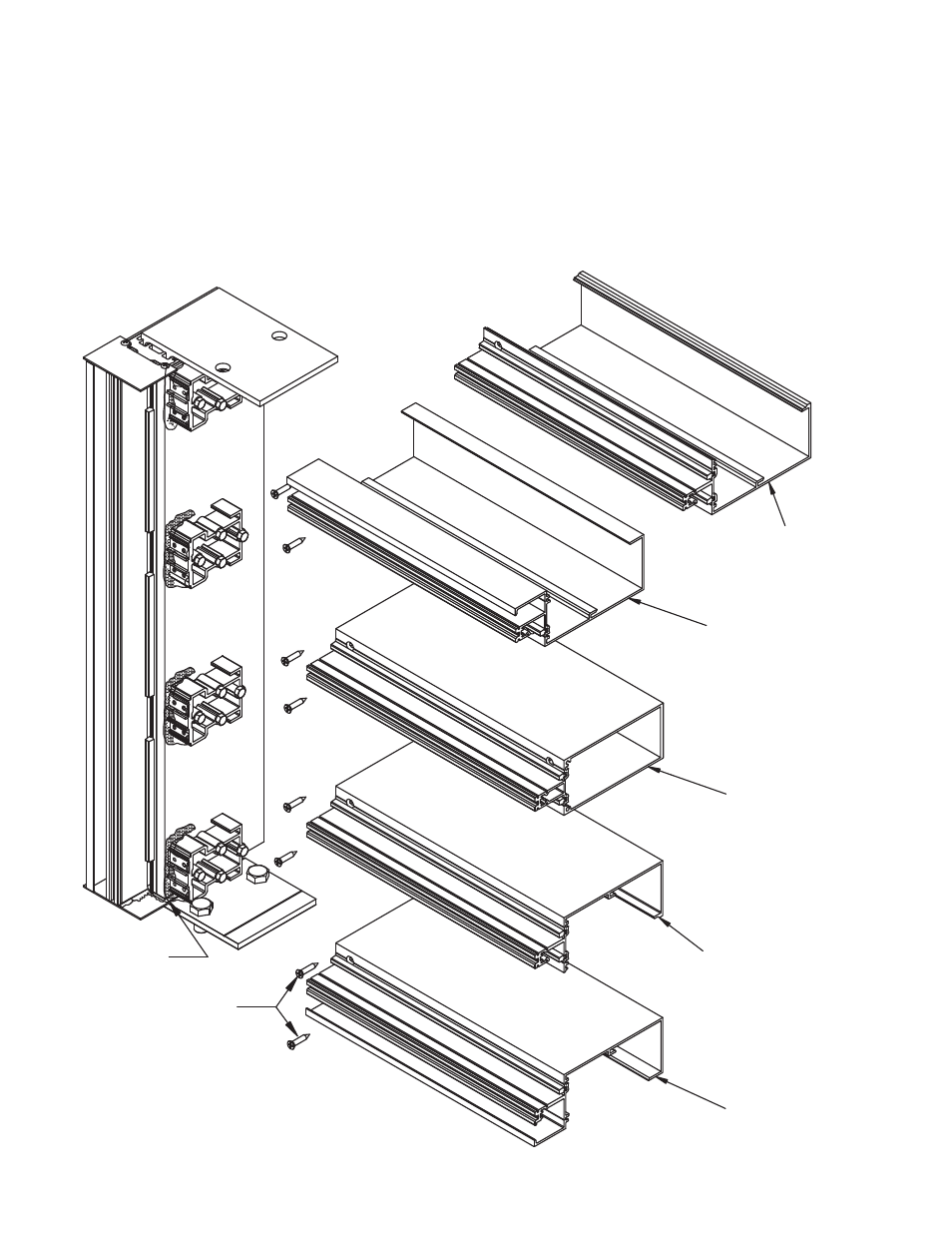

FIGURE 2.1a
HORIZONTAL MEMBER INSTALLATION
