Dimensions for table mounting – Kontron KBox B-101 Configuration Guide User Manual

Page 35

12. Technical Data

KBox B-101 – User’s Guide (Version 1.00)

12.2.3. Dimensions for Table Mounting

For sufficient air circulation, make sure that the ventilation openings of the chassis are not obstructed
(covered) by any objects.

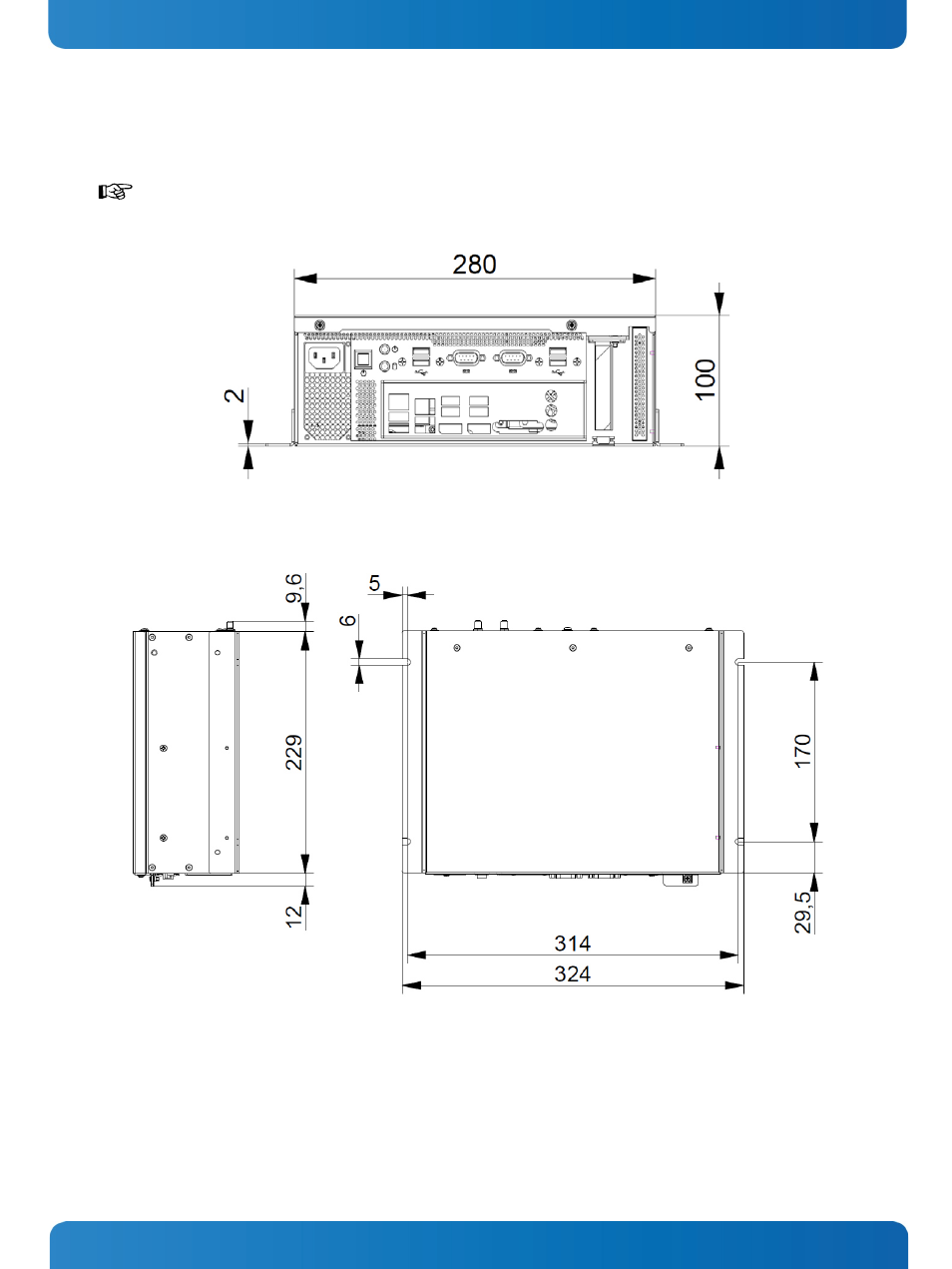

Fig. 27: Dimensions in the front view (table mounting)

Fig. 28: Dimensions in the side view (table mounting)
