10. Starting Up KBox B-101 – User’s Guide (Version 1.00)
10.
Starting Up
The rated voltage of the power supply must correspond with the voltage value on the type label.
10.1. AC Power Connection
The AC input connector (Fig. 9, pos. 1) is located on the front side of the KBox B-101.
The KBox B-101 can be connected to an AC supply circuit using an AC power cord (see Fig. 22).
Even when the system is turned off via the power button (Fig. 10, pos. 1) there is still a standby-voltage of
5 VSb on the SBC.
Use a power cord suitable for the mains power supply in your country.
Make sure that the mains power supply (power outlet) is properly grounded and that the power cord is in
perfect condition without any visible damage. An ungrounded power supply is not permissible.
AC input

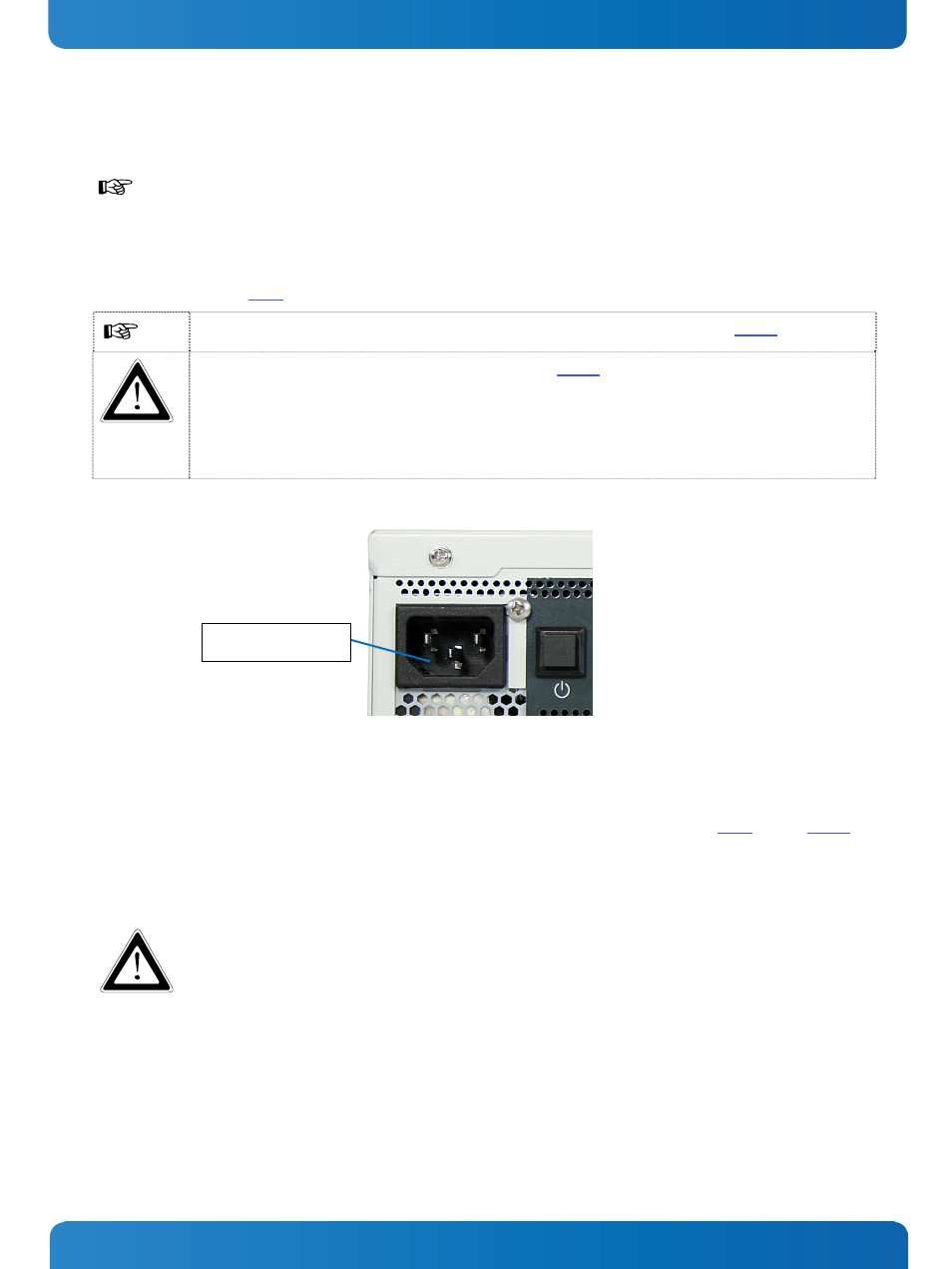

Fig. 22: AC input connector on the front side of the chassis
To connect the KBox B-101 to a corresponding AC main power supply, please perform the following steps:
1. Insert the corresponding connector of the supplied AC power cord into the AC input connector (Fig. 9, pos. 1, Fig. 22).
The AC input connector is located on the front side of the KBox B-101.
2. Connect the AC power cord to an appropriate AC mains socket.
The power cord is used as a disconnecting device (the unit is only completely disconnected from the
mains, when the power cord is disconnected either from the mains or the unit). Therefore, the outlet of
the AC power source must be located near to the device and be easily accessible.
