7. Product Description KBox B-101 – User’s Guide (Version 1.00)
7.1.3. Interfaces on the Front Side
1
3 5 4
2 1
7 6

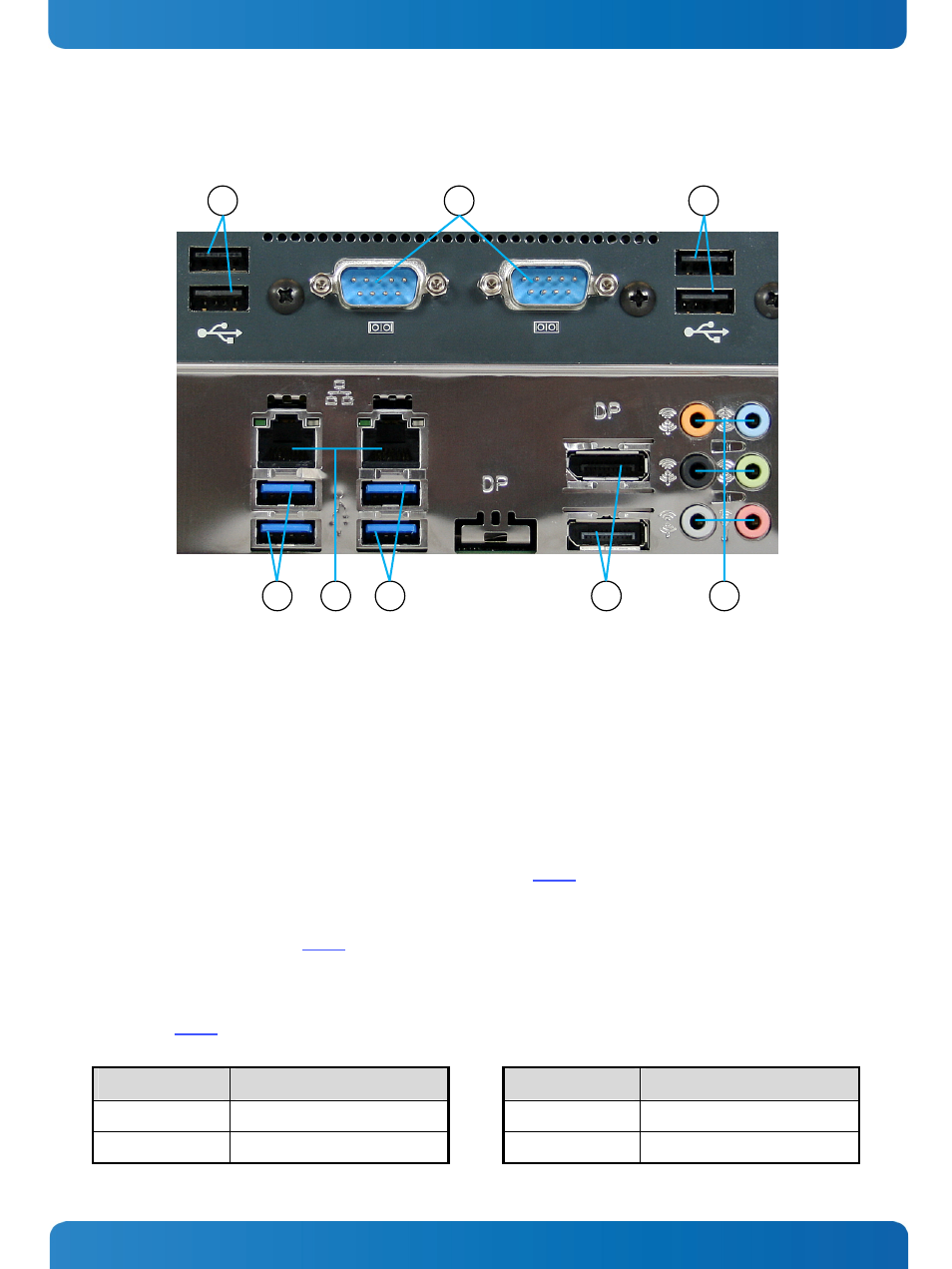

Fig. 11: External interfaces of the integrated motherboard
1
4x USB 2.0 port (USB4 - USB7)
2
2x serial port (COM1, COM2)
3
2x USB 2.0 port (USB2, USB3)
4
2x LAN port (RJ45) (10/100/1000Mbps)
5
2x USB 3.0 port (USB0, USB1)
6
2x DisplayPort Connector (DP0, DP1)
7
Audio connectors
7.1.3.1.
USB Ports
The system is equipped with six USB 2.0 ports and two USB 3.0 ports (Fig. 11, pos. 1, 3 and 5).
7.1.3.2.
Serial Ports (COM1, COM2)
The serial ports COM1 and COM2 (Fig. 11, pos. 2) consist of a 9-pin, RS232-configured D-SUB connectors that allow the
connection of serial peripherals.
7.1.3.3.
LAN Ports (ETH1, ETH2)
These ports (Fig. 11, pos. 4) consist of RJ45 connectors with integrated LEDs and support a transfer rate of
10/100/1000Mbps.
Left LED Color Link Status Right LED Color Link Speed
Off No Link Off 10 Base-T/100 Base-T
Green blinking Link is established Yellow 1000 Base-T
