9. Setting up the KBox B-101 KBox B-101 – User’s Guide (Version 1.00)
9.2.2. Brackets for Table Mounting
These brackets (Fig. 21) are used to mount the KBox B-101 to a table.
Table outside a fire enclosure is only allowed in horizontal position (2 operating positions). Inside a fire
enclosure, you may choose which side is facing up or down (4 operating positions). The two brackets are
symmetrical and can be mounted on either the left or right (see also subsection 12.2.2 “Dimensions for
Wall Mounting”).

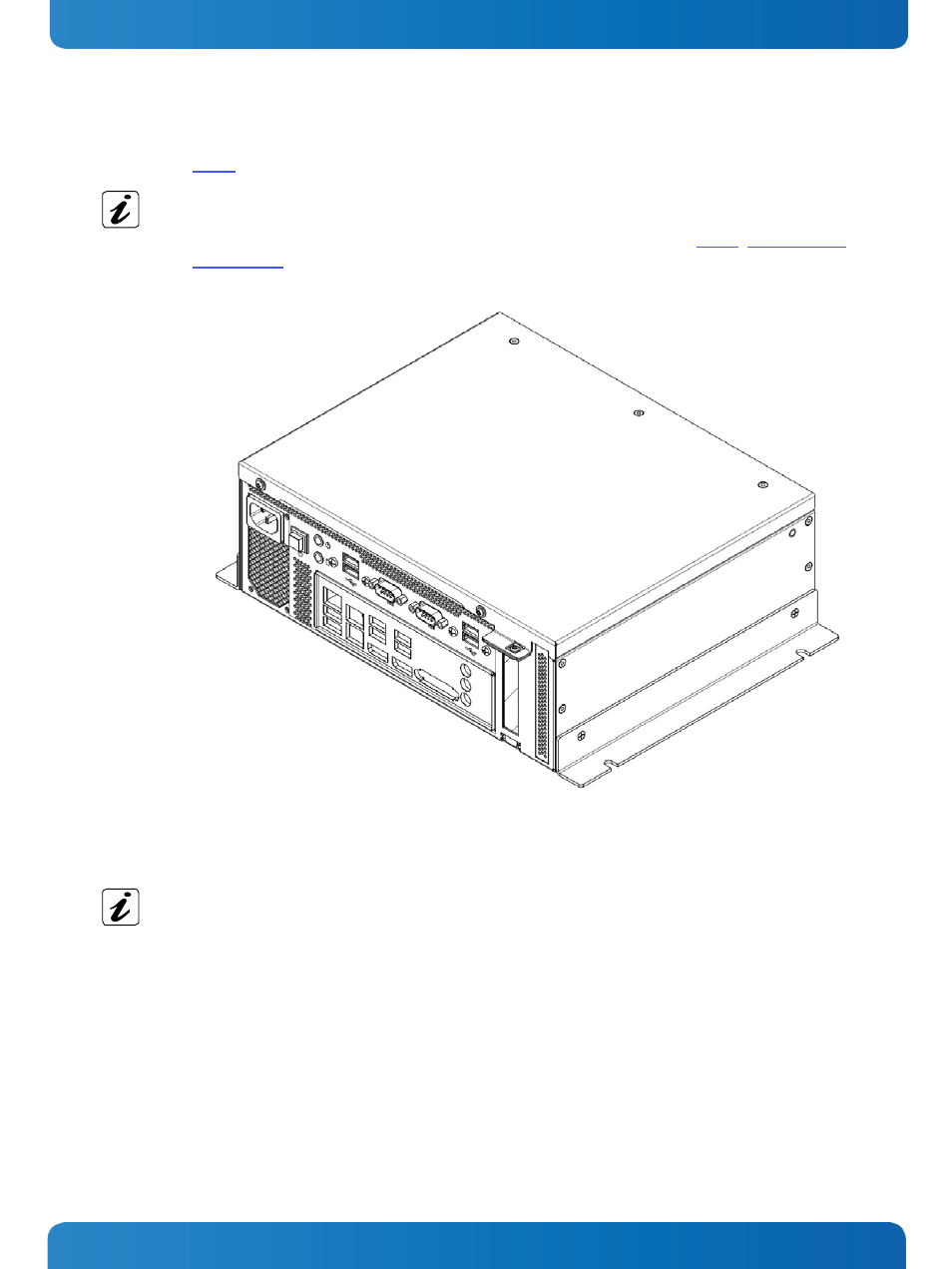

Fig. 21: KBox B-101 with brackets for table mounting installed
Table mounting (by using the corresponding brackets) is only possible without the rubber feet attached.
Rubber feet that are already attached to the chassis of the KBox B-101 (e.g. when adapting a desktop
version) must be removed before table mounting.
