12.2.2. Dimensions for Wall Mounting
For sufficient air circulation, make sure that the ventilation openings of the chassis are not obstructed
(covered) by any objects. The wall mounting brackets provide enough space between the wall and the
chassis (for the fan on the rear side of the chassis) (see Fig. 26).

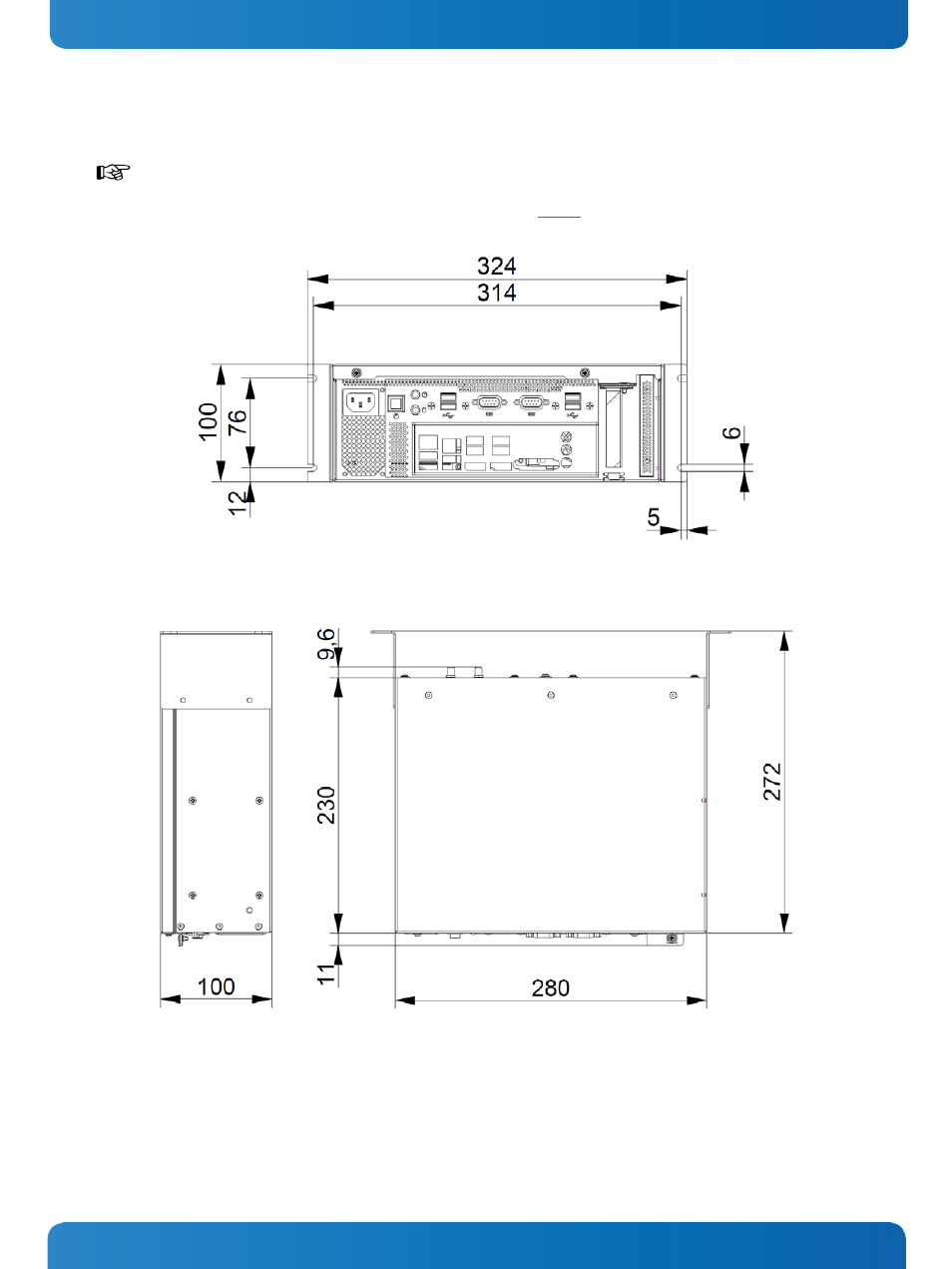

Fig. 25: Dimensions in the front view (wall mounting)
Fig. 26: Dimensions in the side view (wall mounting)
