12. Technical Data KBox B-101 – User’s Guide (Version 1.00)
12.1. Electrical Specifications
The corresponding electrical specifications for your KBox B-101 can be found on the type label of the system. The type
label is located on the left side of the unit (refer to Fig. 15).
12.2. Mechanical Specifications
12.2.1. KBox B-101 Desktop Dimensions
For sufficient air circulation, make sure that the ventilation openings of the chassis are not obstructed
(covered) by any objects.

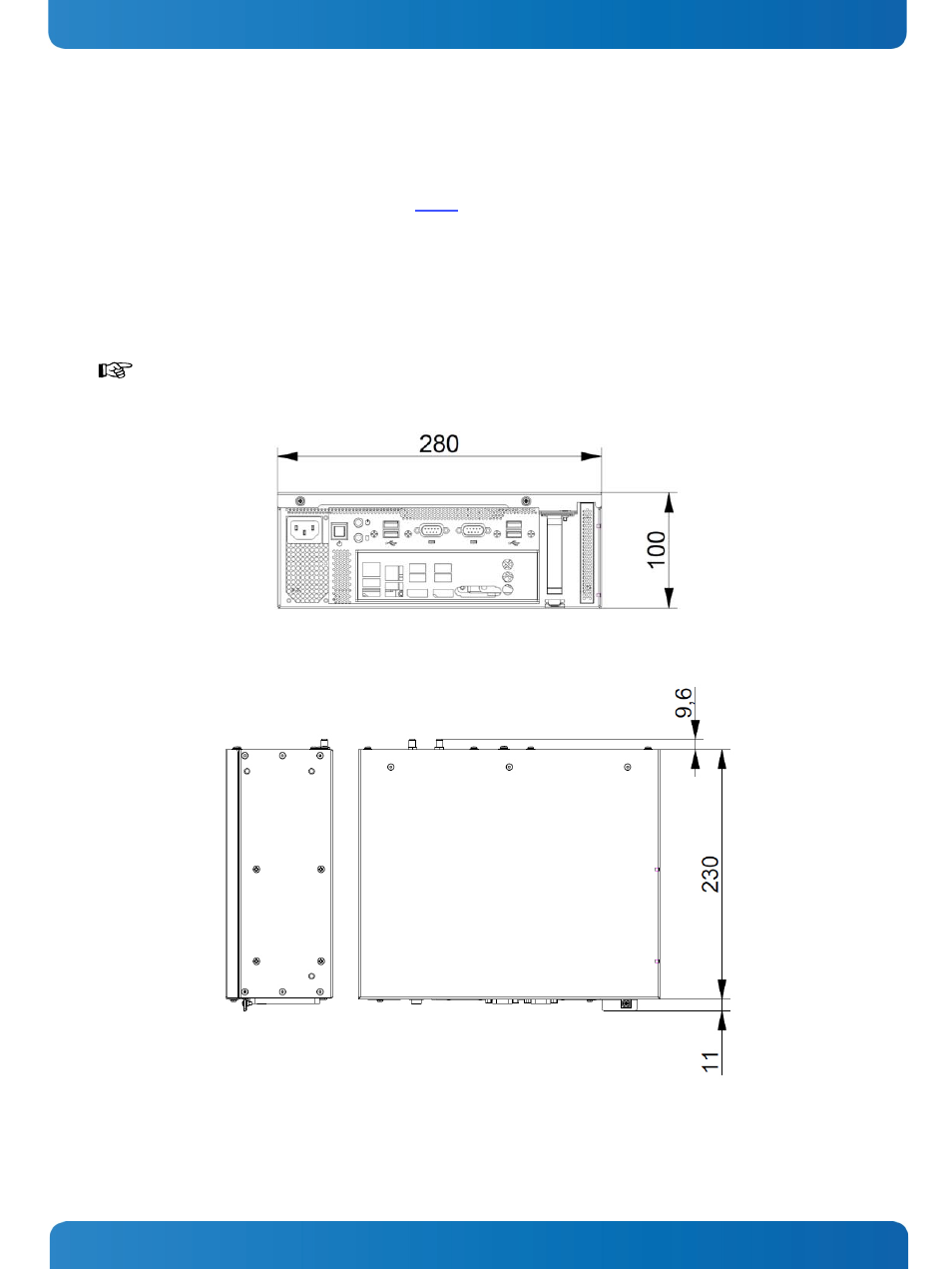

Fig. 23: Dimensions in the front view (desktop version)
Fig. 24: Dimensions in the side view and top view (desktop version)
