2-22
X9SCM/X9SCM-F/X9SCL/X9SCL-F/X9SCL+-F User's Manual

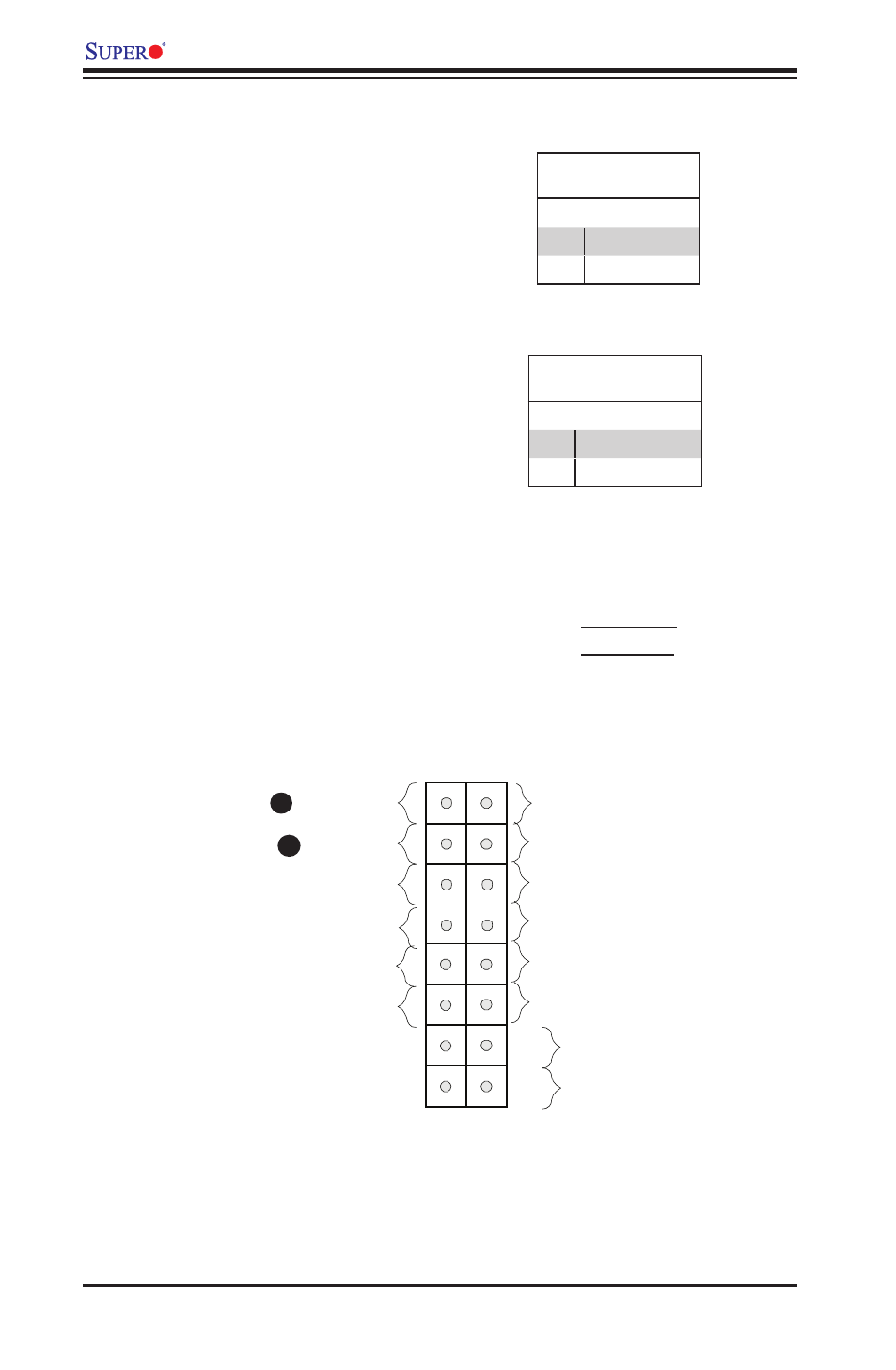

Front Control Panel Pin Definitions
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin definitions.
Power LED
Pin Definitions (JF1)
Pin# Definition
15 3.3V/vcc
16 Ground
A. PWR LED
B. HDD LED
HDD LED
The HDD LED connection is located
on pins 13 and 14 of JF1. Attach a
cable here to indicate the status of
HDD-related activities, including IDE,
SATA activities. See the table on the
right for pin definitions.
HDD LED
Pin Definitions (JF1)
Pin# Definition
13 3.3V/vcc
14 HD Active
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
UID LED
Ground
Ground
Power Fail LED
NIC2 LED
LED_Anode+
LED_Anode+
A
B
