X9SCM/X9SCM-F/X9SCL/X9SCL-F/X9SCL+-F User's Manual
1. VGA
Video Connector
A Video (VGA) connector is located
next to the COM Port on the I/O
backpanel. This connector is used
to provide video and CRT display.

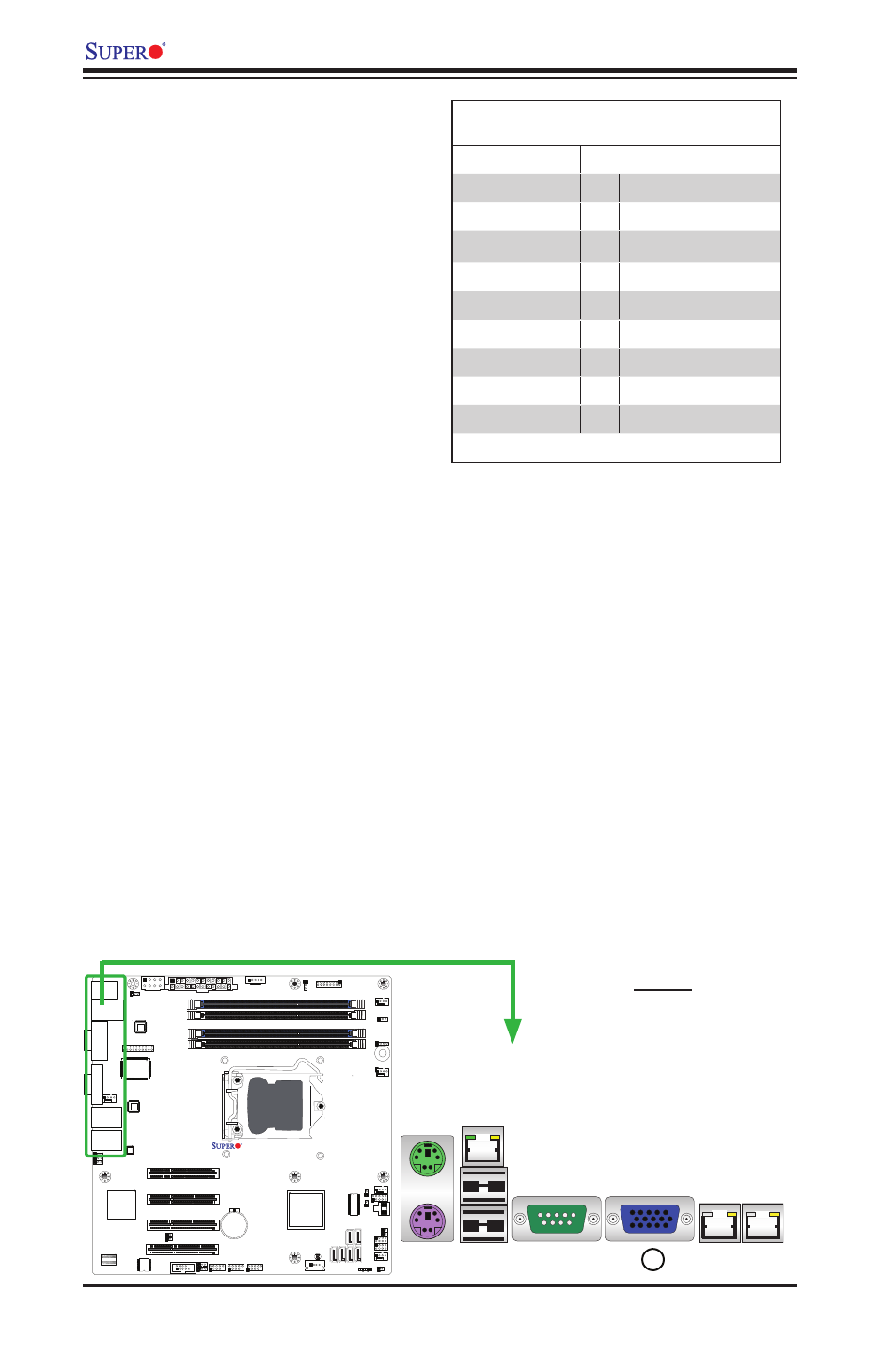

Refer to the board layout below for
the location.
VGA/CRT Pin
Definitions
Pin# Definition Pin# Definition
1
Red
10
Ground
2
Green
11
NC
3
Blue
12
MS1: SDA (DDC Data)
4
NC
13
HSYNC
5
Ground
14
VSYSNC
6
Ground
15
MS3: SCL (DDC CLK)
7
Ground
16
Case
8
Ground
17
Case
9
5V
NC= No Connection
1
X9SCM/X9SCL(-F)
Rev.1.0
