2-16
X9SCM/X9SCM-F/X9SCL/X9SCL-F/X9SCL+-F User's Manual
ATX PS/2 Keyboard/Mouse
Ports

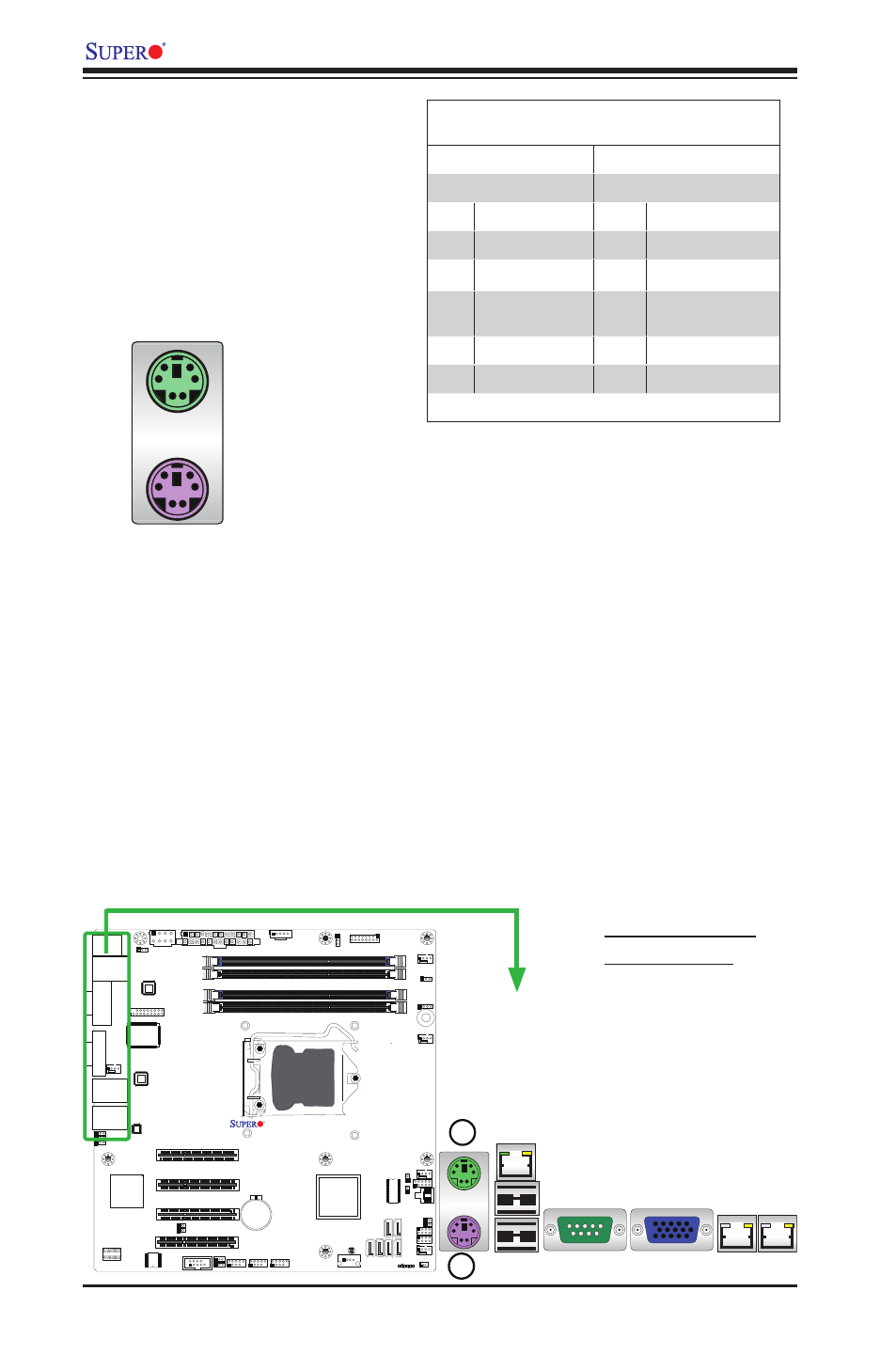

The ATX PS/2 keyboard and
PS/2 mouse are located next to
the Back Panel USB Ports 0/1 on
the motherboard. See the table at
right for pin definitions.
PS/2 Keyboard/Mouse Pin
Definitions
PS2 Keyboard PS2 Mouse
Pin# Definition Pin# Definition
1 KB Data 1 Mouse Data
2 No Connection 2 No Connection
3 Ground 3 Ground
4 Mouse/KB VCC
(+5V)
4 Mouse/KB VCC
(+5V)
5 KB Clock 5 Mouse Clock
6 No Connection 6 No Connection
VCC: with 1.5A PTC (current limit)
1. Keyboard (Purple)
2. Mouse (Green)
Keyboard
Mouse
