7 jumper settings, Explanation of jumpers, Chapter 2: installation – Kontron X9SCL+-F User Manual

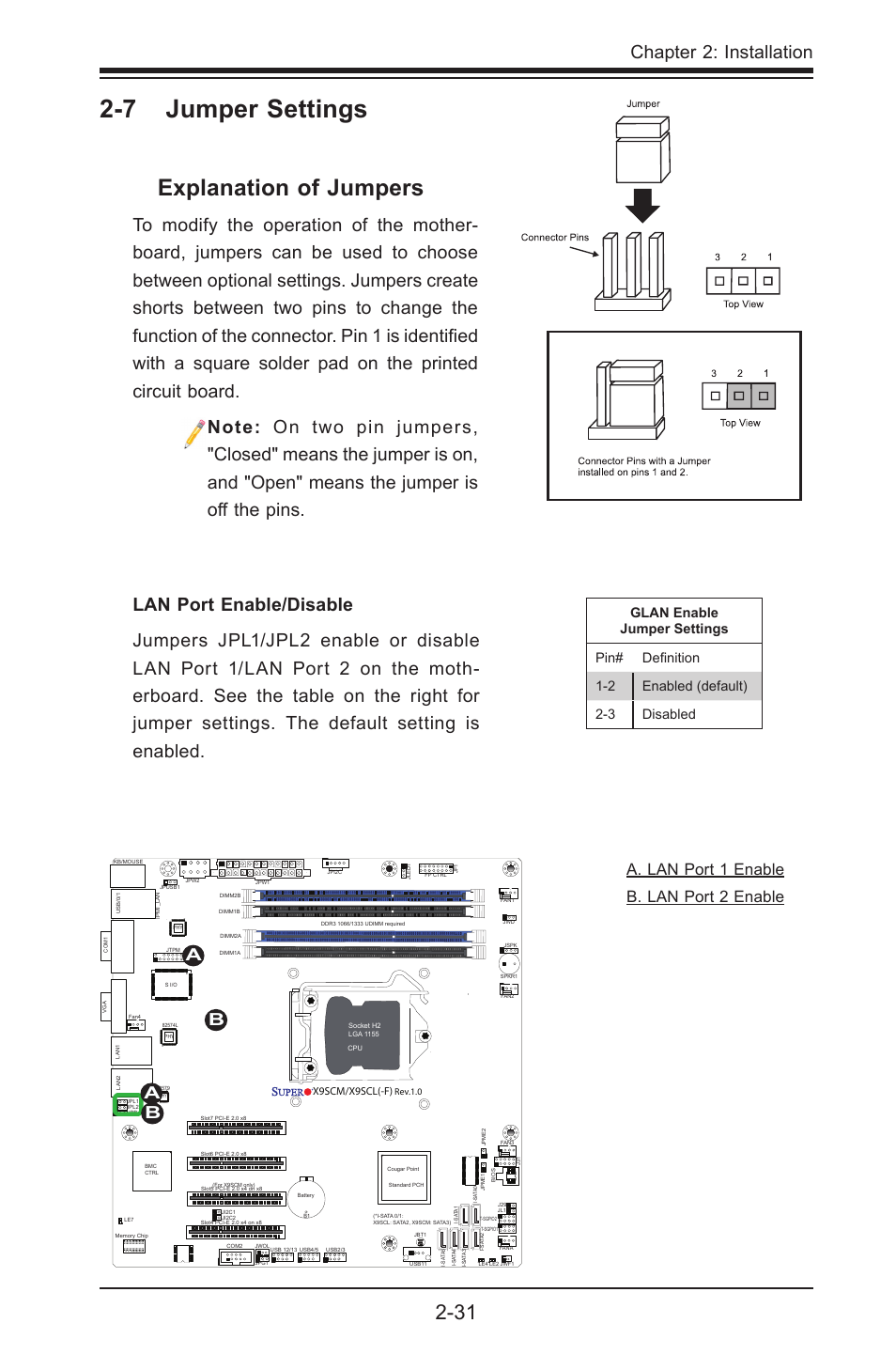

Page 57: A. lan port 1 enable b. lan port 2 enable, Ab a b, X9scm/x9scl(-f)
