ETX-DC®/ BIOS Operation
74

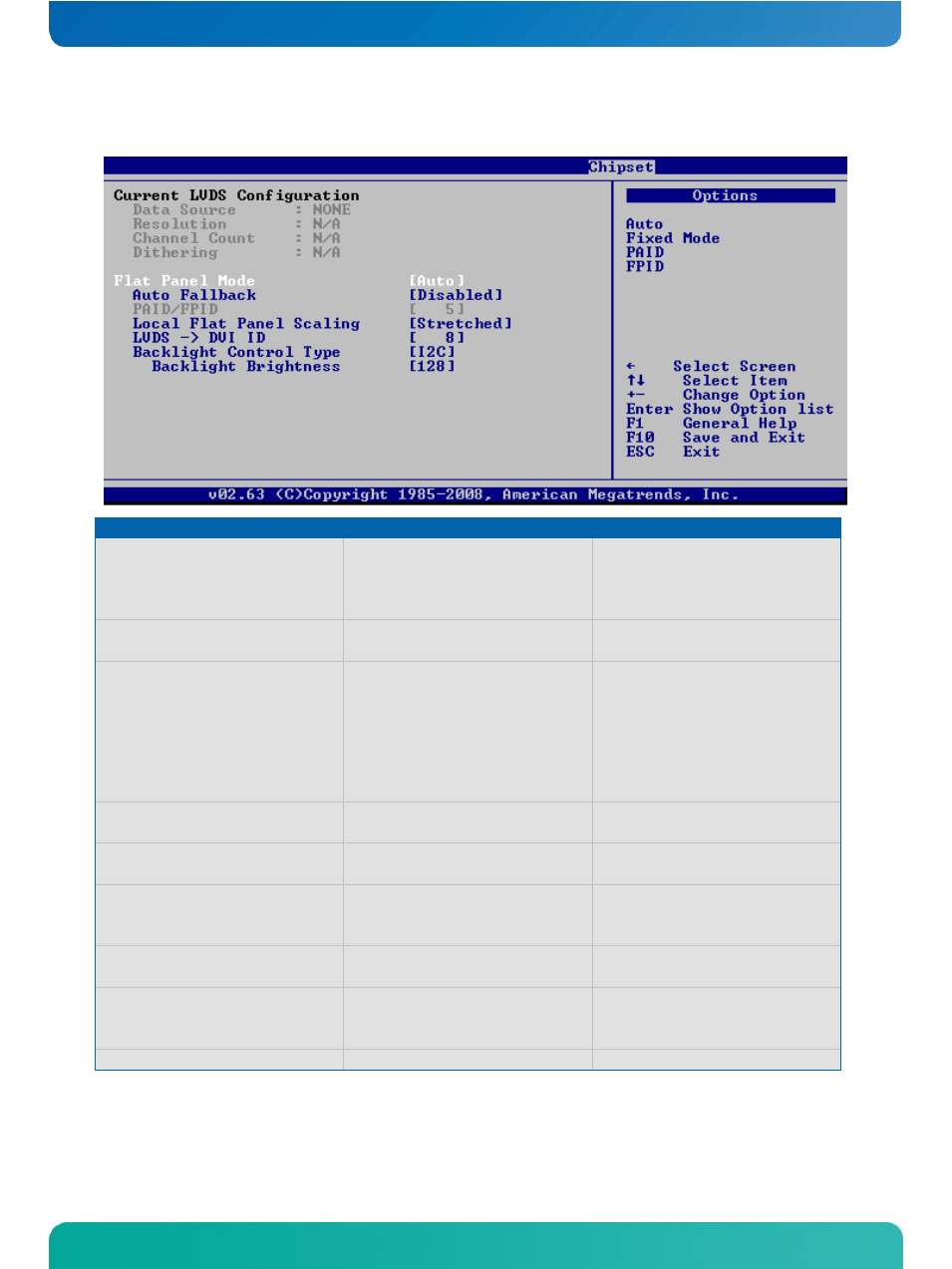

Internal LVDS Configuration
Feature Option Description
Flat Panel Mode Auto
Fixed Mode
PAID
FPID Auto: checks if there is an external JILI
EEPROM, if not see Auto Fallback
Fixed Mode: uses Flat Panel Type
PAID/FPID: uses the PAID/FPID
Auto Fallback Fixed Mode
Disabled Select what happens, when no valid
EEPROM content is found
Flat Panel Type
(is only valid in Fixed Mode and when
set to Auto and no valid JILI EEPROM
content was found) VGA 640x480
SVGA 800x600
XGA 1024x768
SXGA 1280x1024
…
WXGA 1366x768
WXGA 1280x800 Select the flat panel resolution
PAID/FPID (only valid in PAID or FPID
mode) Enter ID Enter the PAID or the FPID
Channels Single Channel
Dual Channel Selects the number of channels to drive
the display
Local Flat Panel Scaling Streched
Centered
Disabled Selects the scaling mode of the LVDS
interface
LVDS -> DVI ID 8
5 2x18
1x18
Backlight Control Type None/External
I2C
PWM Selects the mode of backlight control
Backlight Brightness 0-255 Selects the Backlight default brightness
