Page 36: 8 sdvo connector j9
ETX-DC®/ ETX® Connectors
31
4.8 SDVO Connector J9

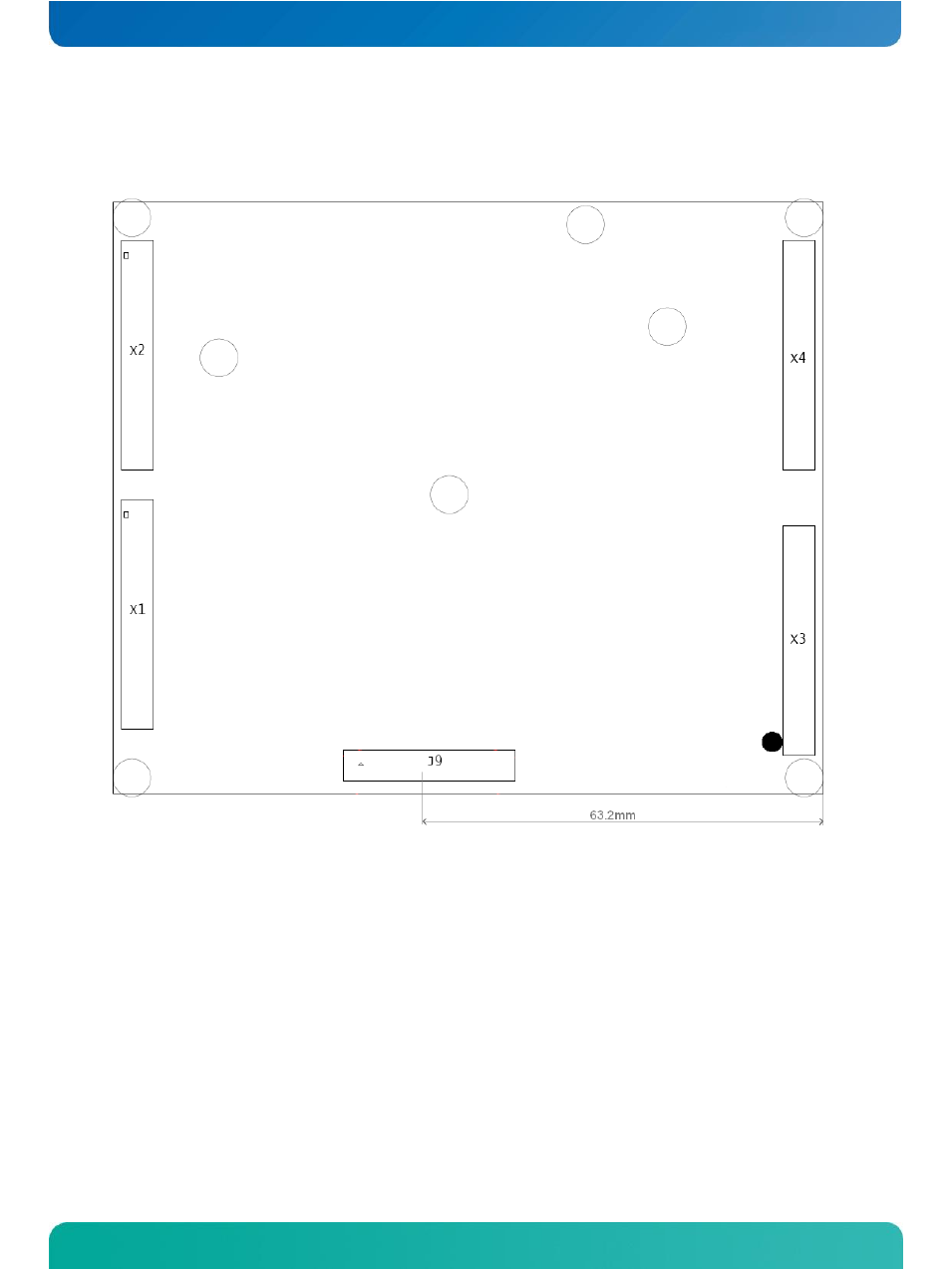

4.8.1 Location of the connector
The feature connector J9 is on the bottom side of the module on the edge.
4.8.2 SDVO Output
The ETX®-DC Serial Digital Video Out port is integrated in the Intel® 945GSE northbridge. It has the following
features:
»
Serial Digital Video Out Port (SDVOB only) support
»
One 12-bit channel
»
The SDVO B port can drive a variety of SDVO devices (TV-Out Encoders, TMDS and LVDS transmitters, etc.)
