ETX-DC®/ Design Considerations
36
6.2 Heat spreader
Documentation of ETX-DC® Heatspreader and Cooling Solutions are provided at the customer section of the Kontron
Website.
6.3 ETX-DC® onboard fan connector
This section describes how to connect a fan to the connector located directly on the ETX®-DC. With certain BIOS-
settings it is possible to control the fan depending on the Active Trip Point temperature. The fan switches on/off
depending on the adjusted Active Trip Point temperature. In order for this feature to function properly an ACPI
compliant OS is necessary.
Note: The ETX®-DC BIOS supports only turning the onboard FAN ON/OFF. For additional support 3rd party software
is necessary.

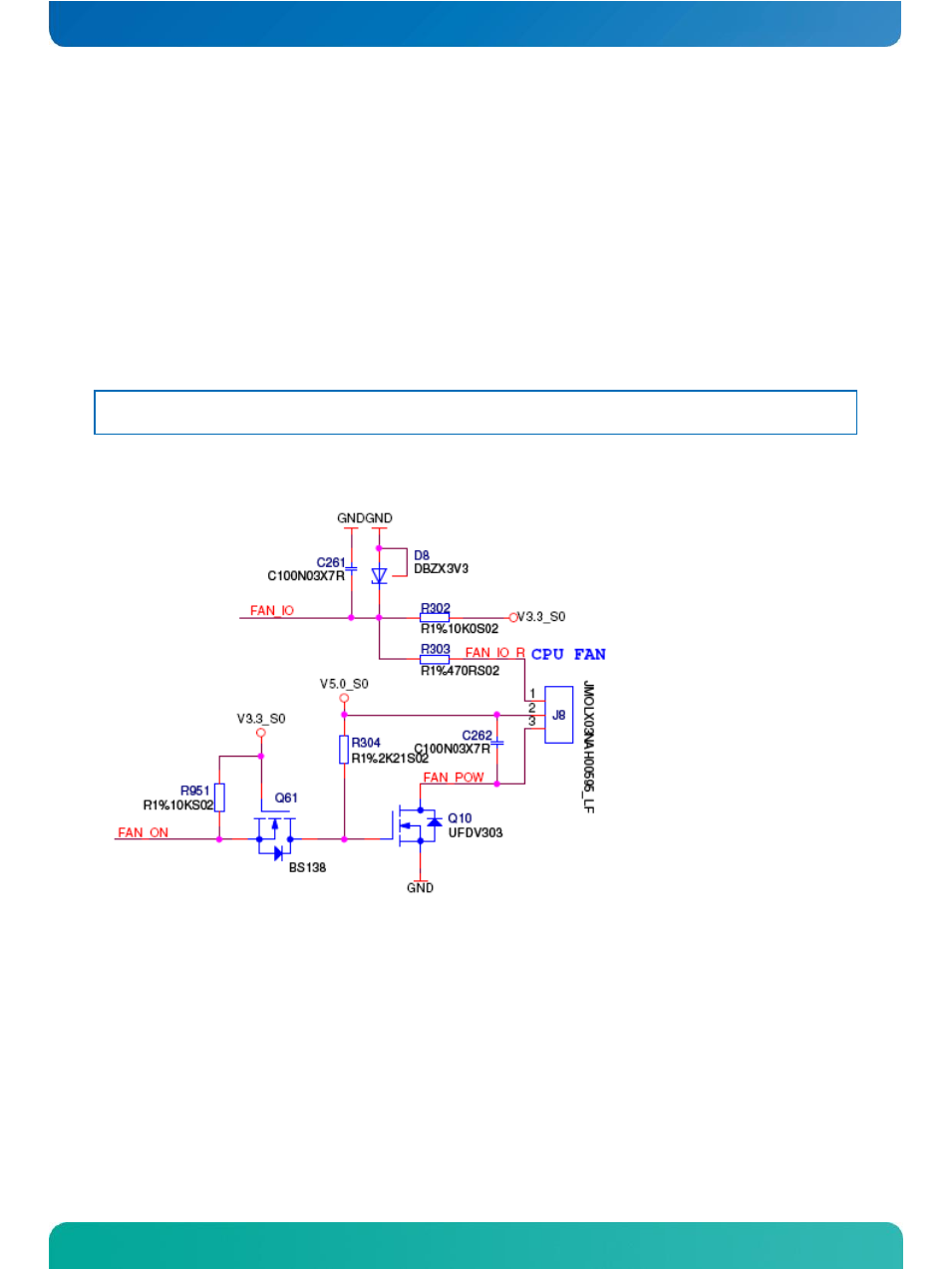

6.3.1 Schematic of fan control
»
Part number (Molex) J8: 53261-0390
»
Mates with: 51021-0300
»
Crimp terminals: 50079-8100
